Yamaha F80TLRZ - F50 Tiller Handle Installation Instructions

6-33
Outboard Rigging Guide - 2001 F40 4-Cyl., F/T50 Tiller Handle Kit
F50 Tiller Handle Installation Instructions
Preparation for Remote Control Model

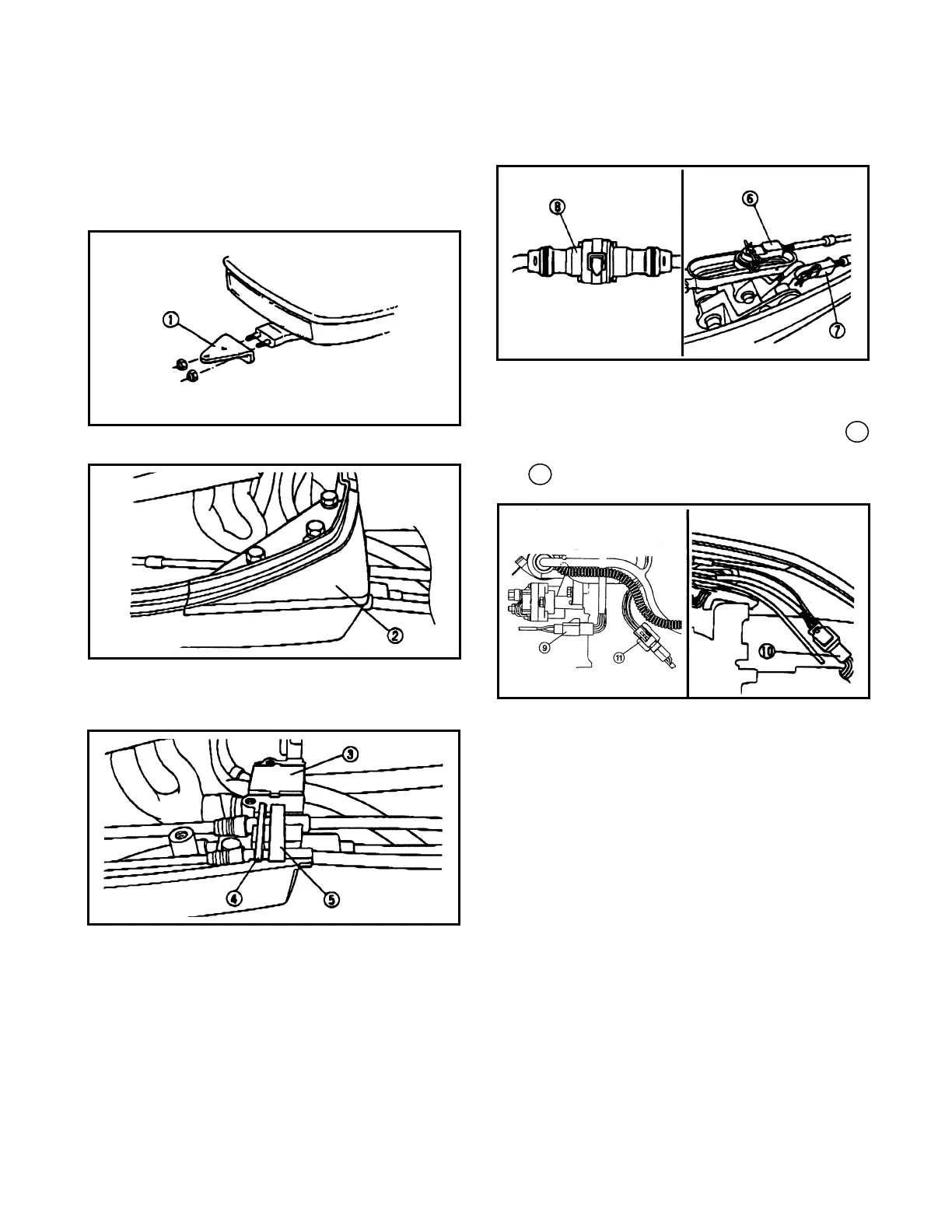

1. Remove the steering hook 1.
2. Remove the fitting plate 2.
3. Remove the grommet 3, cable stopper 4,
and rubber seal 5.
4. Remove the shift cable joint 6 and throttle
cable joint 7.
5. Disconnect the wire harness coupler 8.
6. Disconnect the overheat, oil warning lead
coupler 9, the trim sender lead coupler 10,
and the power trim/tilt switch leads coupler
11.
10
11
