7-6

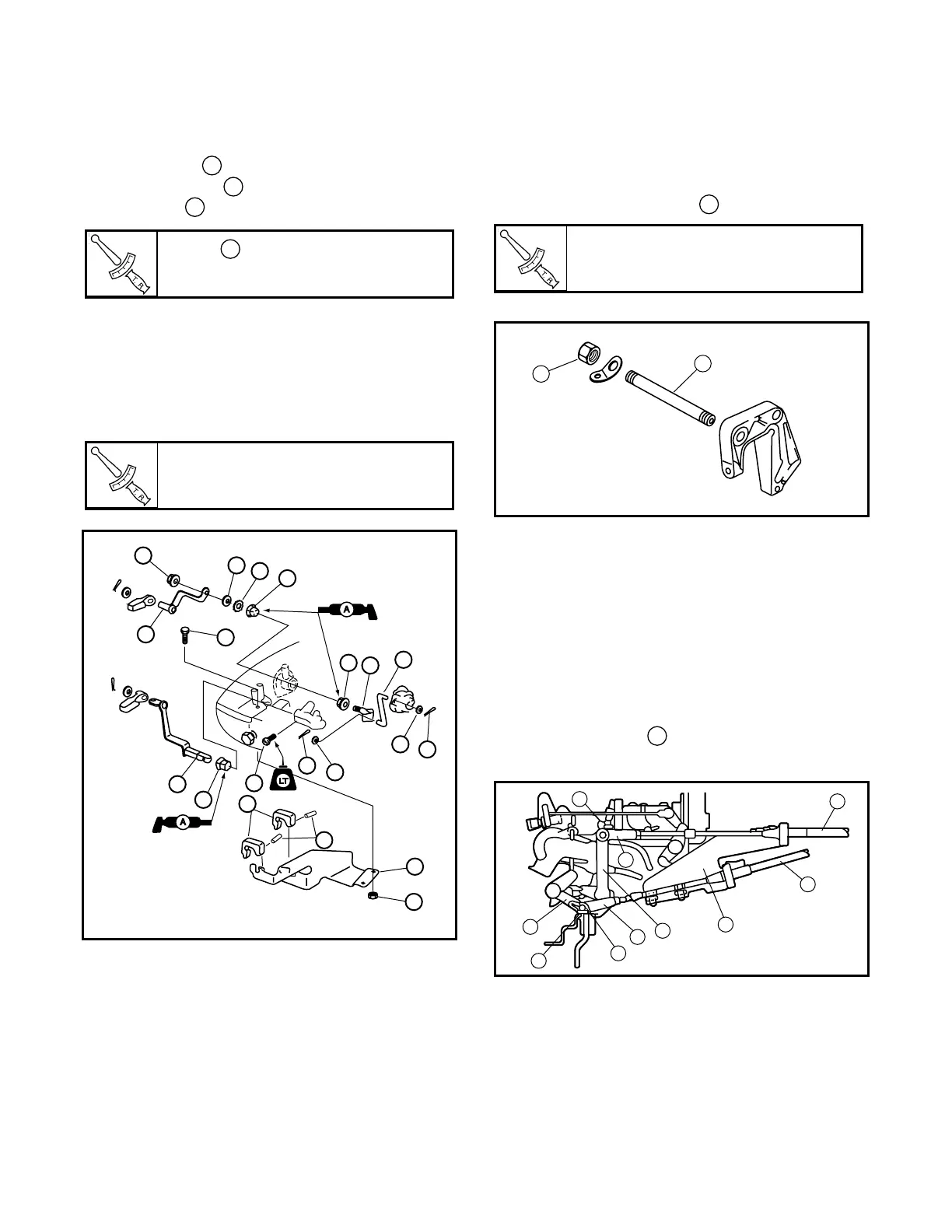

Outboard Rigging Guide - 2001 9.9/15 (2-Stroke) Remote Control Attach. Kit
3. Install:
• Bushing
• Shift Lever
• Screw
4. Install:
• Cable Clamp 4
• Spring Pin 5
• Remote Control Bracket 3
• Bolt 6
• Nut 7
Clamp Bracket Bolt
1. Replace:
• Clamp Bracket Bolt
Remote Control Cable
1. Install:
• Cable End 8
2. Connect:
• Shift Cable a
• Throttle Cable b
• Cable End 8
• Plane Washer
• Clip 9
Screw Tightening Torque:
3.5 Nm (0.35 m•kg)
15
11
12
16
17
16
17
21
4
22
20
5
3
7
18
6
14
13
12
19
242
22
20
21
21
Bolt
66
Tightening Torque:
8 Nm (0.8 m•kg)
23
Nut
aa
Tightening Torque:
13 Nm (1.3 m•kg)
a
23
8
18
10
9
8
9
8
20
3
b
10
