7-7

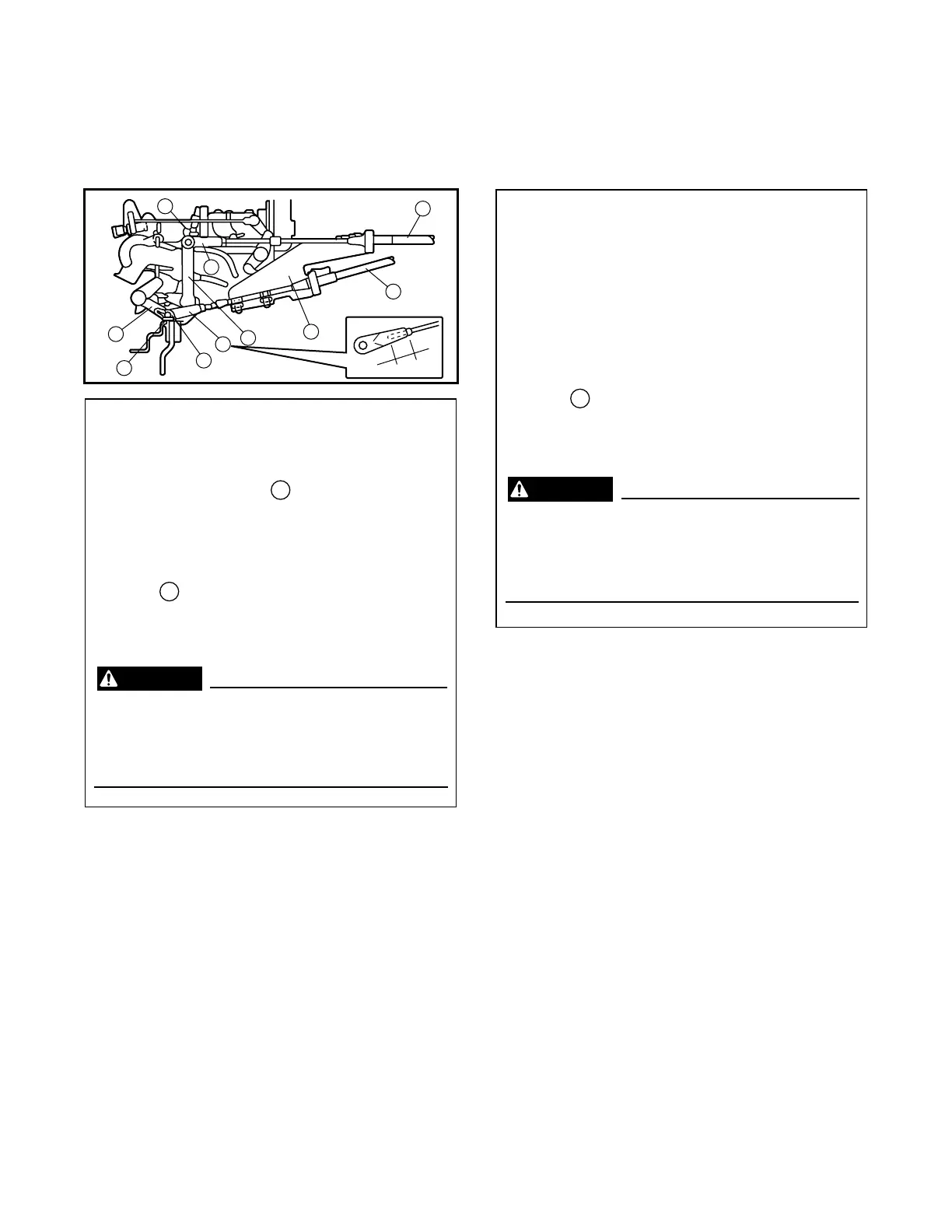

Outboard Rigging Guide - 2001 9.9/15 (2-Stroke) Remote Control Attach. Kit
3. Adjust:
• Shift cable joint position
4. Adjust:
• Throttle cable joint position
8
18
10
9
8
9
8
20
3
b
8mm ( 0.31 in)
A djustment S tep:
• Place the remote control lever of the remote
control box in Neutral Position.
• Place the shift lever in Neutral position.
• Install the shift cable a to the remote con-
trol bracket 3.
• Adjust the position of the cable end 8 until
its hole aligns with the set pin of the shift
lever .
• Insert the clip 9 from the upside of the set
pin.
• T he cable end
88
should be screwed in
more than 8mm ( 0.31 in) .
• T he clip
99
should be installed from the
up side as shown in the illustration.
WARNING
20
20
A djustment S tep:
• Place the remote control lever of the remote
control box in Neutral Position.
• Install the throttle cable 6 to the remote
control bracket 3.
• Place the throttle control grip to the fully
closed position.
• Adjust the position of the cable end 8 until
its hole aligns with the set pin of the throttle
lever .
• Insert the clip 9 from the upside of the set
pin.
• T he cable end
88
should be screwed in
more than 8mm ( 0.31 in) .
• T he clip
99
should be installed from the
up side as shown in the illustration.
WARNING
18
