Yamaha F80TLRZ - F9.9;T9.9 (4-Stroke) Remote Control Attachment Kit

7-8
Outboard Rigging Guide - 2001

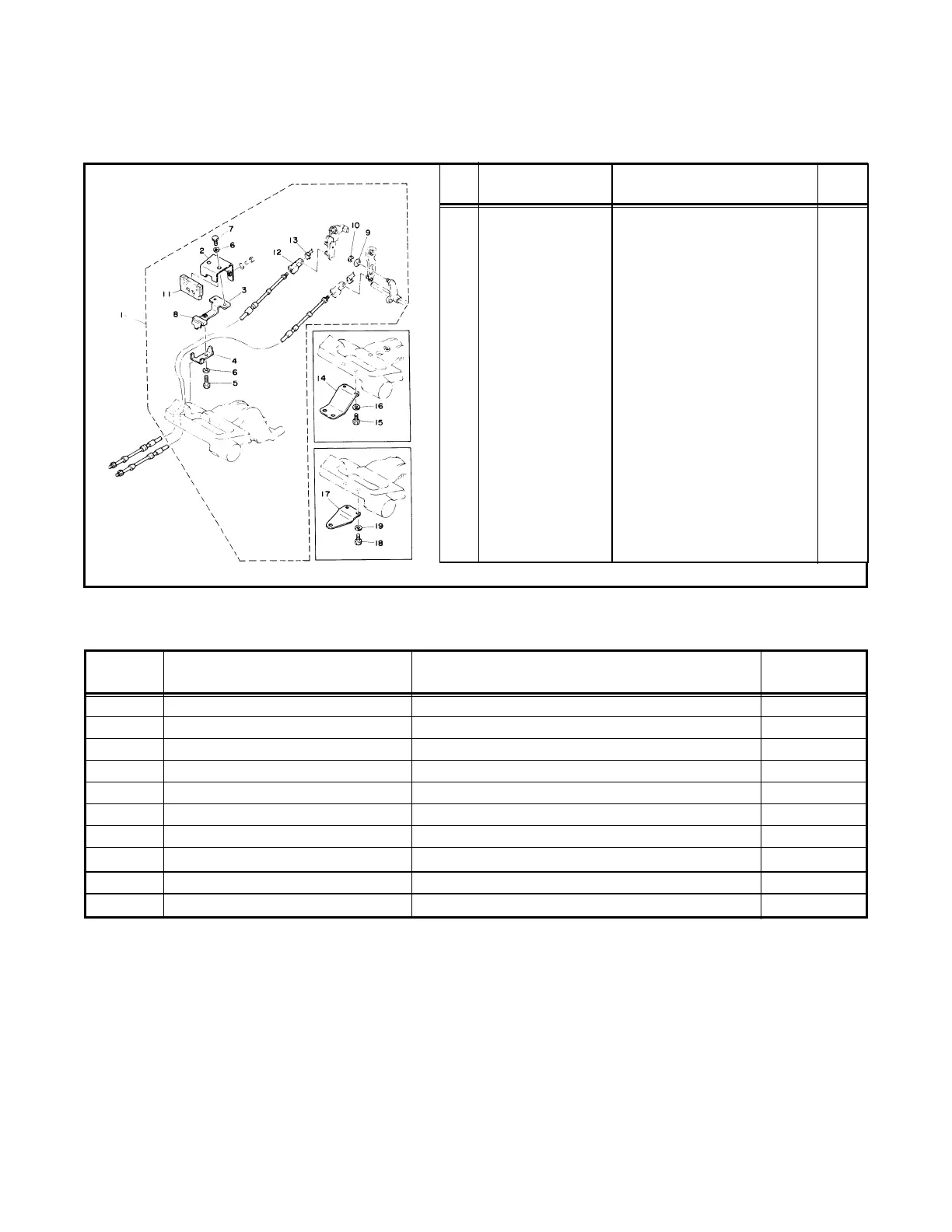

F9.9/T9.9 (4-Stroke) REMOTE CONTROL ATTACHMENT KIT (6G8-48501-03-00)
REF
NO PART NUMBER DESCRIPTION QTY.
1 Remote Control Attach Assy 1
2 6G8-48531-51-00 • Remote Control Bracket 1 1
3 6G8-48532-50-00 • Remote Control Bracket 2 1
4 6G8-48538-50-00 • Cable Clamp 1 1
5 97395-06030-00 • Bolt 1
6 92990-06600-00 • Plate Washer 3
7 97395-06012-00 • Bolt 2
8 6G8-48565-50-00 • Grommet 1
9 90387-06M73-00 • Collar 1
10 93430-04M03-00 • Circlip 1
11 6G8-48351-51-00 • Rubber Seal 1
12 6G8-26363-00-00 • Cable End 1
13 6G8-26364-00-00 • Cable End 2 1
14 6G8-48511-00-00 • Steering Hook 1
15 97395-06016-00 • Bolt 2
16 92990-06600-00 • Plate Washer 2
17 6G8-48511-10-00 • Steering Hook 1
18 97395-06106-00 • Bolt 2
19 92990-06600-00 • Plate Washer 2
• Component parts
Additional Parts Required
• Component Parts

Rope Type
* Electric Model Only ✥ Ball Post Type
REF
NO. PART NUMBER DESCRIPTION QTY.
1 • 6G8-82570-02-00 • Switch Panel Assembly* 1
2 • 6G8-82590-00-00 • Wire Harness* 1
3 • 688-82586-51-00 • Extension Harness (16.5 ft)* 1
4 • 701-48101-50-00 • 701 Remote Control Box 1
5 • 6G8-26363-00-00 • Wire End 1 2
6 • 6G8-26364-00-00 • Wire End 2 2
7 • 6G8-48511-00-00 • Steering Hook

1
8 • 97095-06016-00 • Bolt

✥ 1
9 • 97990-06600-00 • Washer

✥ 1
10 • 6G8-48511-10-00 • Steering Hook ✥ 1
