Yamaha F8A - Components; Components Diagram

Components

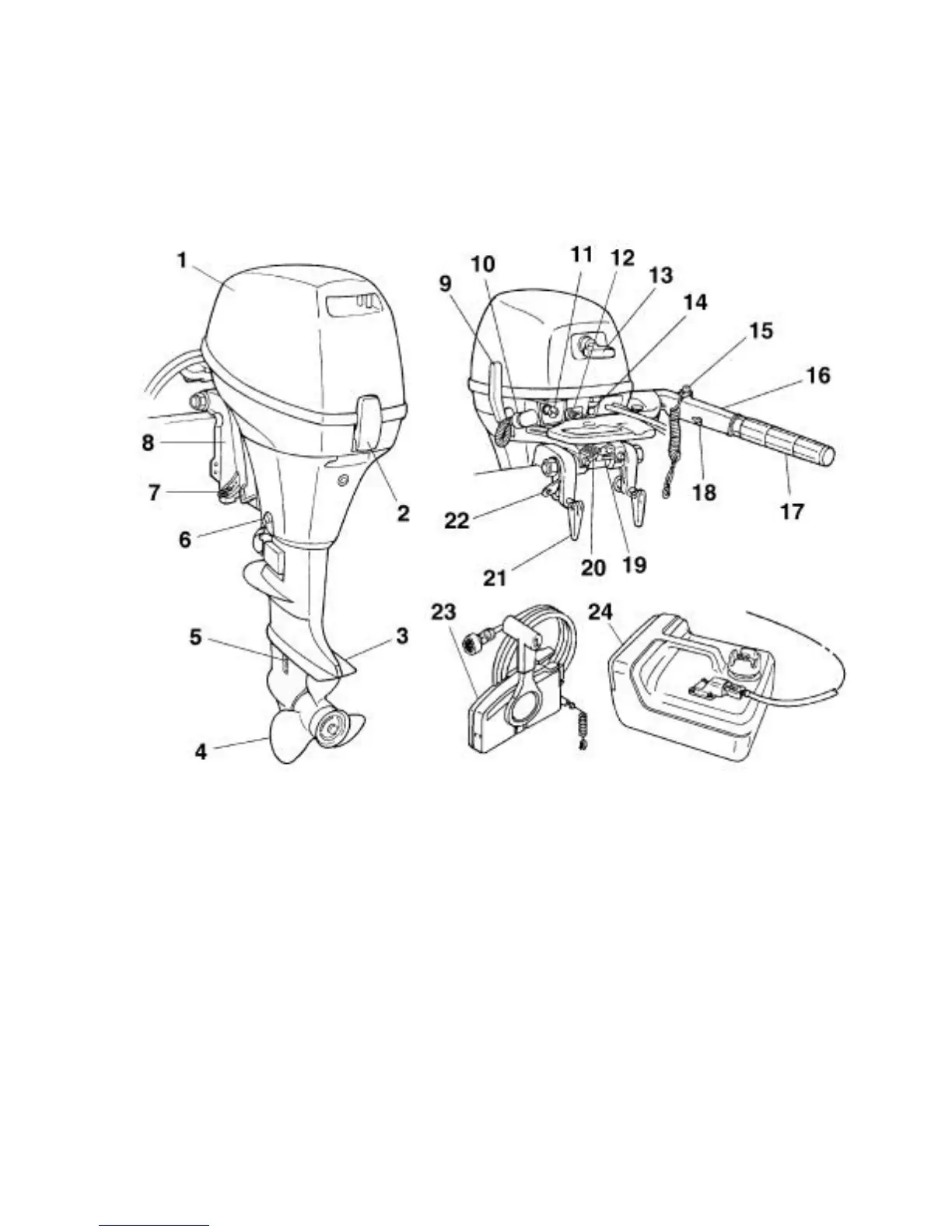

Components diagram
TIP:
* May not be exactly as shown; also may not be included as standard equipment on all models
(order from dealer).
FPP8A; FPP9.9A
1. Top cowling 16.Tiller handle*
2. Cowling lock lever 17.Throttle grip*
3. Anti-cavitation plate 18.Throttle friction adjuster*
4. Propeller 19.Tilt lock lever
5. Cooling water inlet 20.Steering friction adjuster*
6. Drain screw 21.Clamp screw
7. Trim rod 22.Restraint cable attachment
8. Clamp bracket 23.Remote control box (side mount type)*
9. Gear shift lever* 24.Fuel tank
10.Flushing device
11.Choke knob
12.Fuel joint
13.Manual starter handle*
14.Alert indicator
15.Engine stop button/Engine shut-off switch*
