Indicator lights and warning
light
EAU11033
Turn signal indicator lights “ ”
and “”
Each indicator light will flash when its
corresponding turn signal lights flash.
EAU11061
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU37612
Gear position indicator lights “1” “2”
“3”, and “4”
The respective indicator light comes
on when the transmission is in the 1st,
2nd, 3rd or 4th gear position.
EAU11081
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU85130
Engine trouble warning light “ ”
This warning light comes on or flashes
if a problem is detected in the engine.
If this occurs, have a Yamaha dealer
check the vehicle as soon as possible.
TIP
When the vehicle is turned on, this light
should come on for a few seconds and
then go off. Otherwise, have a Yamaha
dealer check the electrical circuit.
EAUU2111
Battery voltage warning light “ ”
This warning light comes on when the
battery voltage gets low. If this occurs,
have a Yamaha dealer check the bat-
tery for charging.
TIP
When the vehicle is turned on, the light
will come on for a few seconds, and
then go off. Otherwise, have a Yamaha
dealer check the electrical circuit.

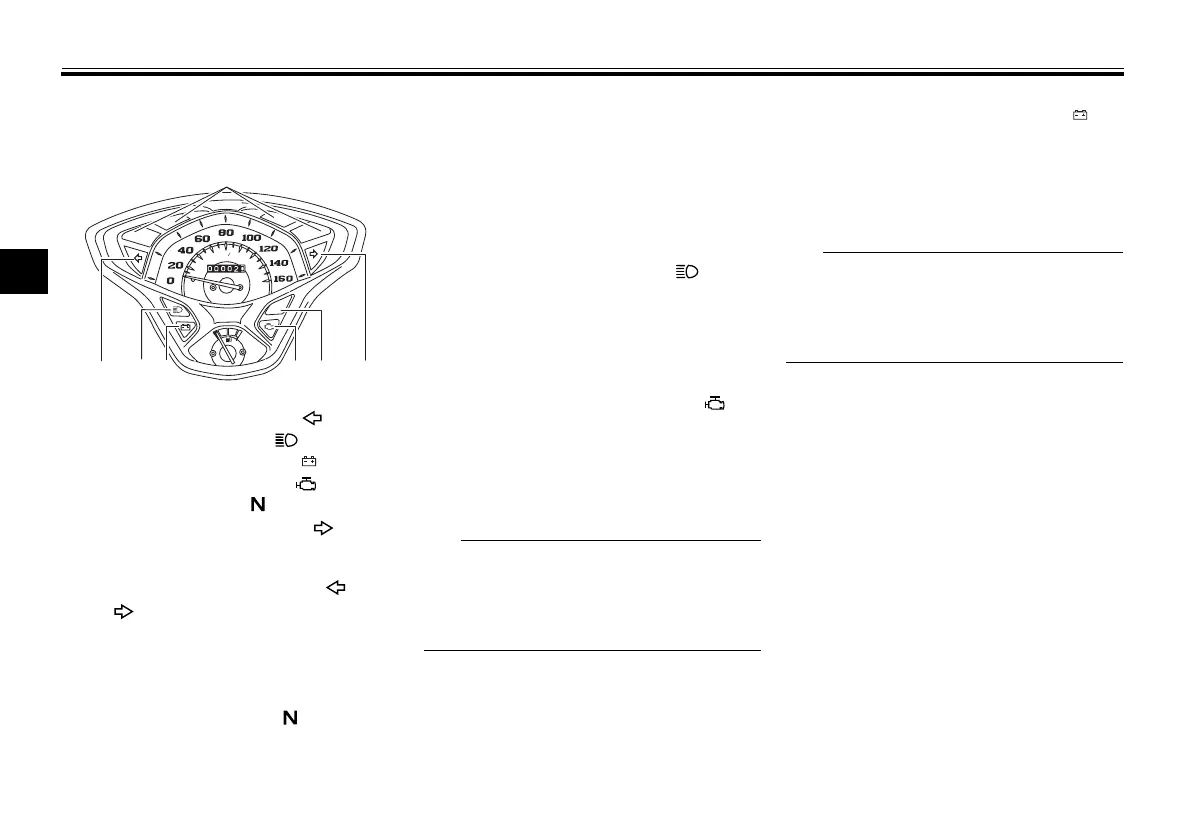

1. Gear position indicator light “1” “2” “3” “4”
2. Left turn signal indicator light “ ”
3. High beam indicator light “ ”
4. Battery voltage warning light “ ”
5. Engine trouble warning light “ ”
6. Neutral indicator light “ ”
7. Right turn signal indicator light “ ”
