Periodic maintenance and adjustment
7-18
7
(a). To decrease the brake lever free
play, turn the adjusting nut in direction
(b).
WARNING
EWA10651
If proper adjustment cannot be ob-
tained as described, have a Yamaha
dealer make this adjustment.
There should be no free play at the
brake lever end. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14212
A soft or spongy feeling in the brake
lever can indicate the presence of
air in the hydraulic system. If there is
air in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the vehicle. Air in the
hydraulic system will diminish the
braking performance, which may re-
sult in loss of control and an acci-
dent.
EAU39815
Adjusting the brake pedal free
play
Measure the brake pedal free play at
the brake pedal end as shown.
Periodically check the brake pedal free
play and, if necessary, adjust it as fol-
lows.
To increase the brake pedal free play,
turn the brake pedal free play adjusting
nut at the brake rod in direction (a). To
decrease the brake pedal free play,
turn the adjusting nut in direction (b).

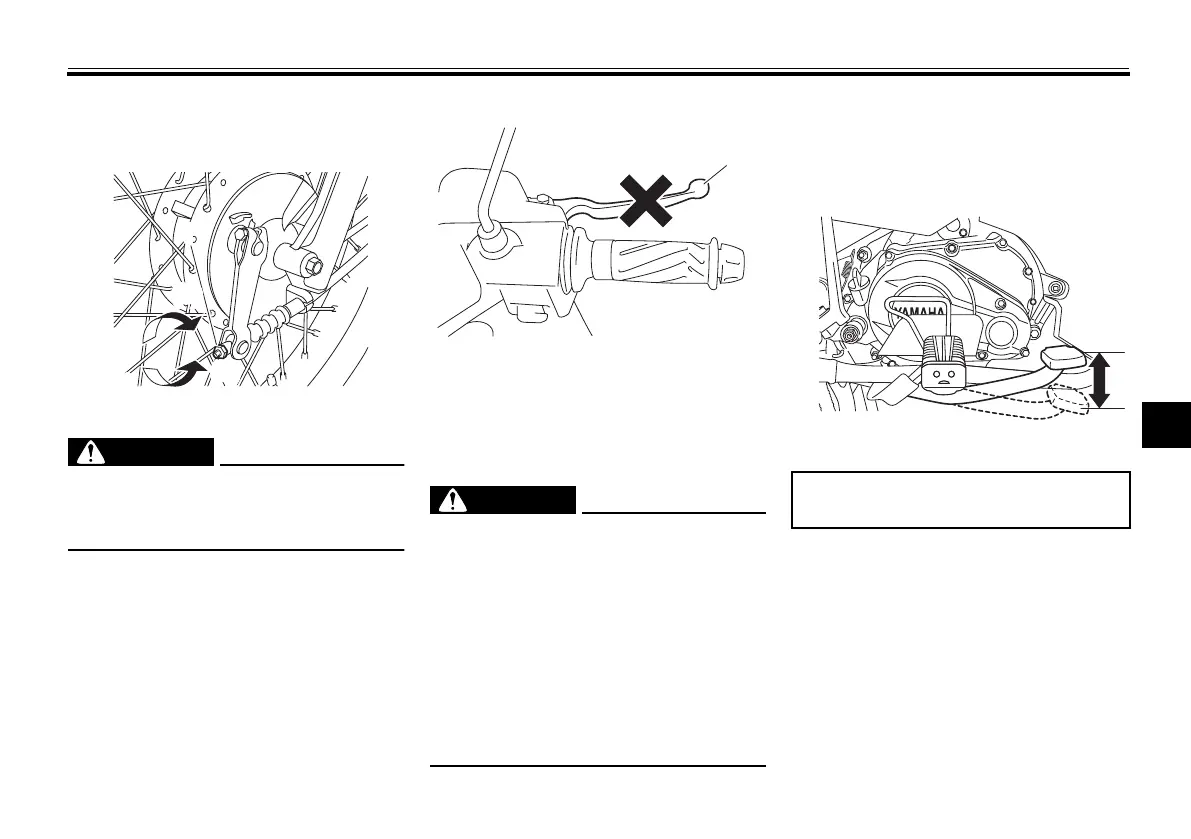

1. Brake lever free play adjusting nut
1
(a)
(b)
ZAUV0385
1. No brake lever free play
ZAUV0256ZAUV0256ZAUV0256
1
1. Brake pedal free play
Brake pedal free play:
20.0–30.0 mm (0.79–1.18 in)
1
