Removing and installing cowl-
ings and panels
The cowlings and panels shown need
to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each time
a cowling or panel needs to be re-
moved and installed.
EAU55940
Cowling A
To remove the cowling
Remove the screws, and then pull the
cowling off as shown.
To install the cowling
Place the cowling in the original posi-
tion, and then install the screws.
Cowling B
To remove the cowling
Remove the screws, and then pull the
cowling off as shown.

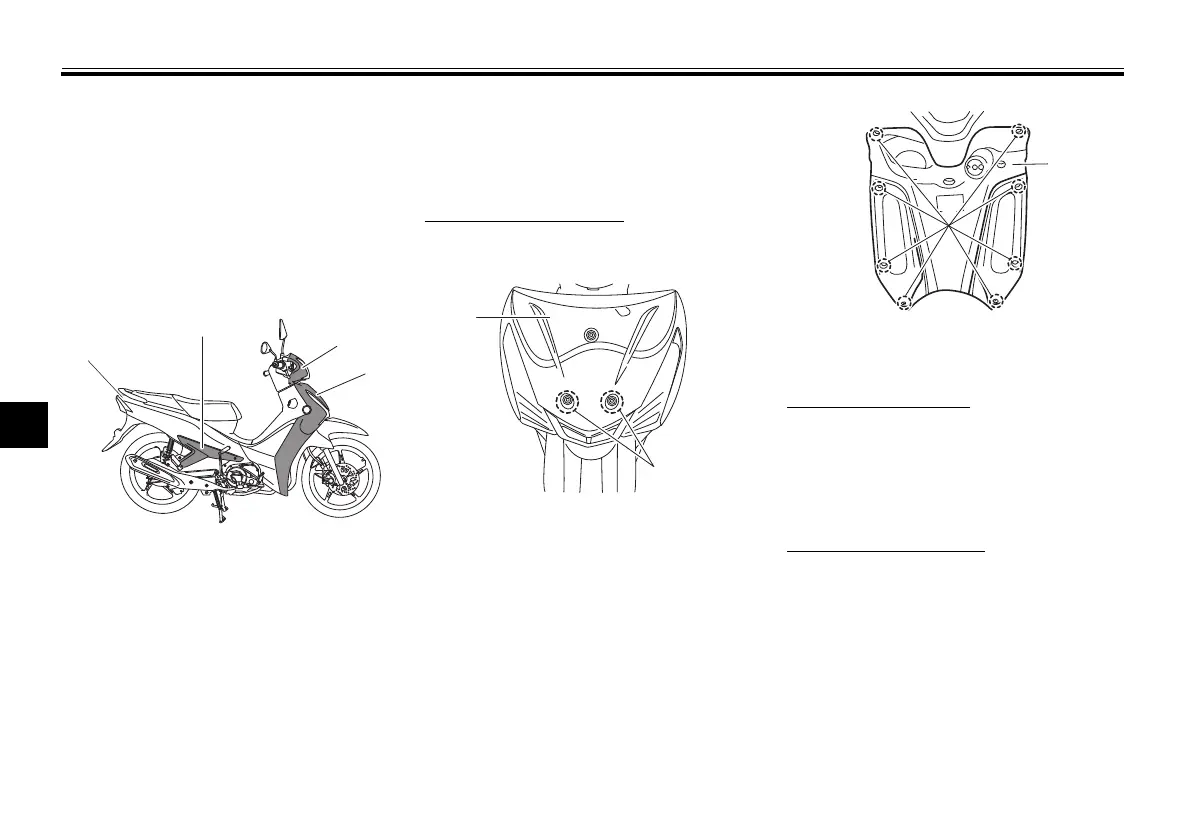

1. Cowling A
2. Cowling B
3. Panel A
4. Panel B
3
2
1
4
1. Screw
2. Cowling A
1
2
1. Screw
2. Rear cowling
2
1
