INSTRUMENT AND CONTROL FUNCTIONS
3-34
3
3. Move the rider seat holder cover
to the lower position as shown.
4. Install the rider seat height posi-
tion adjuster so that the “H” mark
is aligned with the match mark.
5. Insert the projection on the front of
the rider seat into seat holder B as
shown.
6. Align the projection on the bottom
of the rider seat with the “H” posi-
tion slot, and then push the rear of
the seat down to lock it in place as
shown.
7. Install the passenger seat.
To change the rider seat height to
the low position
1. Remove the rider seat. (See page
3-32.)
2. Remove the rider seat height posi-
tion adjuster by pulling it upward.
3. Move the rider seat holder cover
to the upper position.
4. Install the rider seat height posi-
tion adjuster so that the “L” mark
is aligned with the match mark.

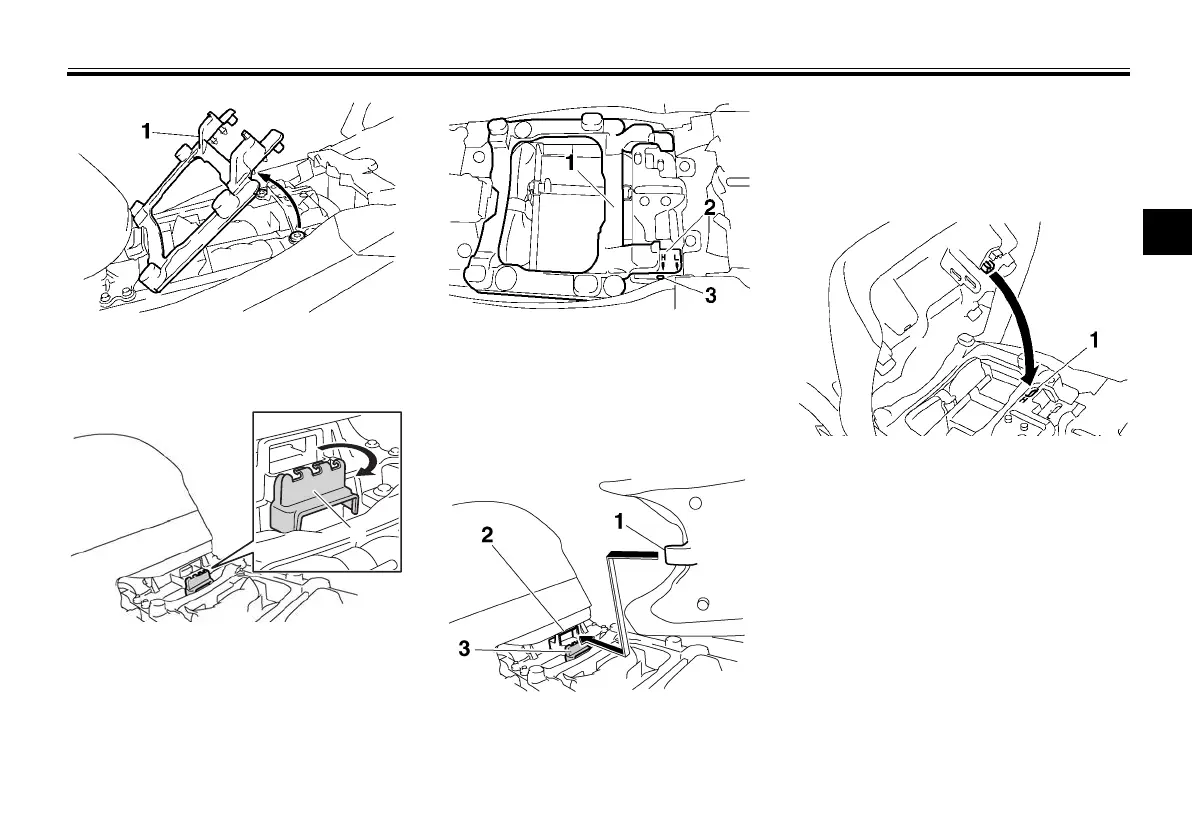

1. Rider seat height position adjuster
1. Rider seat holder cover
1
1. Rider seat height position adjuster
2. “H” mark
3. Match mark
1. Projection
2. Seat holder B (for high position)
3. Rider seat holder cover
1. “H” position slot
