Yamaha FJR1300A - Adjusting the Headlight Beams; Handlebar Position; Opening and Closing the Cowling Vents

INSTRUMENT AND CONTROL FUNCTIONS
3-37
3
EAU39612

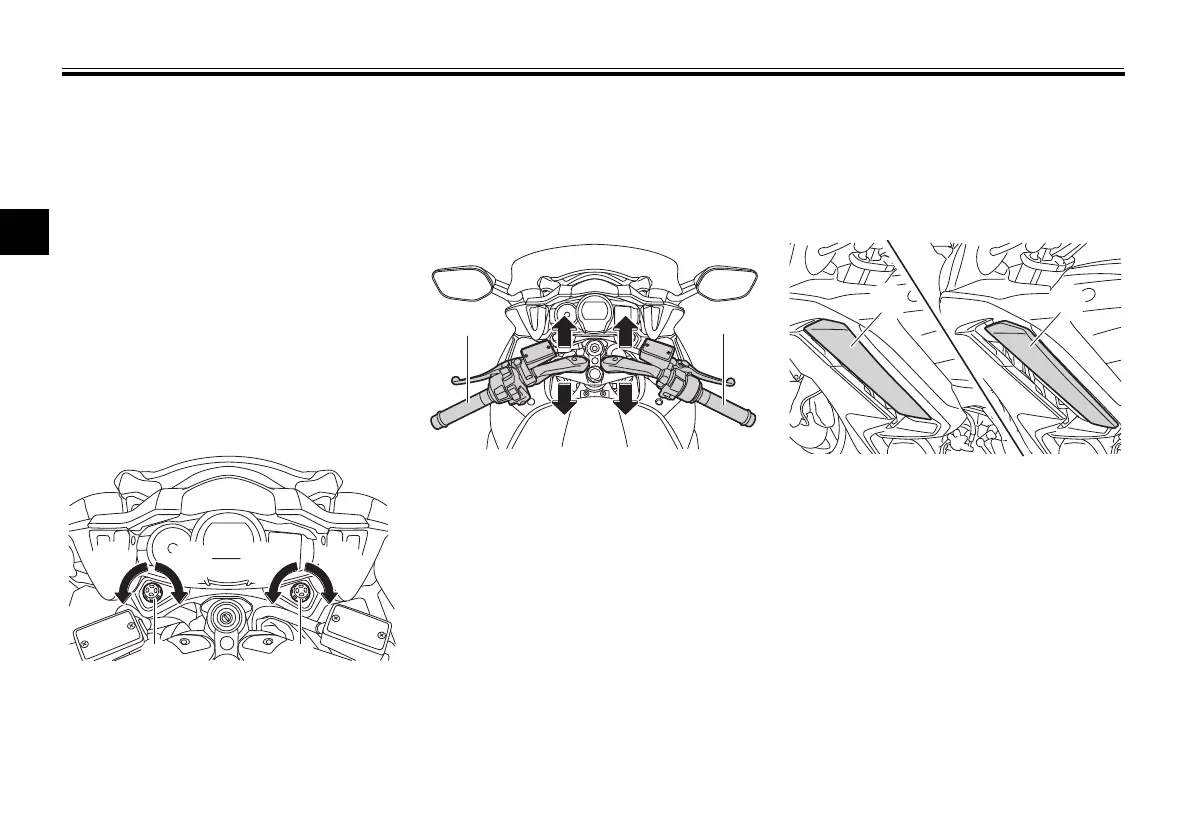

Adjusting the headlight beams
The headlight beam adjusting knobs
are used to raise or lower the height of
the headlight beams. It may be neces-
sary to adjust the headlight beams to
increase visibility and help prevent
blinding oncoming drivers when carry-
ing more or less load than usual. Obey
local laws and regulations when ad-
justing the headlights.
To raise the headlight beams, turn the
knobs in direction (a). To lower the
headlight beams, turn the knobs in di-
rection (b).
EAU39642
Handlebar position
The handlebars can be adjusted to one
of three positions to suit the rider’s
preference. Have a Yamaha dealer ad-
just the position of the handlebars.
EAU54151
Opening and closing the cowl-
ing vents
The cowling vents can be opened 20
mm (0.79 in) for added ventilation to
suit the riding conditions.
To open a cowling vent
1. Remove the quick fastener.
2. Slide the cowling vent panel for-
ward to unhook its projections
from the lower slots, and then pull
the panel off.
1. Headlight beam adjusting knob
11
(b) (a) (b) (a)
1. Handlebar
11
1. Closed position
2. Open position
1 2
