justment, it would be advisable to
check the number of clicks of each
damping force adjusting mechanism
and to modify the specifications as
necessary.
EAU14917
Adjusting the shock absorber
assembly
This shock absorber assembly is
equipped with a spring preload adjust-
ing lever and a rebound damping force
adjusting knob.
NOTICE
ECA16571
To avoid damaging the mechanism,
do not attempt to move beyond the
maximum or minimum settings.
Spring preload
For riding solo, move the spring pre-
load adjusting lever in direction (a). For
riding with a passenger, move the
spring preload adjusting lever in direc-
tion (b).
Rebound damping force
To increase the rebound damping
force and thereby harden the rebound
damping, turn the adjusting knob in di-
rection (a). To decrease the rebound
damping force and thereby soften the
rebound damping, turn the adjusting
knob in direction (b).

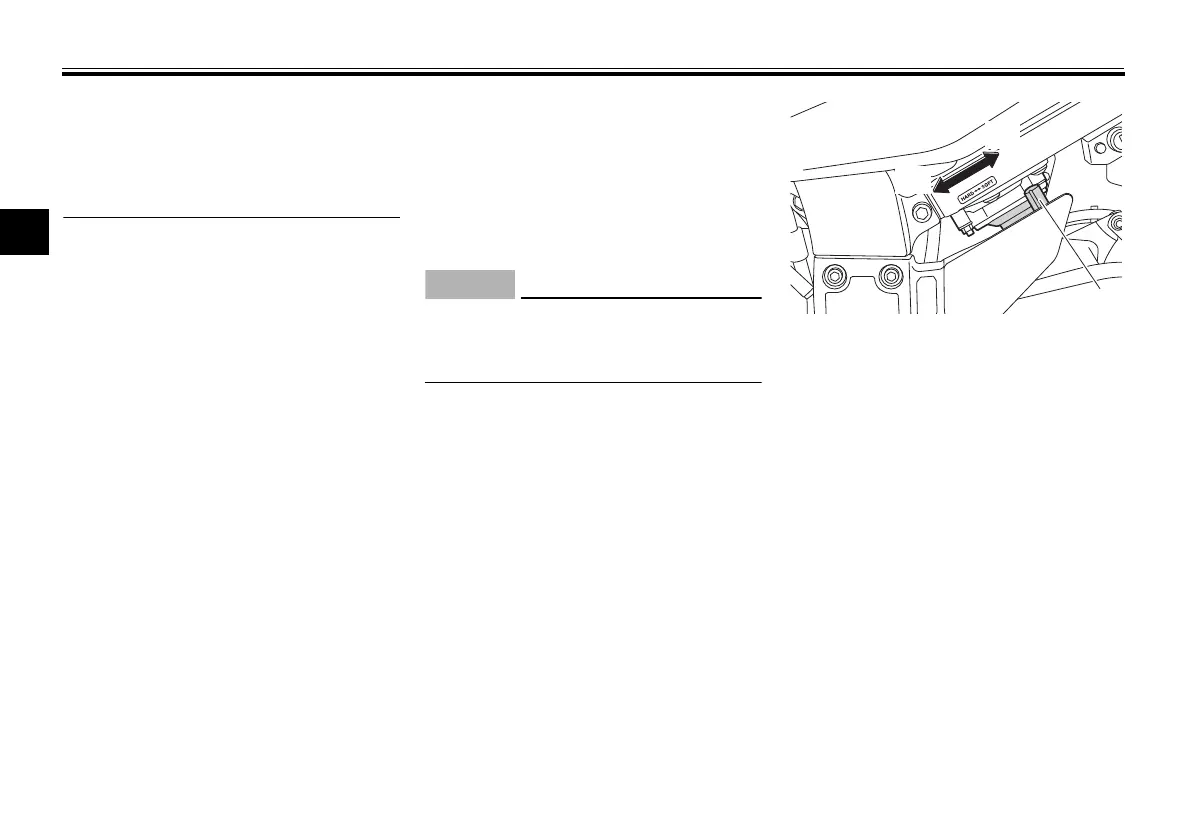

1. Spring preload adjusting lever
1
(b)
(a)
