INSTRUMENT AND CONTROL FUNCTIONS
3-35
3

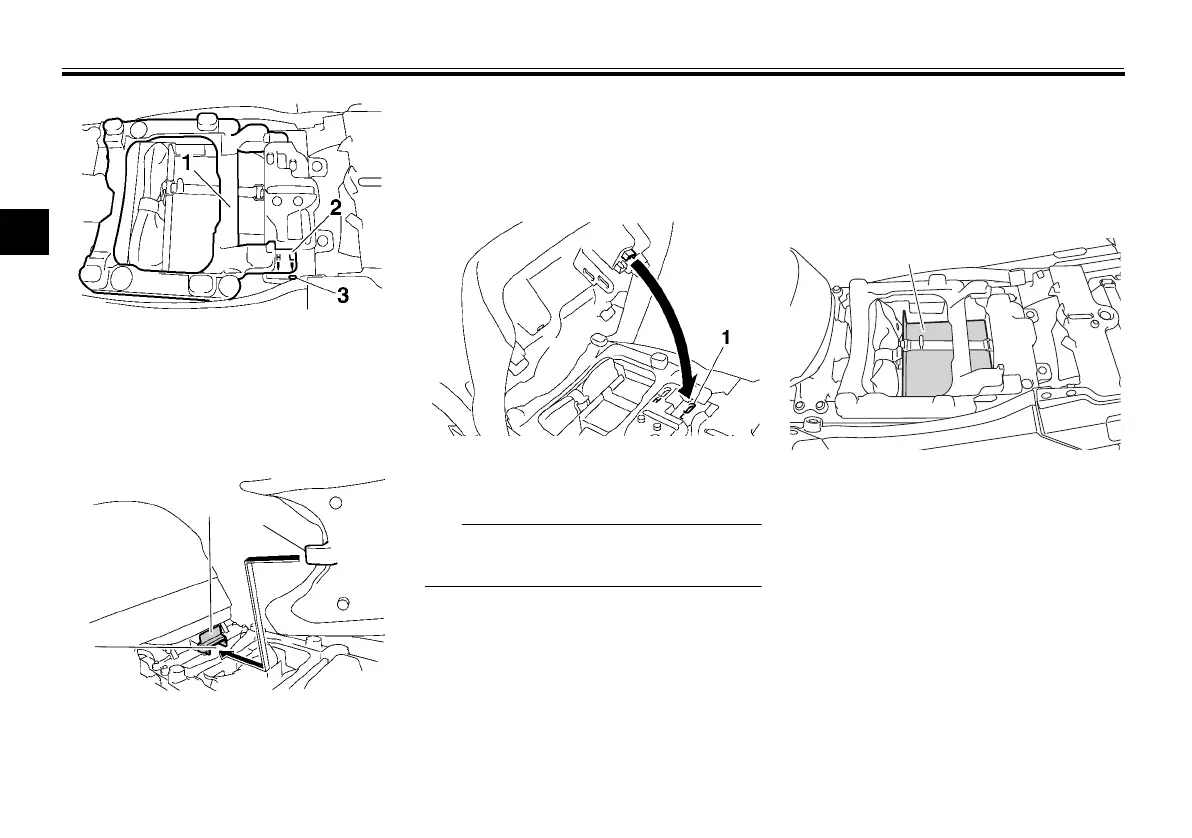

5. Insert the projection on the front of
the rider seat into seat holder A as
shown.
6. Align the projection on the bottom
of the rider seat with the “L” posi-
tion slot, and then push the rear of
the seat down to lock it in place as
shown.
7. Install the passenger seat.
Make sure that the seats are properly
secured before riding.
EAU40254
Storage compartments
This vehicle is equipped with two stor-
age compartments.
Storage compartment A is located un-
der the rider seat. (See page 3-32.)
Storage compartment B is located un-
der the passenger seat. (See page
3-32.)
1. Rider seat height position adjuster
2. “L” mark
3. Match mark
1. Projection
2. Rider seat holder cover
3. Seat holder A (for low position)
1. “L” position slot
1. Storage compartment A
