PERIODIC MAINTENANCE AND ADJUSTMENT
6-24
6
indicator groove has almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU22501
Rear brake pads
Check each rear brake pad for damage
and measure the lining thickness. If a
brake pad is damaged or if the lining
thickness is less than 0.8 mm (0.03 in),
have a Yamaha dealer replace the
brake pads as a set.
EAU40272
Checking the brake and
clutch fluid levels
Before riding, check that the brake and
clutch fluids are above the minimum
level marks. Check the brake and
clutch fluid levels with the tops of the
reservoirs level. Replenish the brake
and clutch fluids if necessary.
Front brake
Rear brake
Clutch
TIP
The rear brake fluid reservoir is located
behind panel C. (See page 6-8.)

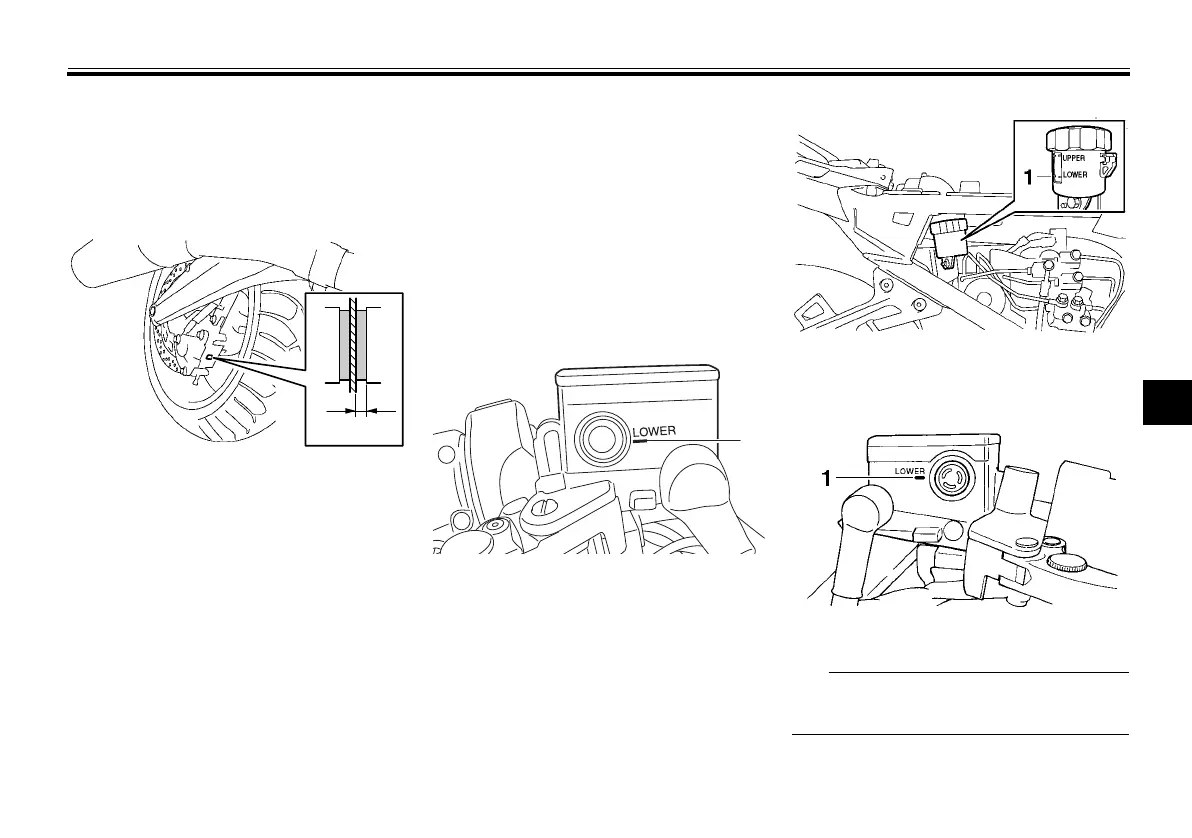

1. Lining thickness
1
1. Minimum level mark
1
1. Minimum level mark
1. Minimum level mark
