Removing and installing pan-
els
The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU54133

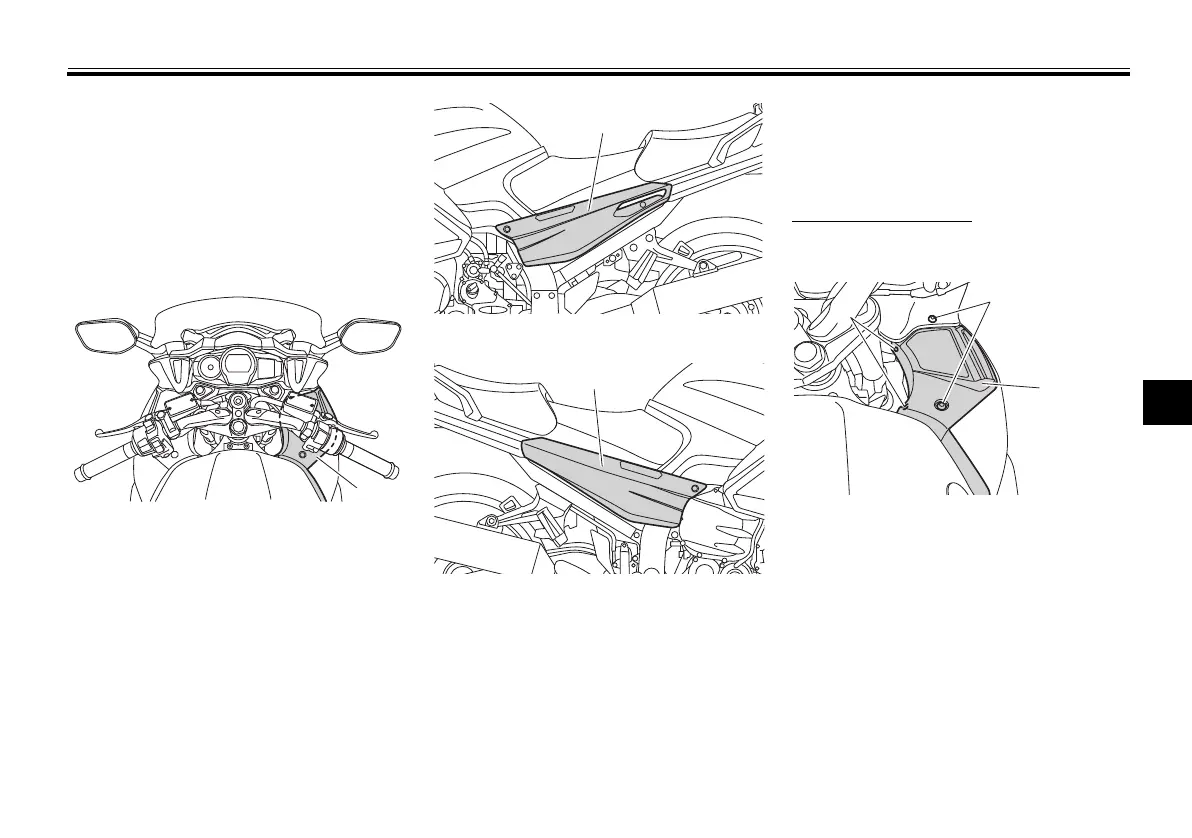

Panel A
To remove the panel
1. Remove the bolts and the quick
fasteners.
2. Release the slot at the rear of the
panel from the projection on the
right side cowling.
1. Panel A
1
1. Panel B
1. Panel C
1
1
1. Panel A
2. Bolt
3. Quick fastener
1
2
3
