PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6

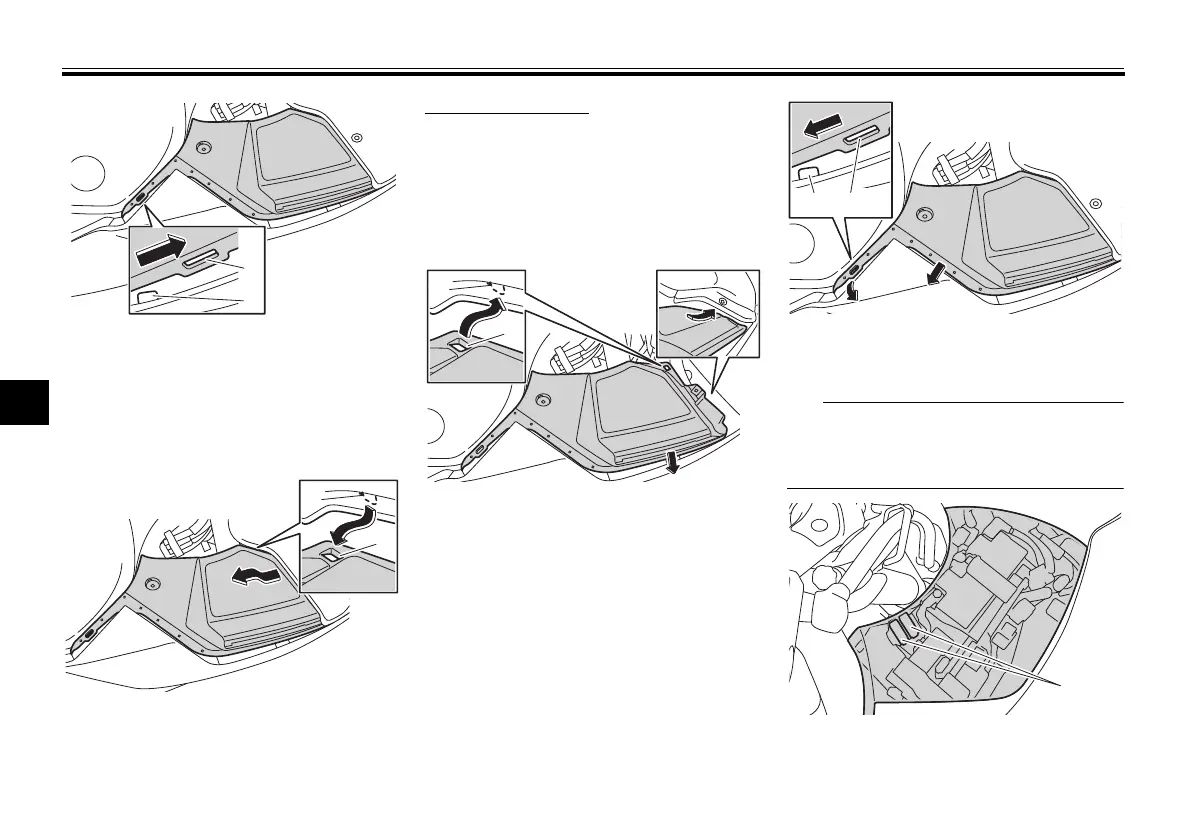

3. Release the slot at the front of the
panel from the projection on the
front cowling, and then pull the
panel off as shown.
To install the panel
1. Fit the slot at the front of the panel
under the projection on the front
cowling, and then fit the slot at the
rear of the panel over the projec-
tion on the right side cowling as
shown.
TIP
Make sure that the fuses are covered
and located to the inside of the panel
lip.
1. Slot
2. Projection
1. Slot
2. Projection
1
2
2
1
1. Slot
2. Projection
2
1
1. Slot
2. Projection
1. Fuse
12
1
