2. Install the bolts and the quick fas-
teners.

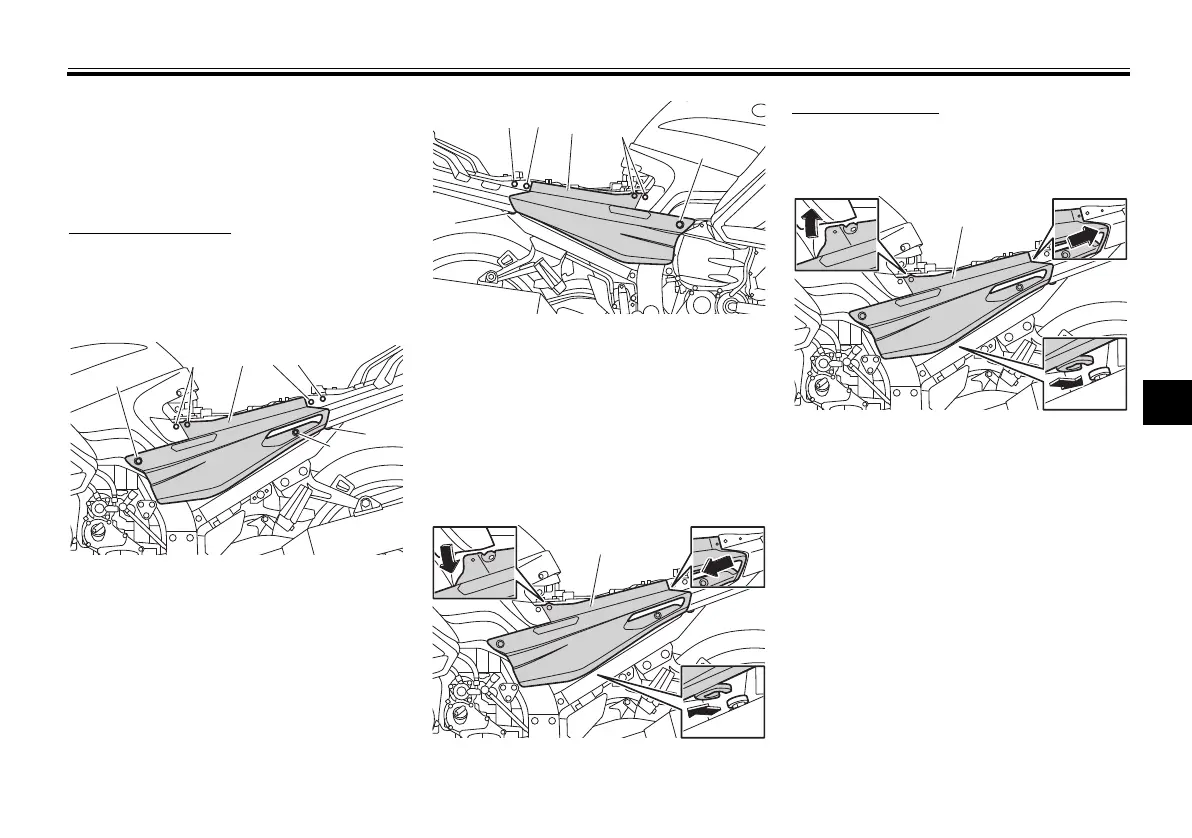

Panels B and C
To remove a panel
1. Remove the seats. (See page
3-32.)
2. Remove the bolts and the quick
fastener screws.
3. Pull the bottom of the panel out-
ward, pull the front of the panel
downward, and then slide the
panel forward to release it in the
rear as shown.
To install a panel
1. Place the panel in the original po-
sition, and then install the bolts
and the quick fastener screws.
2. Install the seats.
1. Panel B
2. Quick fastener screw
3. Bolt
1
2
2
3
3
2
3
1. Panel C
2. Quick fastener screw
3. Bolt
1. Panel B
1
2
2
2
3
3
1
1. Panel B
1
