INSTRUMENT AND CONTROL FUNCTIONS
3-38
3
3. Insert the projections into the up-
per slots, and then slide the panel
backward.
4. Install the quick fastener.

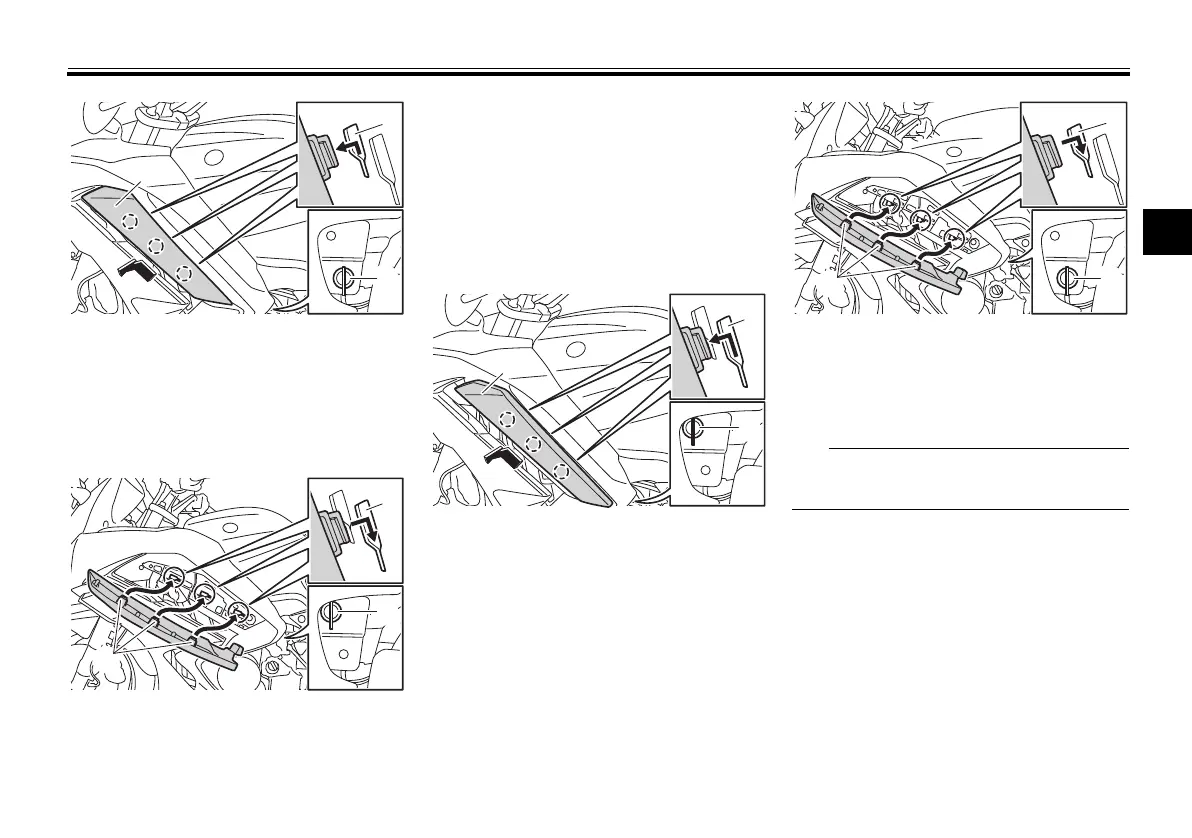

To close a cowling vent
1. Remove the quick fastener.
2. Slide the cowling vent panel for-
ward to unhook its projections
from the upper slots, and then pull
the panel off.
3. Insert the projections into the low-
er slots, and then slide the panel
backward.
4. Install the quick fastener.
TIP
Make sure that the cowling vent panels
are properly installed before riding.
1. Cowling vent panel
2. Lower slot
3. Quick fastener
1. Projection
2. Upper slot
3. Quick fastener
3
1
2
1
3
2
1. Cowling vent panel
2. Upper slot
3. Quick fastener
3
1
2
1. Projection
2. Lower slot
3. Quick fastener
1
3
2
