PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
6
2. Remove the final gear oil filler bolt
and its gasket, and then check the
oil level in the final gear case.
The oil level should be at the brim of
the filler hole.
3. If the oil is below the brim of the
filler hole, add sufficient oil of the
recommended type to raise it to
the correct level.
4. Check the gasket for damage, and
replace it if necessary.
5. Install the final gear oil filler bolt
and its gasket, and then tighten
the bolt to the specified torque.
To change the final gear oil
1. Place the vehicle on a level sur-
face.
2. Place an oil pan under the final
gear case to collect the used oil.
3. Remove the final gear oil filler bolt,
the final gear oil drain bolt and
their gasket to drain the oil from
the final gear case.
4. Install the final gear oil drain bolt
and its new gasket, and then tight-
en the bolt to the specified torque.
5. Refill with the recommended final
gear oil to the brim of the filler
hole.
6. Check the oil filler bolt gasket for
damage, and replace it if neces-
sary.
7. Install the oil filler bolt and its gas-
ket, and then tighten the bolt to
the specified torque.
8. Check the final gear case for oil
leakage. If oil is leaking, check for
the cause.

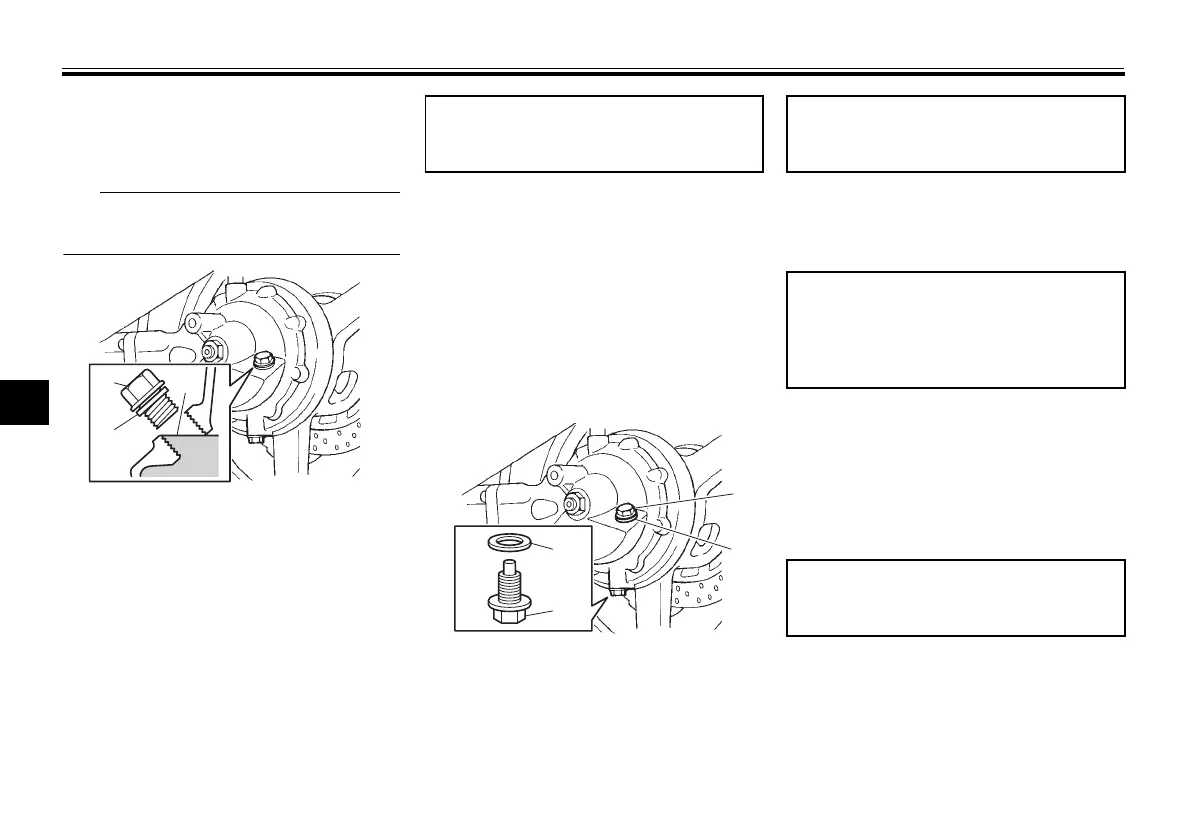

1. Final gear oil filler bolt
2. Gasket
3. Correct oil level
Tightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil drain bolt
Tightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Recommended final gear oil:
Yamaha genuine shaft drive gear oil
SAE 80W-90 API GL-5
Oil quantity:
0.20 L (0.21 US qt, 0.18 Imp.qt)
Tightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
