Yamaha FL300A - Main Switch

Components
43
EMU35782
Main switch
The main switch controls the ignition system;
its operation is described below. Only
equipped with the main station.
●
“” (off)
With the main switch in the “ ” (off) posi-
tion, the electrical circuits are off, and the key
can be removed.
● “” (on)
With the main switch in the “ ” (on) posi-
tion, the electrical circuits are on, and the key
cannot be removed. The engine can be start-
ed by pressing the Start/Stop button.
●
“” (start)
With the main switch in the “ ” (start) po-
sition, the starter motor turns to start the en-
gine. When the key is released, it returns
automatically to the “ ” (on) position.
ON
STARTOFF
ON
STARTOFF
1
2
3
ZMU05818
1
2
3
ZMU05978
1
2
3
ZMU07144
1
2
3
ZMU07142

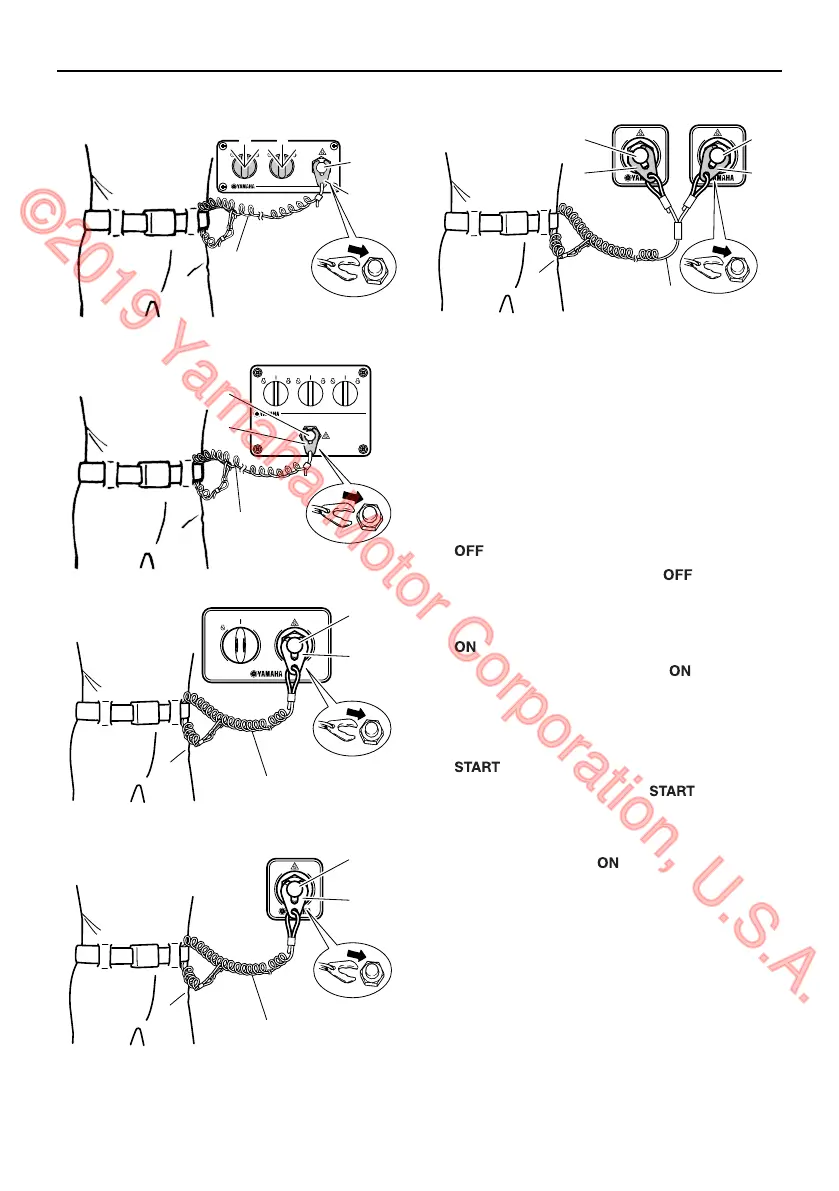

1. Cord
2. Clip
3. Engine shut-off switch
1
2
3
2
3
ZMU07307
