falling overboard and could distract the
operator, increasing the risk of collision
with another boat or an obstacle.
EMU42260

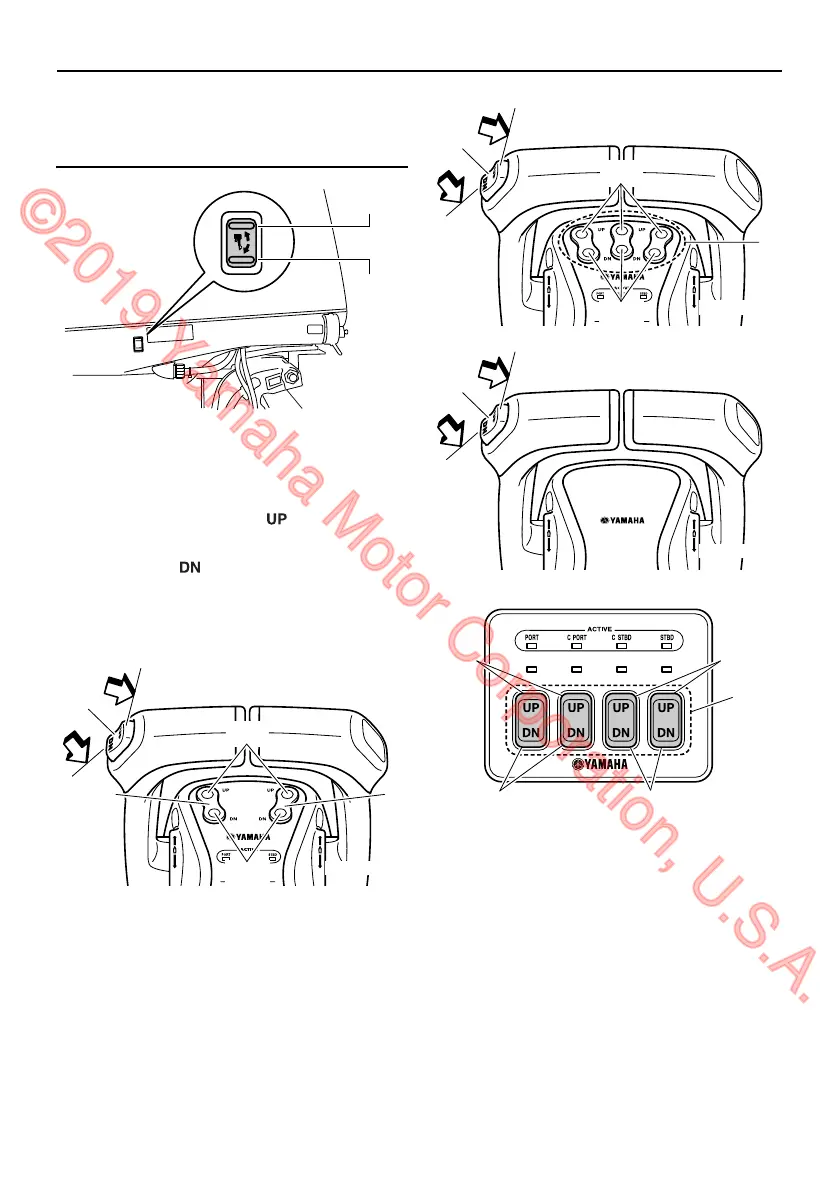

Power trim and tilt switches
The power trim and tilt system adjusts the
outboard motor angle in relation to the tran-
som. Pushing the switch “ ” (up) trims the
outboard motor up, and then tilts it up. Press-
ing the switch “ ” (down) tilts the outboard
motor down and trims it down. When the
switch is released, the outboard motor will
stop in its current position.
The switch on the control grip controls all
outboard motors at the same time.
For instructions on using the power trim and
tilt switches, see pages 96 and 99.
EMU35040
Tilt limiter
This outboard motor is equipped with a tilt
limiter that controls the tilt range.
1. Power trim and tilt switch
