Components
17
FT8D
EMU25802
Fuel tank
If your model was equipped with a portable
fuel tank, its function is as follows.
WARNING
EWM00020
The fuel tank supplied with this engine is
its dedicated fuel reservoir and must not
be used as a fuel storage container. Com-
mercial users should conform to relevant
licensing or approval authority regula-
tions.

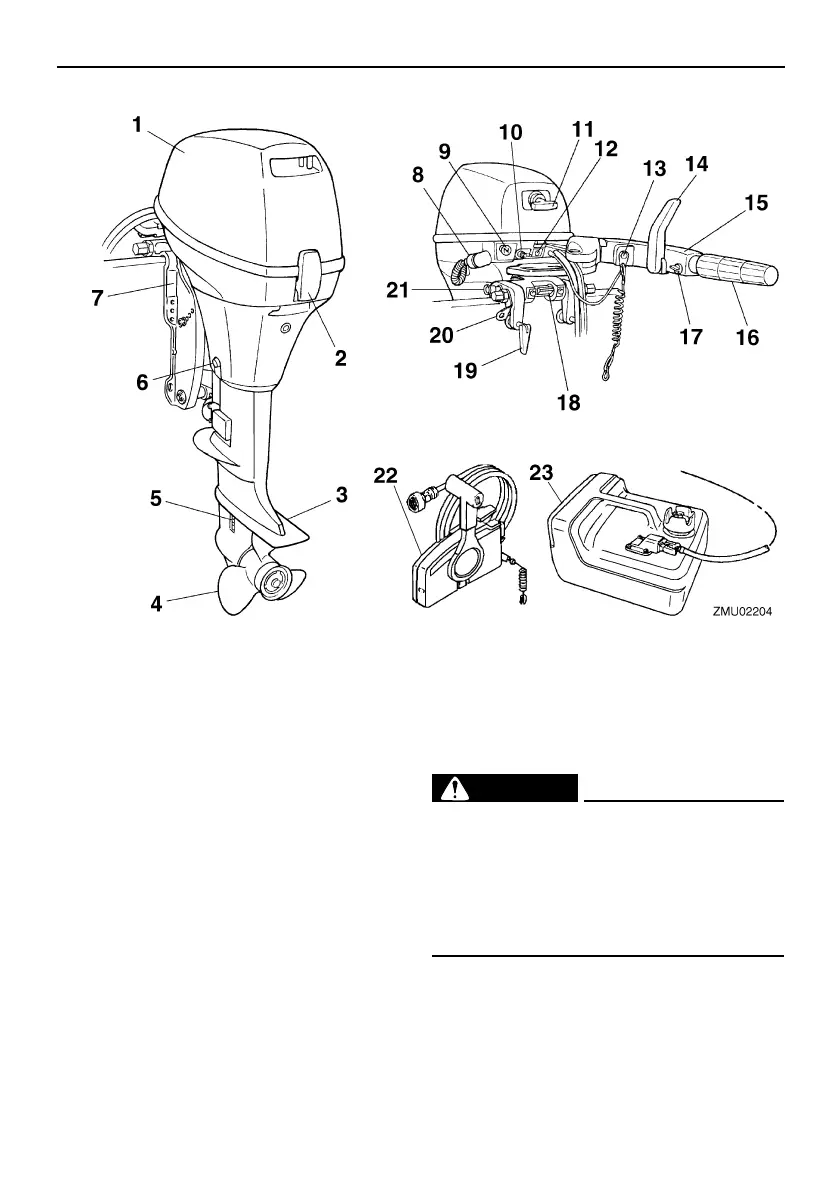

1. Top cowling
2. Cowling lock lever
3. Anti-cavitation plate
4. Propeller
5. Cooling water inlet
6. Drain screw
7. Clamp bracket
8. Flushing device
9. Choke knob
10.Fuel joint
11.Manual starter handle*
12.Alert indicator
13.Engine stop button/Engine shut-off switch*
14.Gear shift lever*
15.Tiller handle*
16.Throttle grip*
17.Throttle friction adjuster*
18.Tilt lock lever*
19.Clamp screw
20.Restraint cable attachment*
21.Tilt support knob*
22.Remote control box (side mount type)*
23.Fuel tank
