Operation
50
tilt switch / power tilt switch “” (down) to
retract the trim rods. NOTICE: Make
sure that the trim rods retracts com-
pletely during mooring. This protects
the rods from marine growth and cor-
rosion, which could damage the pow-
er trim and tilt mechanism.
[ECM00252]
EMU30192

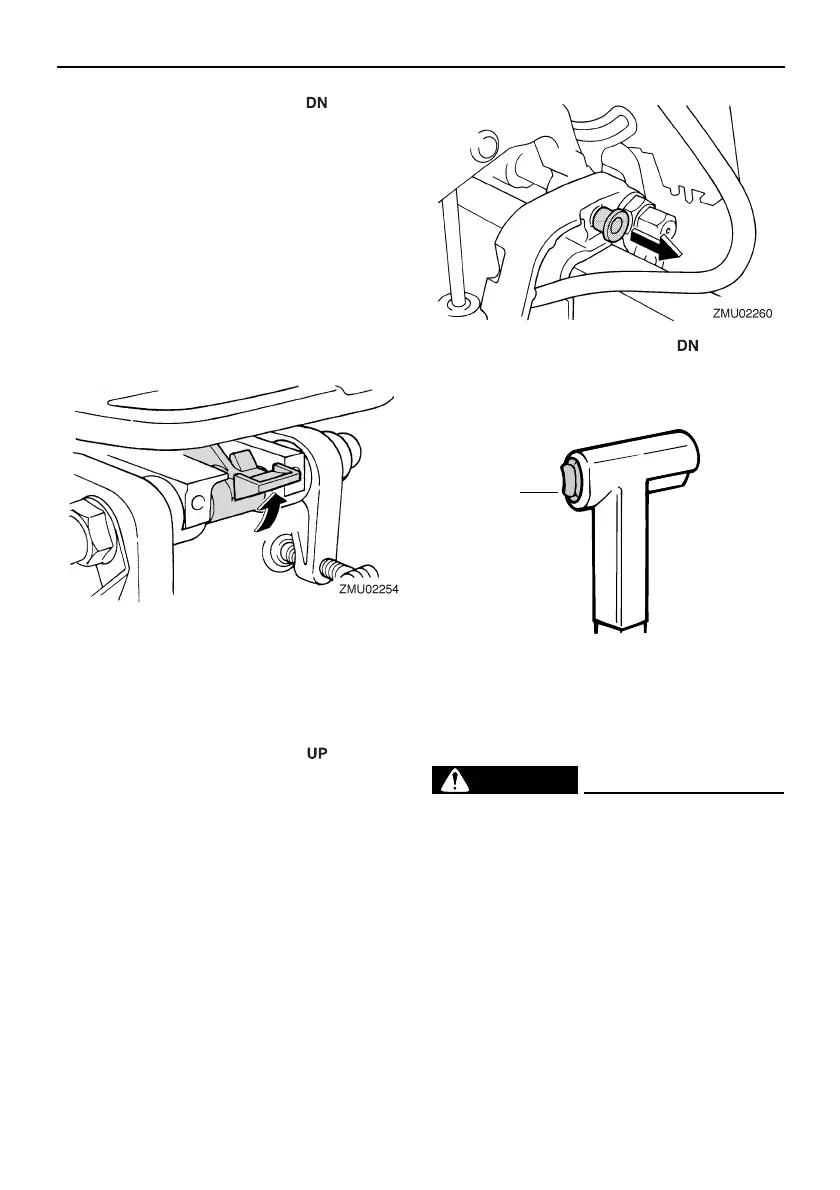

Procedure for tilting down (manual tilt
models)
1. Place the tilt lock lever in the lock posi-
tion.
2. Slightly tilt the engine up until the tilt sup-
port bar is automatically released.
3. Slowly tilt the engine down.
EMU33121
Procedure for tilting down (power tilt
models)
1. Push the power tilt switch “” (up) until
the outboard motor is supported by the tilt
rod and the tilt support knob becomes
free.
2. Pull out the tilt support knob.
3. Push the power tilt switch “” (down) to
lower the outboard motor to the desired
position.
EMU28061
Shallow water
EMU28073
Cruising in shallow water (manual tilt
models)
WARNING
EWM01781
● Run the boat at the lowest possible
speed when using the shallow water
cruising system. The tilt lock mecha-
nism does not work while the shallow
water cruising system is being used. Hit-
ting an underwater obstacle could
cause the outboard motor to lift out of
the water, resulting in loss of control.
DN
ZMU01936
UP
DN
