Components
25
EMU26383

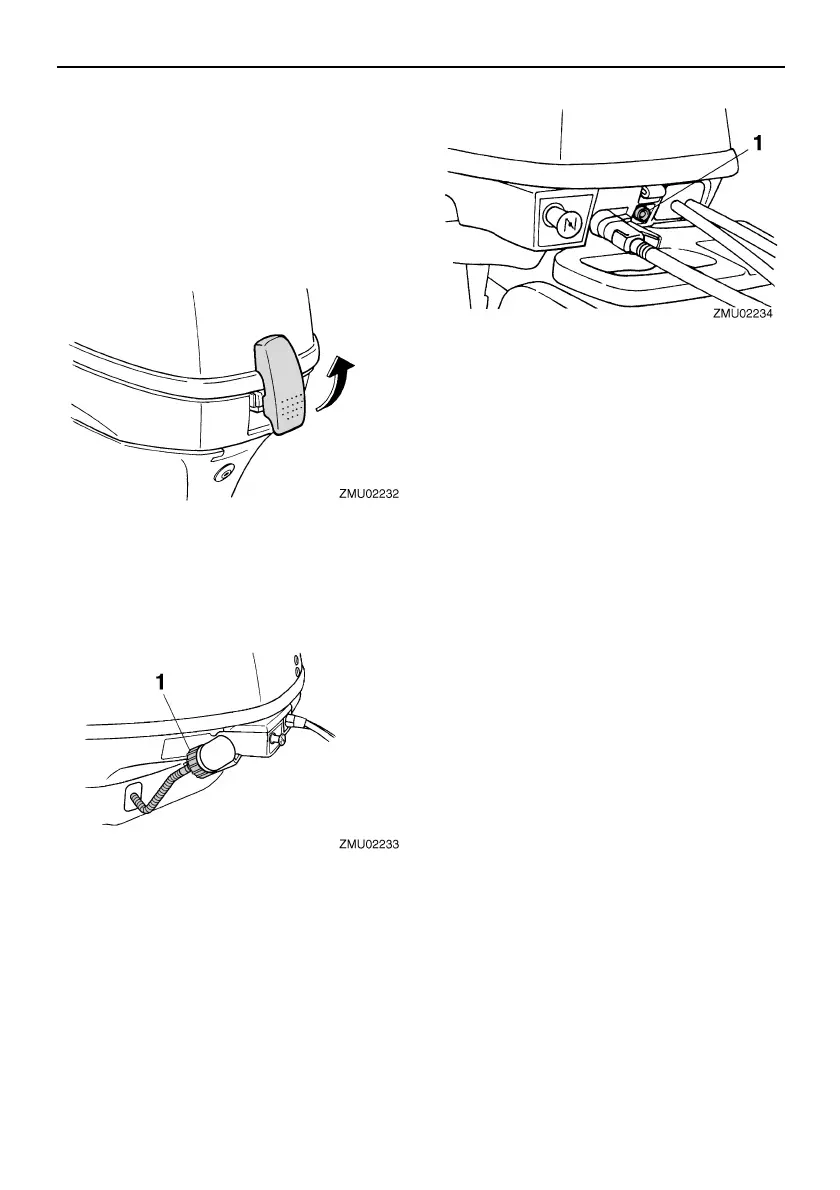

Cowling lock lever (pull up type)
To remove the engine top cowling, pull up the
cowling lock lever(s) and lift off the cowling.
When installing the cowling, check to be sure
it fits properly in the rubber seal. Then lock the
cowling by moving the cowling lock lever(s)
downward.
EMU26462
Flushing device
This device is used to clean the cooling water
passages of the motor using a garden hose
and tap water.
IP:
For details on usage, see page 56.
EMU26303
Alert indicator
If the engine develops a condition which is
cause for alert, the indicator lights up. For de-
tails on how to read the alert indicator, see
page 27.
1. Flushing device
1. Alert indicator
