nected, cooling water can leak out and the
engine can overheat during operation.
[ECM01801]
EMU36954

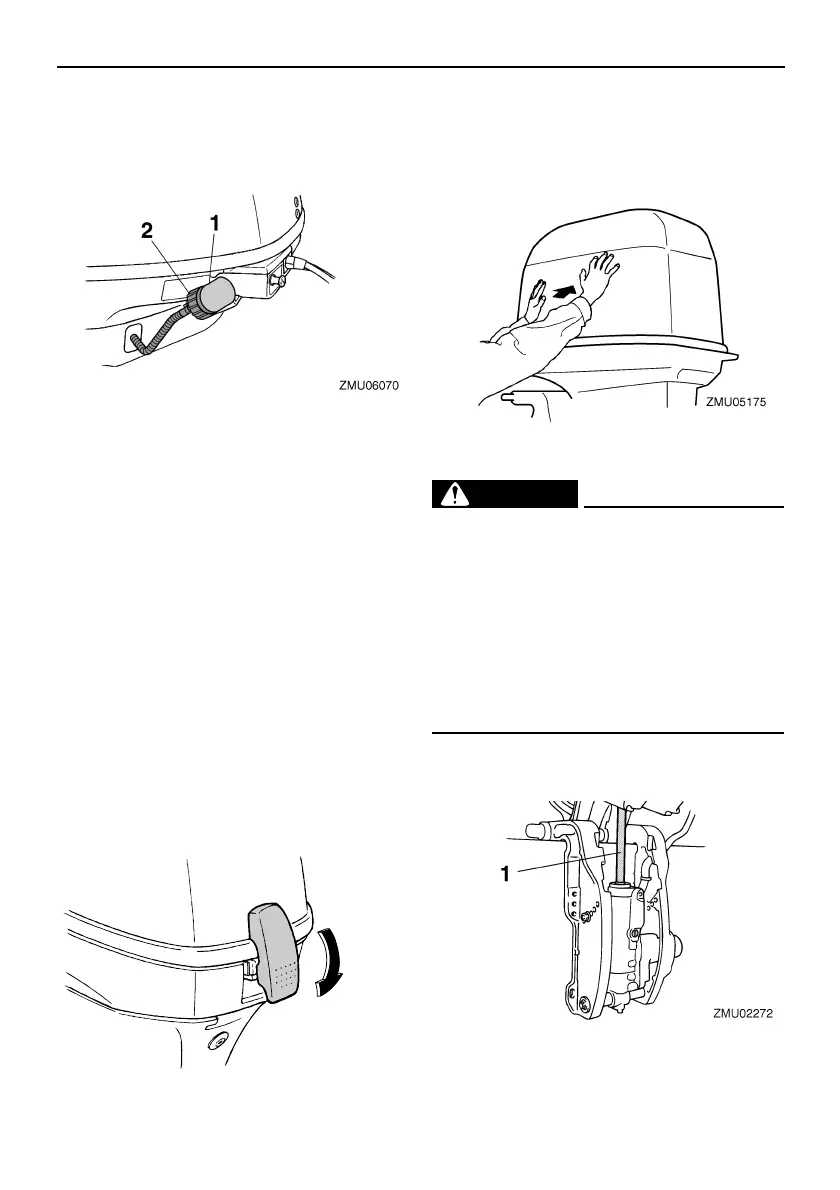

Install top cowling
1. Be sure that the cowling lock lever is re-
leased.
2. Be sure that the rubber seal is seated all
the way around the top cowling.
3. Place the top cowling on the bottom cowl-
ing.
4. Check to be sure the rubber seal is seat-
ed correctly between the top cowling and
the bottom cowling.
5. Move the lever to lock the cowling as
shown. NOTICE: If the top cowling is
not installed correctly, water spray un-
der the top cowling can damage the
engine, or the top cowling can blow off
at high speeds.
[ECM01991]
After installing, check the fitting of the top
cowling by pushing it with both hands. If the
top cowling is loose, have it repaired by your
Yamaha dealer.
EMU34782
Checking power tilt system
WARNING
EWM01970
● Never get under the lower unit while it is
tilted, even when the tilt support knob is
locked. Severe injury could occur if the
outboard motor accidentally falls.
● Body parts can be crushed between the
motor and the clamp bracket when the
motor is trimmed or tilted.
● Be sure no one is near the outboard mo-
tor before performing this check.
1. Check the power tilt unit for any sign of oil
leaks.
1. Fitting
2. Flushing device
ZMU06136
1. Tilt rod
