54

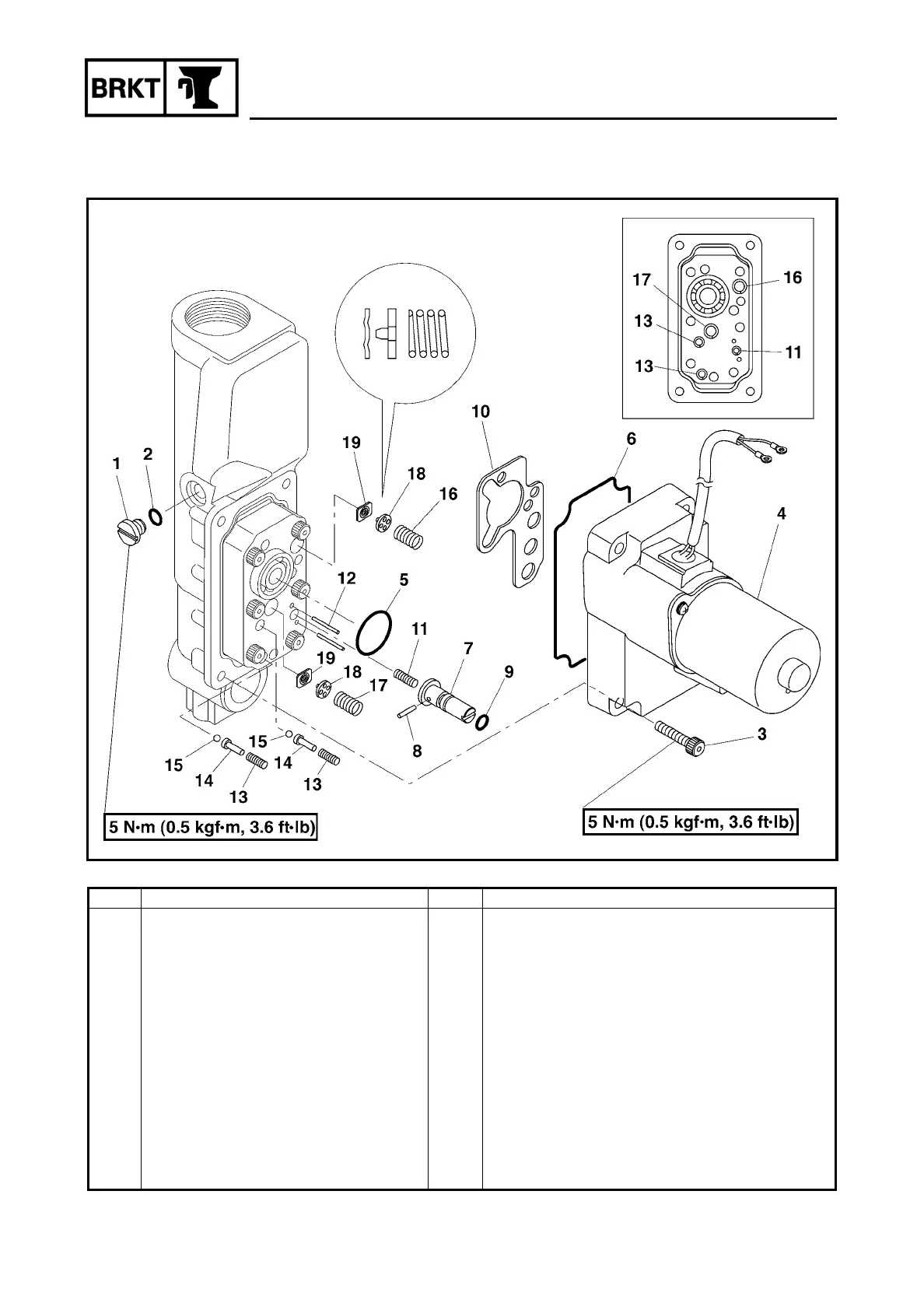

POWER TILT (PT) UNIT
Step Job/Part Q'ty Remarks
14 Absorver valve pin 2
15 Ball 2
16 Spring 2 Outside diameter 7.6 x Length 14.5 mm
17 Spring 1 Outside diameter 8.8 x Length 18.1 mm
18 Valve pin 2
19 Valve seal 2
For assembly, reverse the disassembly
procedure.
