DRIVE SHAFT, FORWARD GEAR, SHIFT ROD AND
OIL SEAL HOUSING

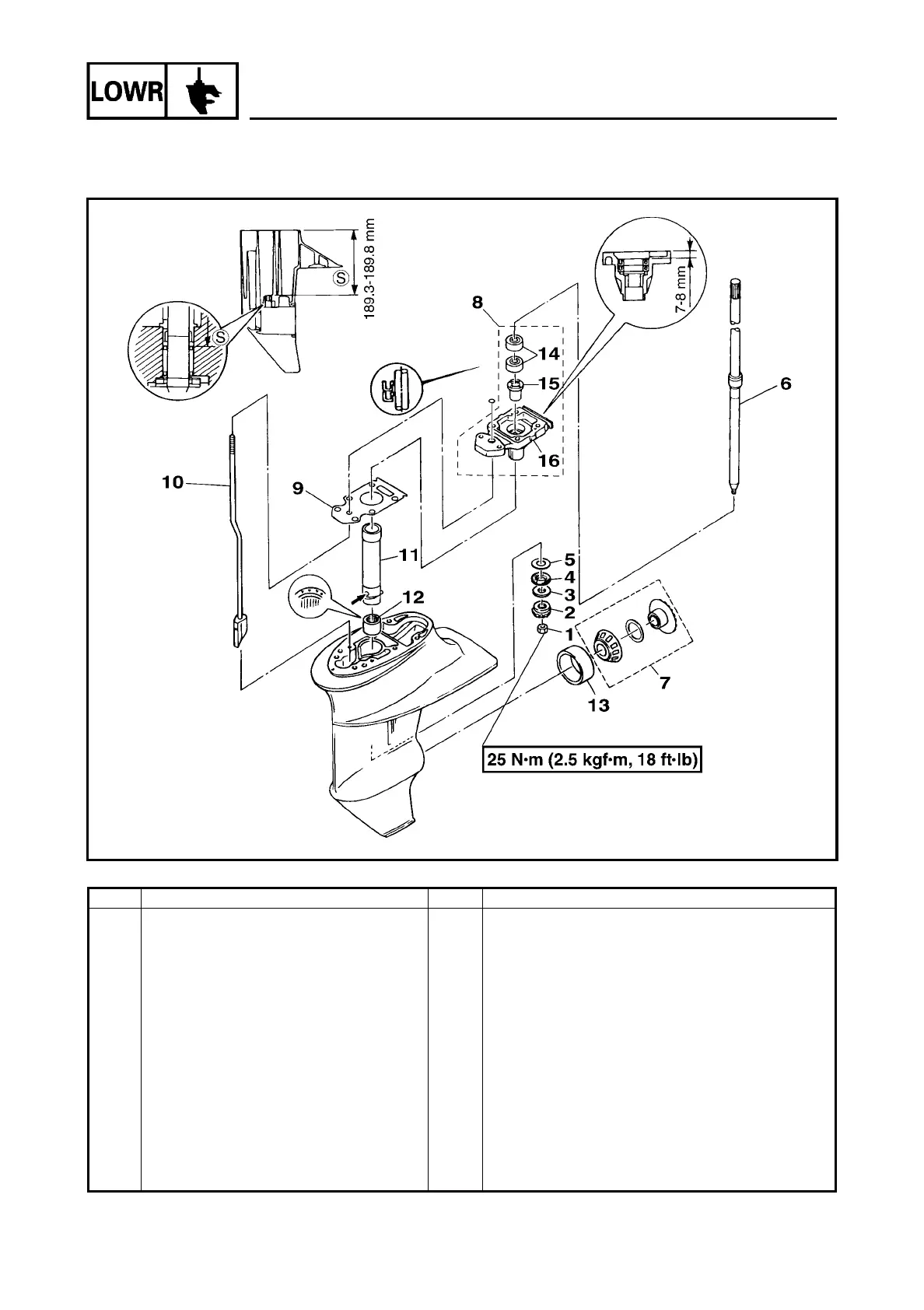

DRIVE SHAFT, FORWARD GEAR, SHIFT ROD AND OIL SEAL HOUSING
REMOVING/INSTALLING THE DRIVE SHAFT, FORWARD GEAR AND SHAFT ROD
*: as required
Step Job/Part Q'ty Remarks
Propeller shaft ass’y
Water pump
1 Pinion nut 1
2 Pinion 1
3Washer 1
4 Thrust bearing 1
5 Pinion shim *
6Drive shaft 1
7 Forward gear ass’y 1/*
(along with the tapered roller bearing
and forward gear shim)
8 Oil seal housing ass’y 1
9 Metal gasket 1
Continued on next page.
