Yamaha FT8DEP Service Manual

65
POWER TILT (PT) UNIT

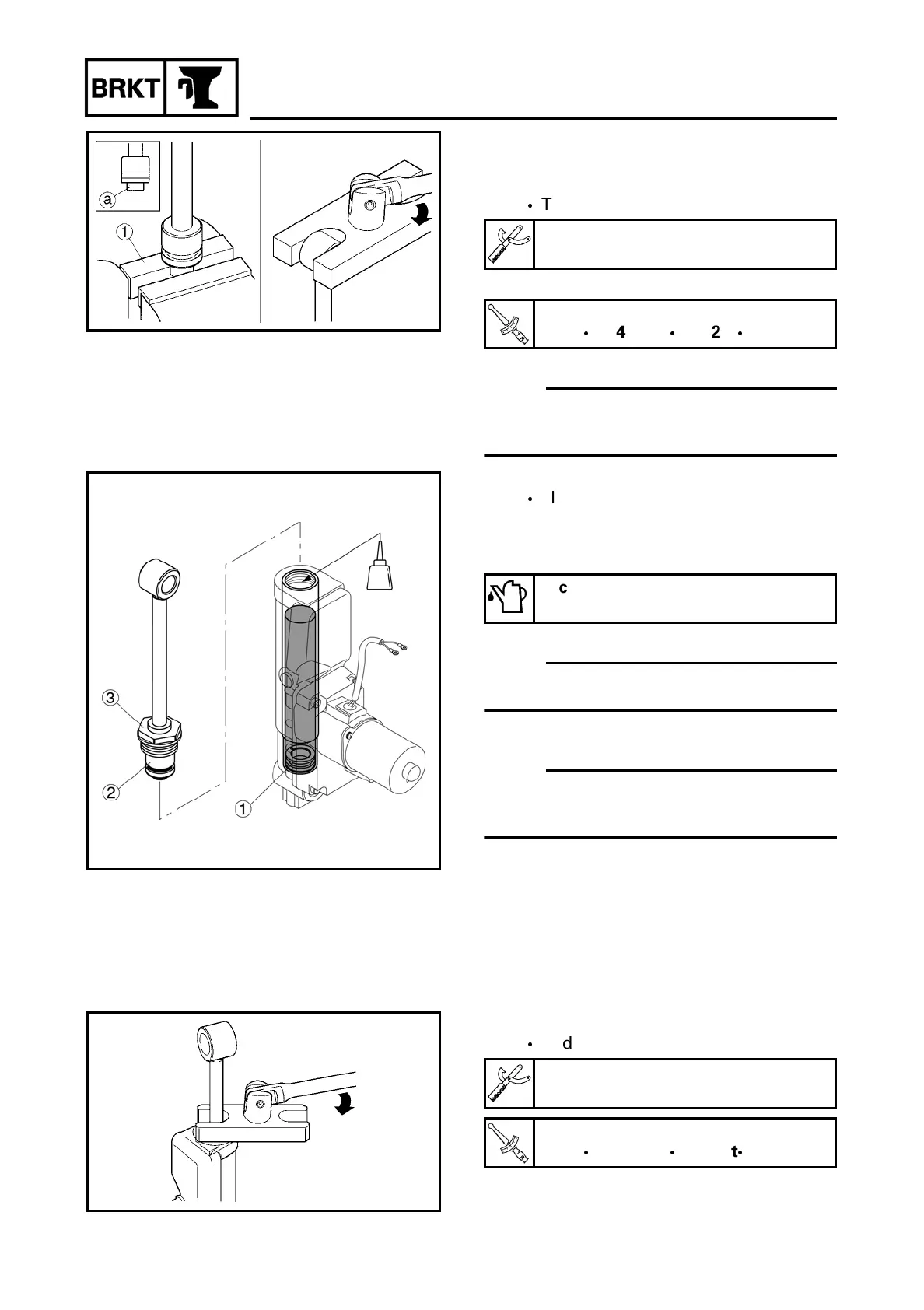

ASSEMBLING THE POWER TILT (PT)
CYLINDER
1. Tighten:
O
Tilt ram
NOTE:
Hold the protruded portion
a
of the tilt
piston with the aluminium plate 1 and
tighten the tilt ram.
2. Fill:
O
Fluid
Filling steps
(1) Fill the cylinder with the fluid to
about 70 %.
NOTE:
Put the fluid with the free piston 1
installed at the bottom of the cylinder.
(2) Install the tilt ram assembly.
NOTE:
The tilt ram assembly is to be installed with
the tilt piston 2 and end screw 3 in close
contact.
3. Tighten:
O
End screw
Power tilt wrench:
YB-06560 / 90890-06560
Tilt piston:
45 N
O m (4.5 kgf O m, 32 ft O lb)
Recommended PT fluid:
ATF Dexron
II
Power tilt wrench:
YB-06560 / 90890-06560
End screw:
45 N
O
m (4.5 kgf
O
m, 32 ft
O
lb)

Yamaha FT8DEP Specifications

General

Engine Type	4-stroke, SOHC
Power Output	8hp
Starting System	Manual
Gear Ratio	2.08:1
Propeller Shaft Horsepower	8hp
Fuel Induction System	Carburetor
Ignition System	CDI
Lubrication	Wet sump
Exhaust	Through propeller hub
Cooling	Water-cooled
Alternator Output	6A
Fuel Tank Capacity	12 litres
Full Throttle RPM Range	5000-6000 rpm
Fuel Type	Gasoline
Shaft Length	15 in
