Yamaha FT9.9D - MAIN COMPONENTS

2-1
GB
@0
q
w
r
i
u
y
o
e
t
@2
!6
!1
!3
!4
!2
!5
!7
!8
!9
!0
@1
EMU01206

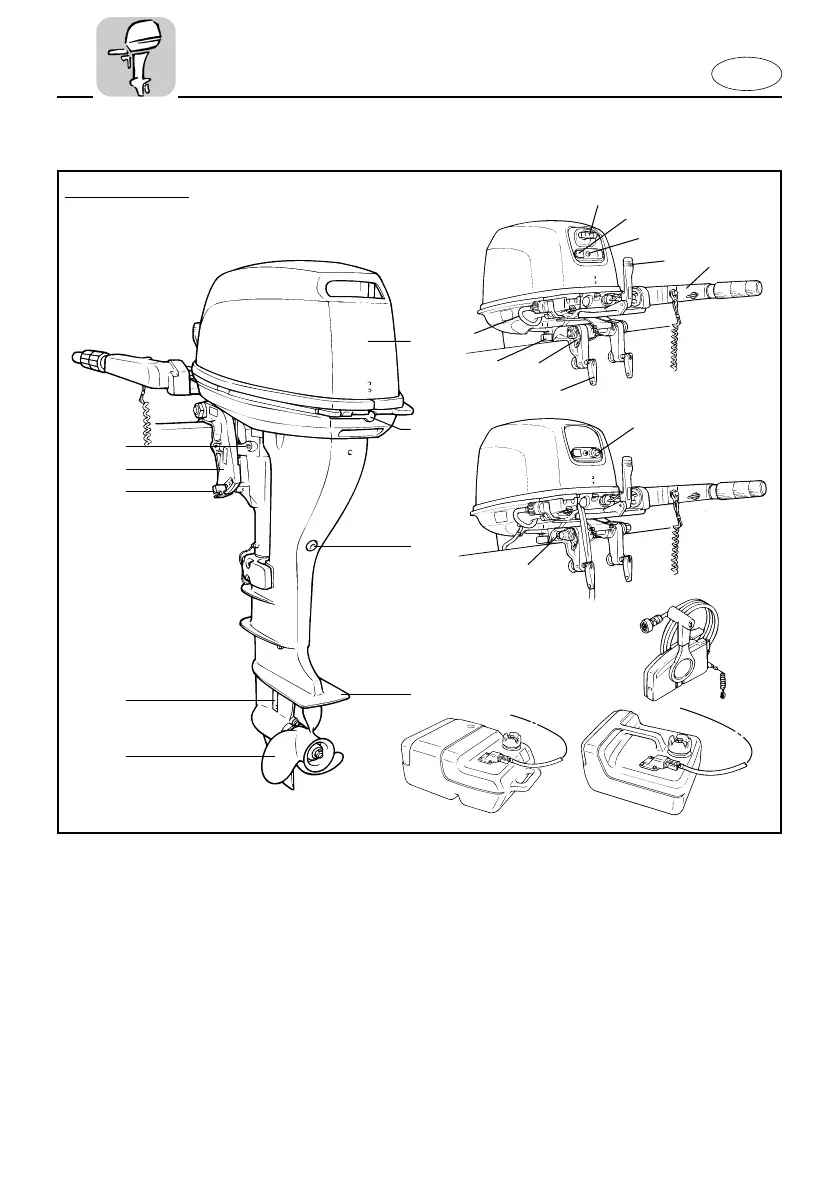

MAIN COMPONENTS
1 Top cowling
2 Top cowling lock lever
3 Oil drain bolt
4 Anti-cavitation plate
5 Propeller
6 Cooling water inlet
7 Trim angle adjusting rod
8 Clamp bracket
9 Steering friction adjusting screw
* 0 Reoil starter handle
q Choke knob
w Warning indicator
* e Gear shift lever
* r Tiller handle
t Clamp screw
y Rope attachment
u Tilt lock lever
* i Flushing device
* o Starter button
* p Tilt support knob
* a Remote control box
* sFuel tank
* May not be exactly as shown; also may not
be included as standard equipment on all
models.
F9.9/F13.5/F15
