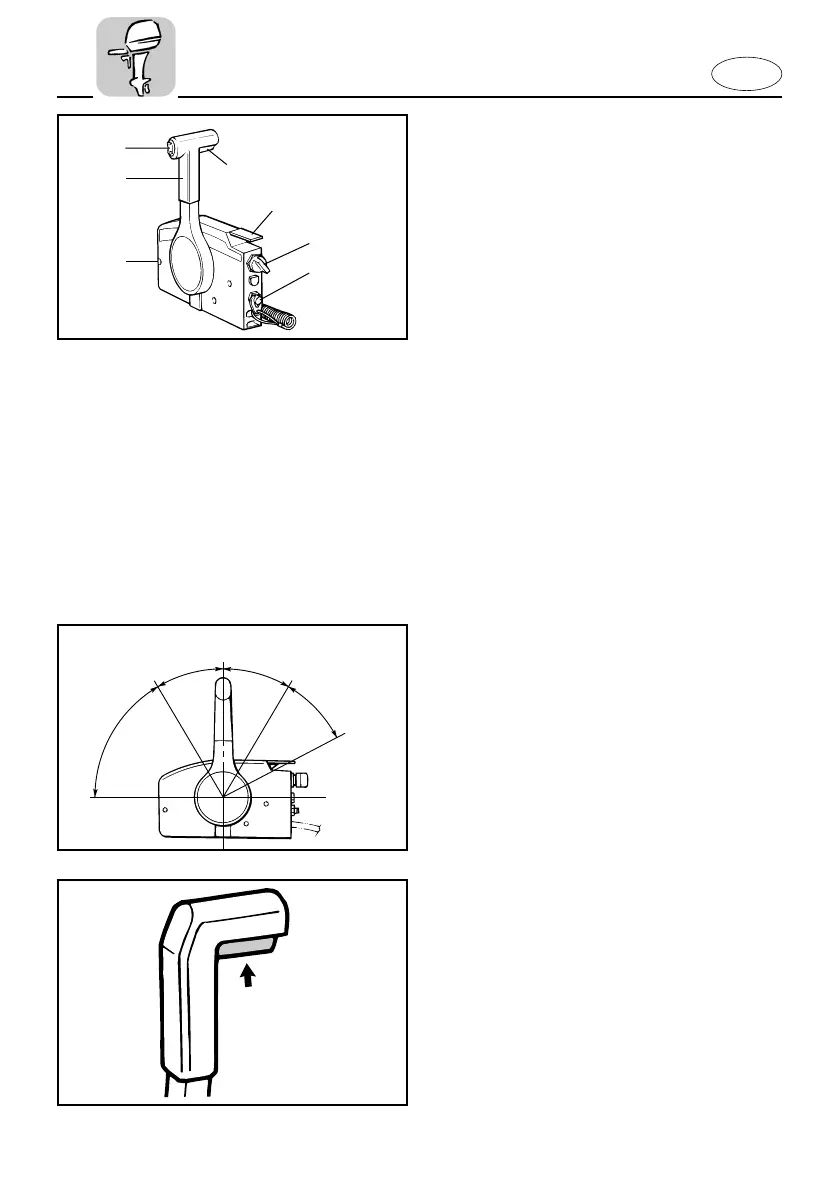

REMOTE CONTROL
Both the shifter and the throttle are actu-
ated by the remote control lever. In addi-
tion, this remote control also has the elec-
trical switches.
1 Remote control lever
2 Neutral interlock trigger
3 Neutral throttle lever
4 Main switch/Choke switch
5 Engine stop lanyard switch
6 Power tilt switch
7 Throttle friction adjusting screw
000608
w
q
e
r
t
y
u
R
N
F
q
w
e
r
t
y
u
u
t
r
y
701031
EMU00098
Remote Control Lever
Moving the lever forward from the Neu-
tral position engages Forward gear.
Pulling the lever back from Neutral
engages Reverse. The engine will contin-
ue to run at idle until the lever is moved
about 35° (a detent can be felt). Moving
the lever farther opens the throttle, and
the engine will begin to accelerate.
1 Neutral
2 Forward
3 Reverse
4 Shift
5 Fully closed
6 Throttle
7 Fully open
EMU00099
Neutral Interlock Trigger
To shift out of Neutral, the neutral inter-
lock trigger of the remote control lever
must first be pulled up.
701036
