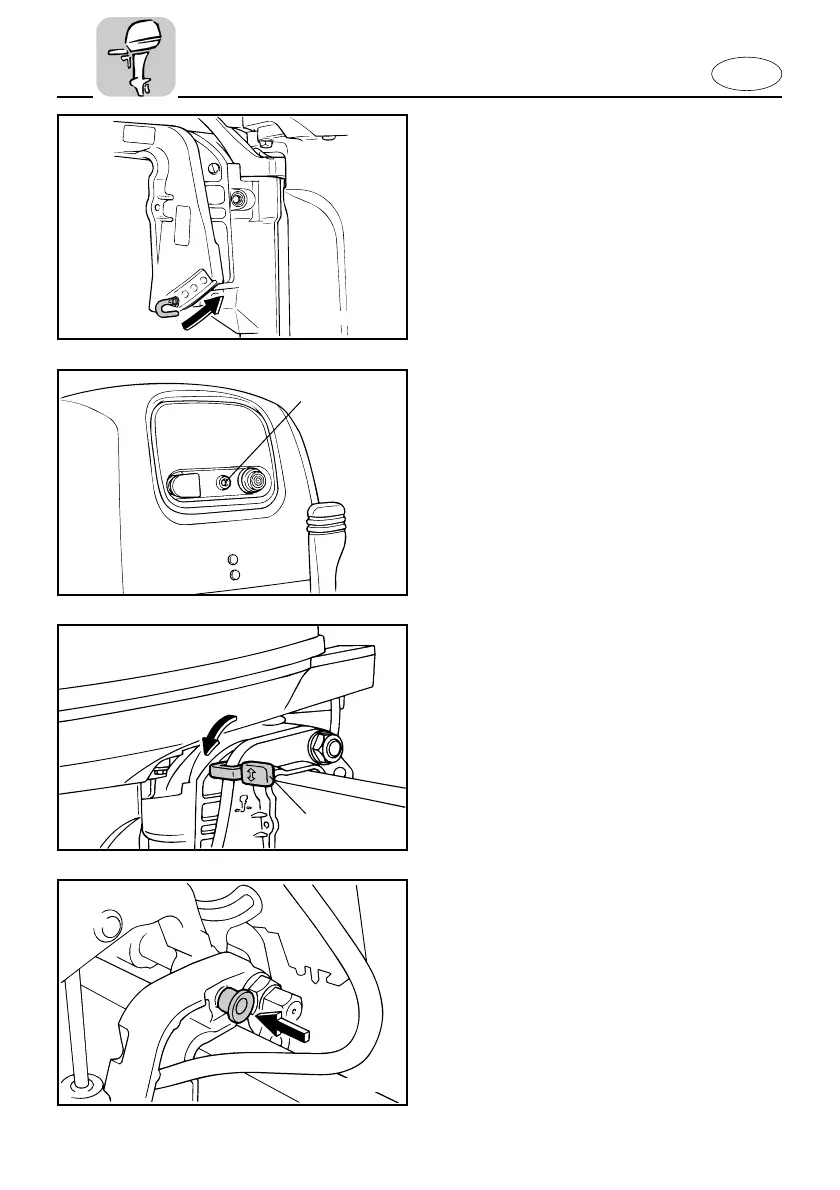

WARNING INDICATOR(S)
If the engine develops a condition moni-
tored by the warning system, an indicator
will come on.
Refer to the “WARNING SYSTEM” sec-
tion for details.
1 Warning indicator(s)
EMU01297
TRIM ANGLE ADJUSTING ROD
The position of the trim angle adjusting
rod determines the minimum trim angle
of the outboard motor in relation to the
transom.
001776
223013*
q
EMU00155
TILT SUPPORT KNOB
To keep the outboard motor in the tilted-
up position, push the tilt support knob
under the swivel bracket.
EMU00153
TILT LOCK MECHANISM
(for Manual tilt model)
The tilt-lock mechanism is used to pre-
vent reverse thrust from the propeller lift-
ing the outboard motor when reversing.
To lock it, set the tilt-lock lever in the Lock
position.
To release it, place the tilt-lock lever in the
Tilt position.
