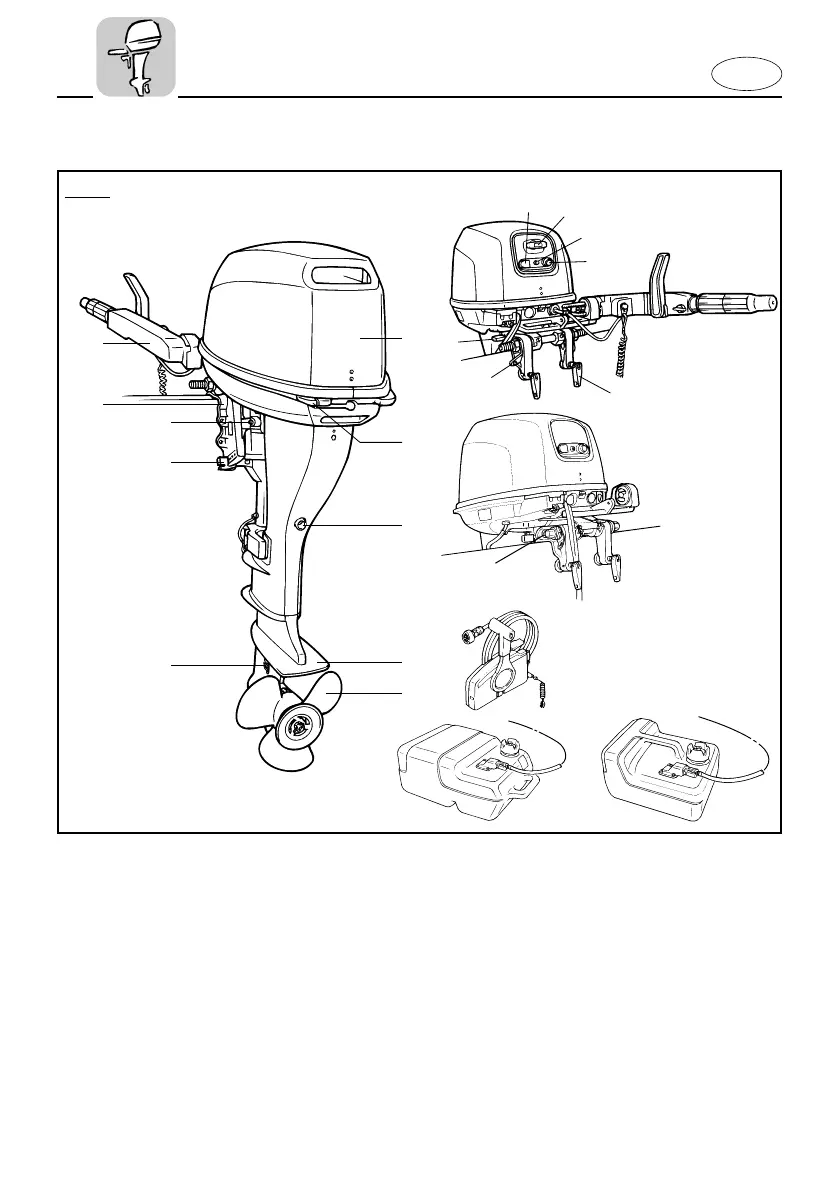

FT9.9
1 Top cowling
2 Top cowling lock lever
3 Oil drain bolt
4 Anti-cavitation plate
5 Propeller
6 Cooling water inlet
7 Trim angle adjusting rod
8 Steering friction adjusting screw
9 Clamp bracket
* 0 Tiller handle
q Choke knob
* w Reoil starter handle
e Warning indicator
* r Starter button
t Clamp screw
y Rope attachment
u Tilt lock lever
* i Tilt support knob
* o Remote control box
* p Fuel tank
* May not be exactly as shown; also may not
be included as standard equipment on all
models.
