CONNECTIONS
■ Connecting the AC power cord
Plug the power cord into an AC wall outlet.
■ AC OUTLET(S) (SWITCHED).......2 outlets
Use these outlets to connect the power cords from your
other components to this unit. Power to the AC
OUTLET(S) is controlled by this unit’s STANDBY/ON
(or SYSTEM POWER and STANDBY). The outlet(s)
supply power to any connected component whenever this
unit is turned on. The maximum power (total power
consumption of components) that can be connected to the
AC OUTLET(S) is 100 W.
■ Memory back-up
The memory back-up circuit prevents the stored data from
being lost even if this unit is in the standby mode.
However if the power cord is disconnected from the AC
wall outlet, or the power supply is cut for more than one
week, the stored data will be lost.
When all connections are complete, turn on the power of
this unit.
Press STANDBY/ON (or SYSTEM POWER on the
remote control) to turn on the power of this unit.
Connecting the power supply cord Turning on the power
VOLUME
AUTO/MAN'L MONO
VIDEO L AUDIO R
MAN'L/AUTO FMLEVELNEXTEDIT
EFFECT
MEMORY
FM/AMPRESET/TUNING
A/B/C/D/E
l PROGRAM h
BASS/TREBLE
l
PRESET/TUNING/CH
h
TUNING MODE
INPUT MODE
TONE CONTROL
STRAIGHT
SPEAKERSPHONES
SILENT CINEMA
STANDBY
/ON
BA
MULTI CH
INPUT
VIDEO AUX
INPUT
DISPLAYCATEGORYSEARCH MODE
XM
CODE SET
STANDBY
SYSTEM
POWER
CD
MD/CD-R
TUNER
V-AU XDV D
AMP
POWER POWER
REC
AUDIO
DISC SKIP
AVTV
VCR
DTV/CBL
MULTI CH IN
SLEEP
TV
SYSTEM POWER
(U.S.A. model)
STANDBY/ON
STANDBY
/ON
SYSTEM
POWER
or

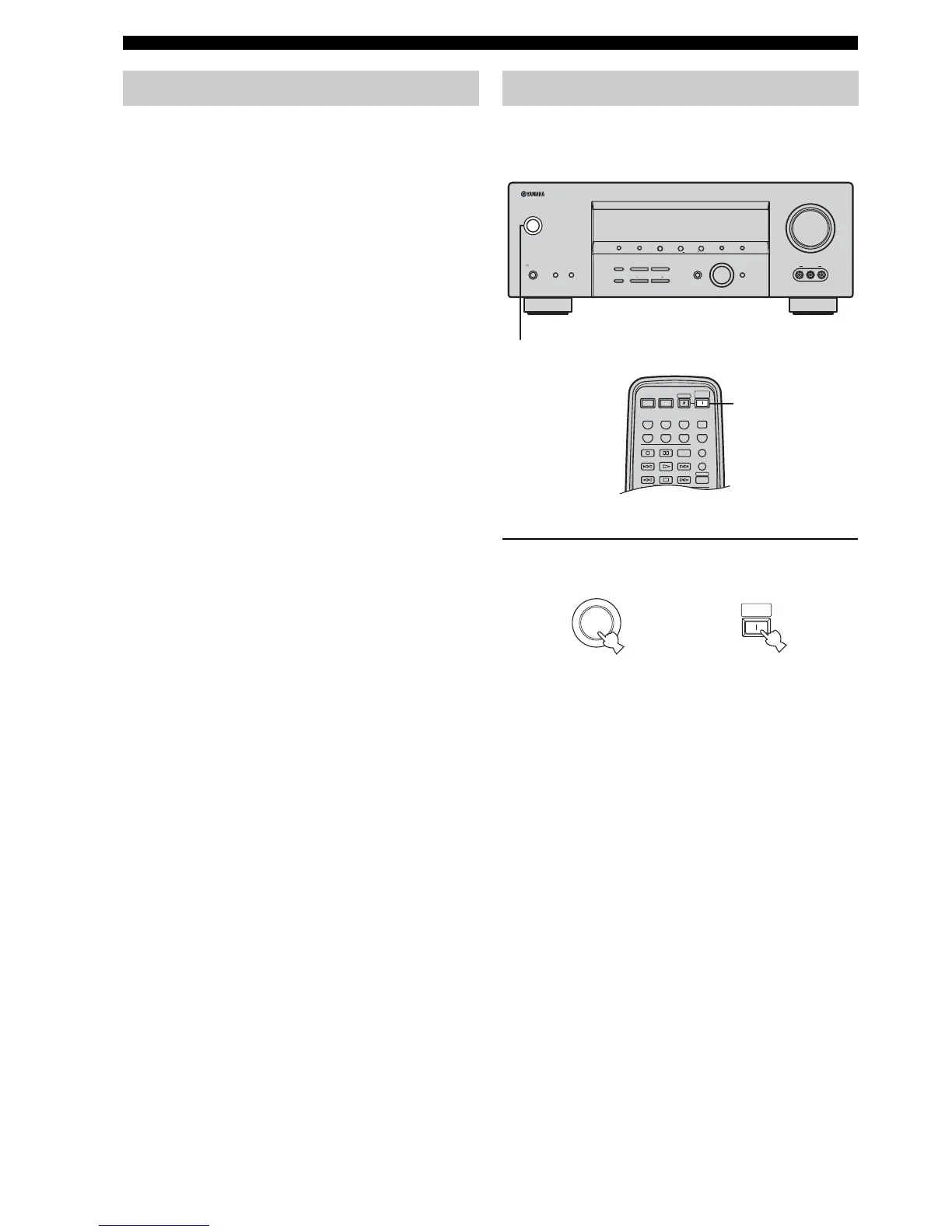

Front panel
