CONNECTIONS
■ Connections for DVD playback
Be sure to connect your video source components in the same way you connect your video monitor to this unit if V.CONV (see page 70)
is set to OFF. For example, if you connect your video monitor to this unit using a VIDEO connection, connect your video source
components to this unit using the VIDEO connections. (Even when V.CONV is set to OFF, S-video signals input from your video
source component are automatically converted to composite signals in this unit.)

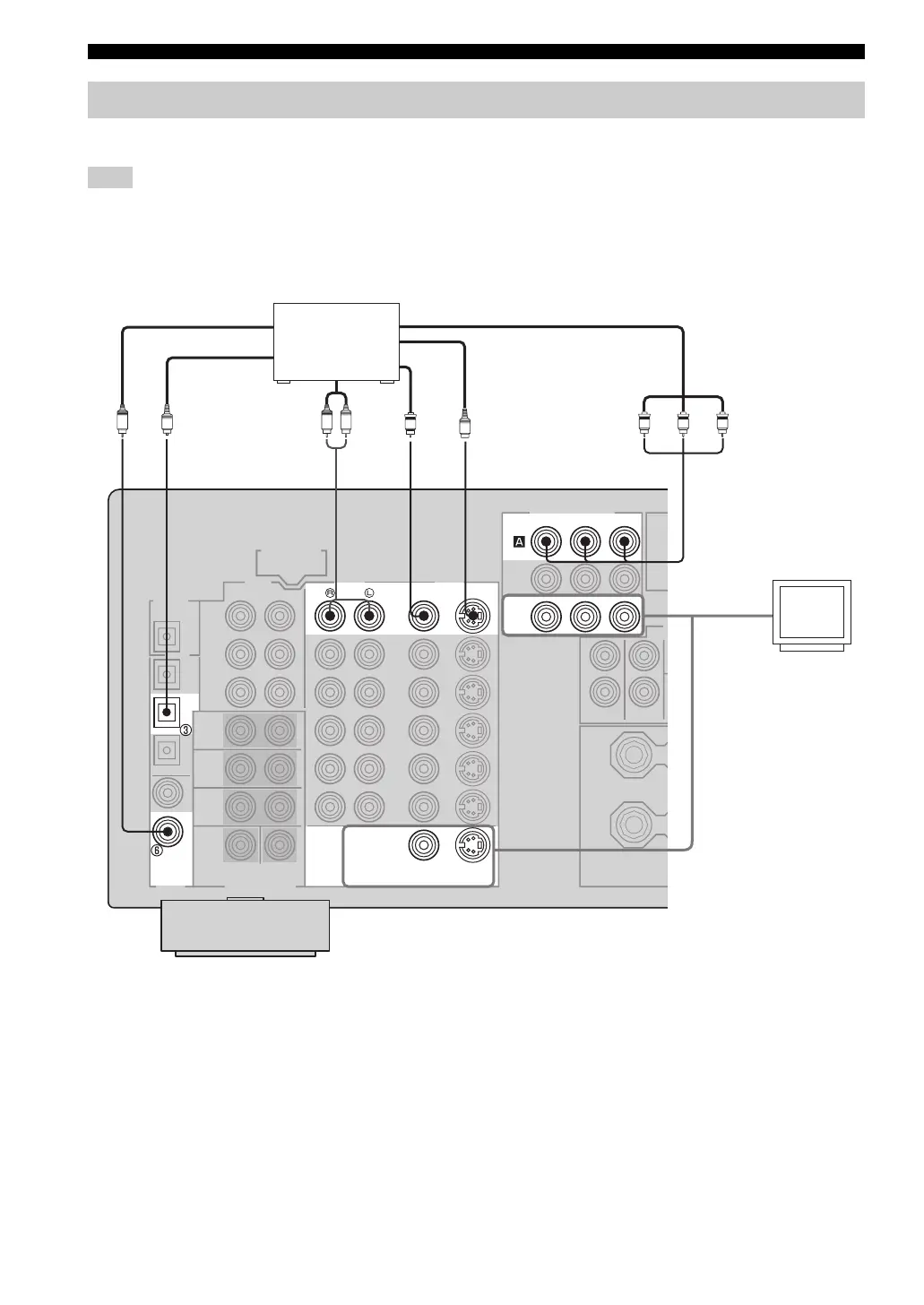

Connecting video components
Note
AUDIO
DIGITAL
INPUT
DVD
DVD
COAXIAL
DVD
VIDEO
MONITOR
OUT
DVD
COMPONENT VIDEO
PR PB Y
VIDEO S VIDEO
VIDEO S VIDEO
MONITOR OUT
LRC
O
S
P
R PB Y
V
DVD player
Video
monitor
Optical out
Video out
Audio out
Video in
Coaxial out
