16 En

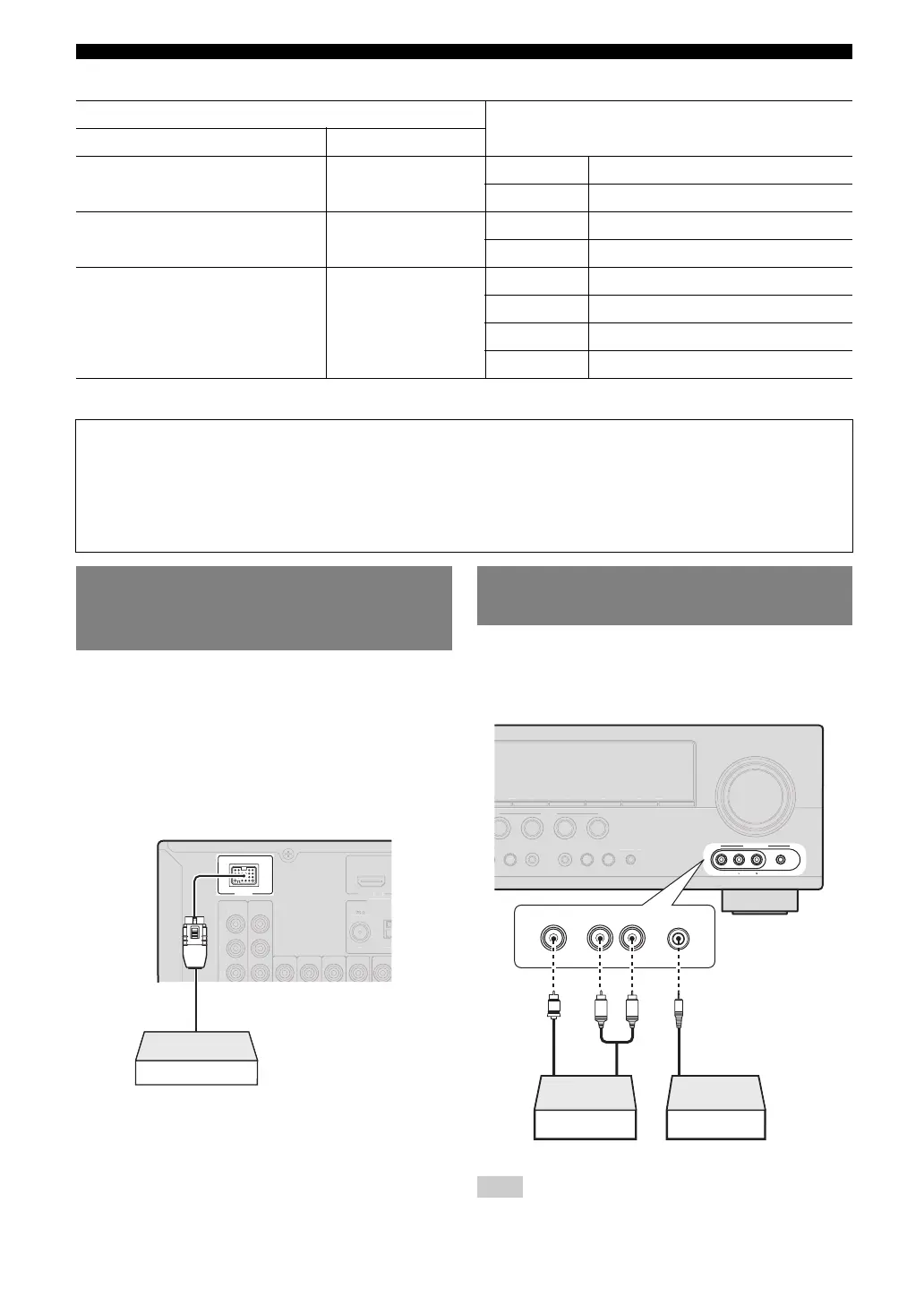

Connections
■ Audio player
y
• We recommend connecting the coaxial digital output terminal of a CD player to the AV3 jack.
This unit has the DOCK jack, to which you can connect a
Yamaha iPod universal dock (YDS-11, sold separately) or
a Bluetooth wireless audio receiver (YBA-10, sold
separately). You can play an iPod or a Bluetooth
component with this unit by connecting it to the DOCK
jack.
Use a dedicated cable for connection between the dock/
receiver and this unit.
Use the VIDEO AUX jacks on the front panel to connect a
game console or a video camera to this unit. Be sure to
turn down the volume of this unit and other components
before making connections.
Note
• When external components are connected both the PORTABLE jack and
AUDIO jack, sound input from the PORTABLE jack is output.
Output jacks on the connected external component
Input sources/jacks of this unit
External components Output jacks
External component with optical digital
output
Optical digital output AV 1 (TV) OPTICAL
AV 4 OPTICAL
External component with coaxial digital
output
Coaxial digital output AV 2 COAXIAL
AV 3 (CD) COAXIAL
External component with analog audio
output
Analog audio output AV 5 AUDIO
AV 6 AUDIO
AUDIO 1 AUDIO
AUDIO 2 AUDIO
About audio/video output terminals
Among the analog audio and analog video signals input to this unit via input terminals, the audio/video signals of the
selected input sources are output from the AV OUT jack and AUDIO OUT jack. An HDMI input signal,
COMPONENT VIDEO input signal or digital audio input signal cannot be output.
When using the AV OUT jack: connect an external component to the composite or analog audio terminal.
When using the AUDIO OUT jack: connect an external component to the analog audio terminal.
Connecting a Yamaha iPod universal
dock or Bluetooth™ wireless audio
receiver
DOCK
UNBAL
.
FM
G
N
D
ANTENNA
V
IDE
O
P
R
P
B
Y
V
IDE
O
HDMI
OUT
CO
MP
O
NENT
Yamaha iPod universal
dock/Bluetooth wireless
audio receiver
Using the VIDEO AUX jacks on the
front panel
VIDEO
AUDIO
PORTABLE
VIDEO
AUX
OG
RA
M
S
TRAI
G
HT
INPUT
O
PTIMIZE
R
MI
C
V
O
L
U
M
E
EFFE
CT
h
l
h
B
D/DV
D
TV
CD
RADI
O
SC
ENE
P
RE
S
ET
l
h
l
h
T
UNIN
G
FM
AM
DIRE
C
T
R
L
AUDIO
VIDEO
V
L
R
PORTABLE
Game console/Camcorder Music player
Analog audio output Analog audio output Video output
