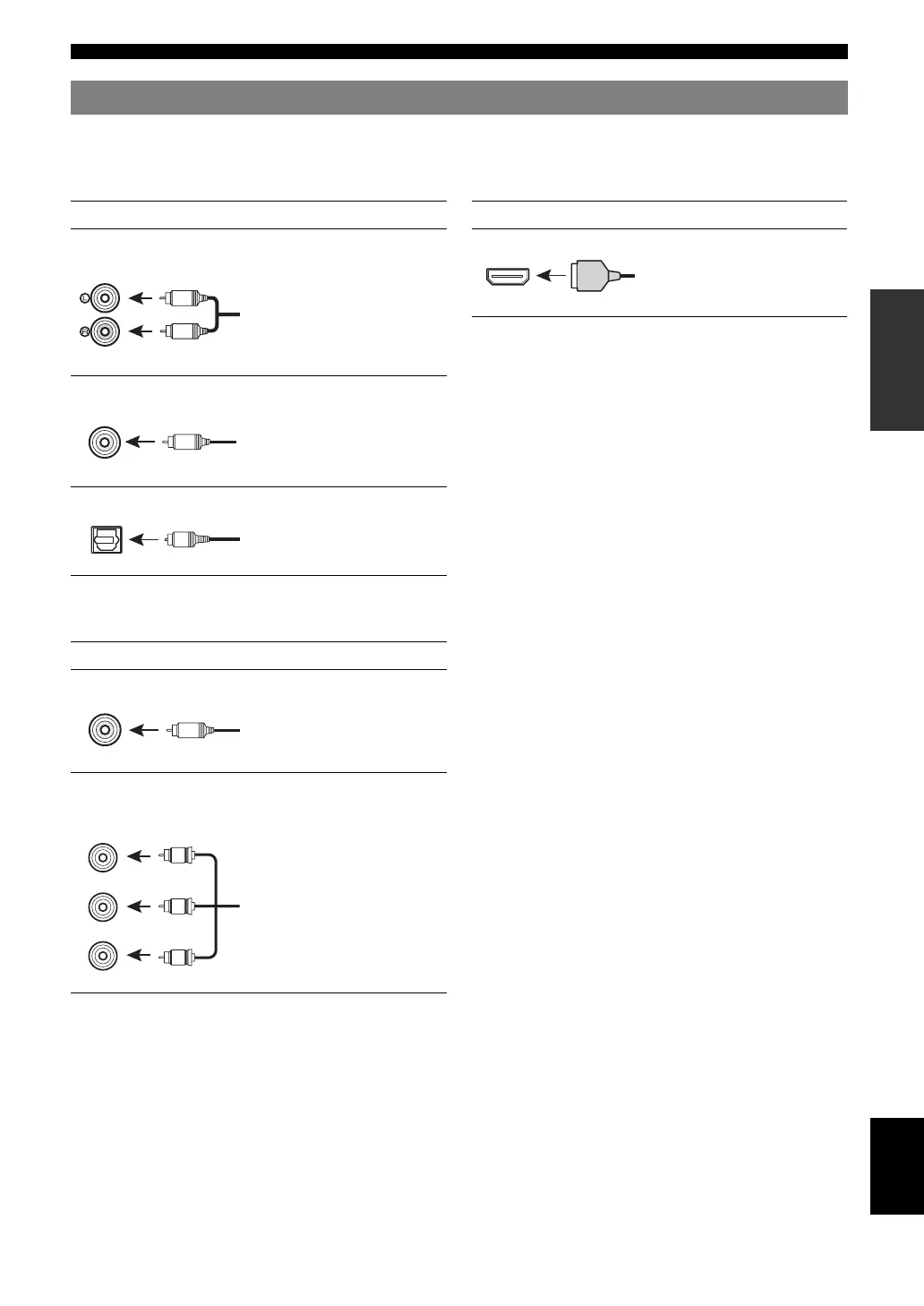

This unit has the following input and output jacks. Use jacks and cables appropriate for components that you are
connecting.
■ Audio jacks
■ Video jacks
■ Video/audio jacks
y
• We recommend that you use a commercially available 19-pin HDMI
cable no longer than 5 meters (16 feet) with the HDMI logo printed on it.
• Use a conversion cable (HDMI jack ↔ DVI-D jack) to connect this unit
to other DVI components.
• You can check the potential problem about the HDMI connection
(page 42).
Information on jacks and cable plugs
Jack and cables Description
Analog audio jacks To transmit conventional analog
stereo audio signals. Use stereo pin
cables.
COAXIAL jacks To transmit coaxial digital audio
signals. Use pin cables.
OPTICAL jacks To transmit optical digital audio
signals. Use optical fiber cables.
Jack and cables Description
VIDEO jacks To transmit conventional
composite video signals. Use pin
cables.
COMPONENT VIDEO
jacks
To transmit component video
signals that include luminance (Y),
chrominance blue (PB) and
chrominance red (PR) components.
Use component video cables.
L
R
(white)
(red)
COAXIAL
C
(orange)
OPTICAL
O
VIDEO
V
(yellow)
PR
PB
Y
COMPONENT
VIDEO
P B
Y
P
R
(red)
(blue)
(green)
Jack and cables Description
HDMI jacks To transmit digital video and
digital audio signals. Use HDMI
cables.
HDMI
HDMI

Yamaha HTR-6295 Specifications

General

Channels	7.2
Frequency Response	10 Hz - 100 kHz
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
Input Impedance	47 kΩ
Audio D/A Converter	192kHz/24-bit
Tuner Presets	40
Surround Sound	Yes
Bluetooth	No
Wi-Fi	No
Inputs	Digital optical, Digital coaxial, Analog audio
Outputs	HDMI
HDMI	Yes
Input Sensitivity	200 mV
Surround Sound Effects	Dolby Digital, DTS
DSP Presets	17
Output Impedance / Channel	8 Ω
Video Inputs/Outputs	HDMI
Audio Inputs/Outputs	Analog audio, digital coaxial, digital optical, HDMI
Dimensions (W x H x D)	435 mm
