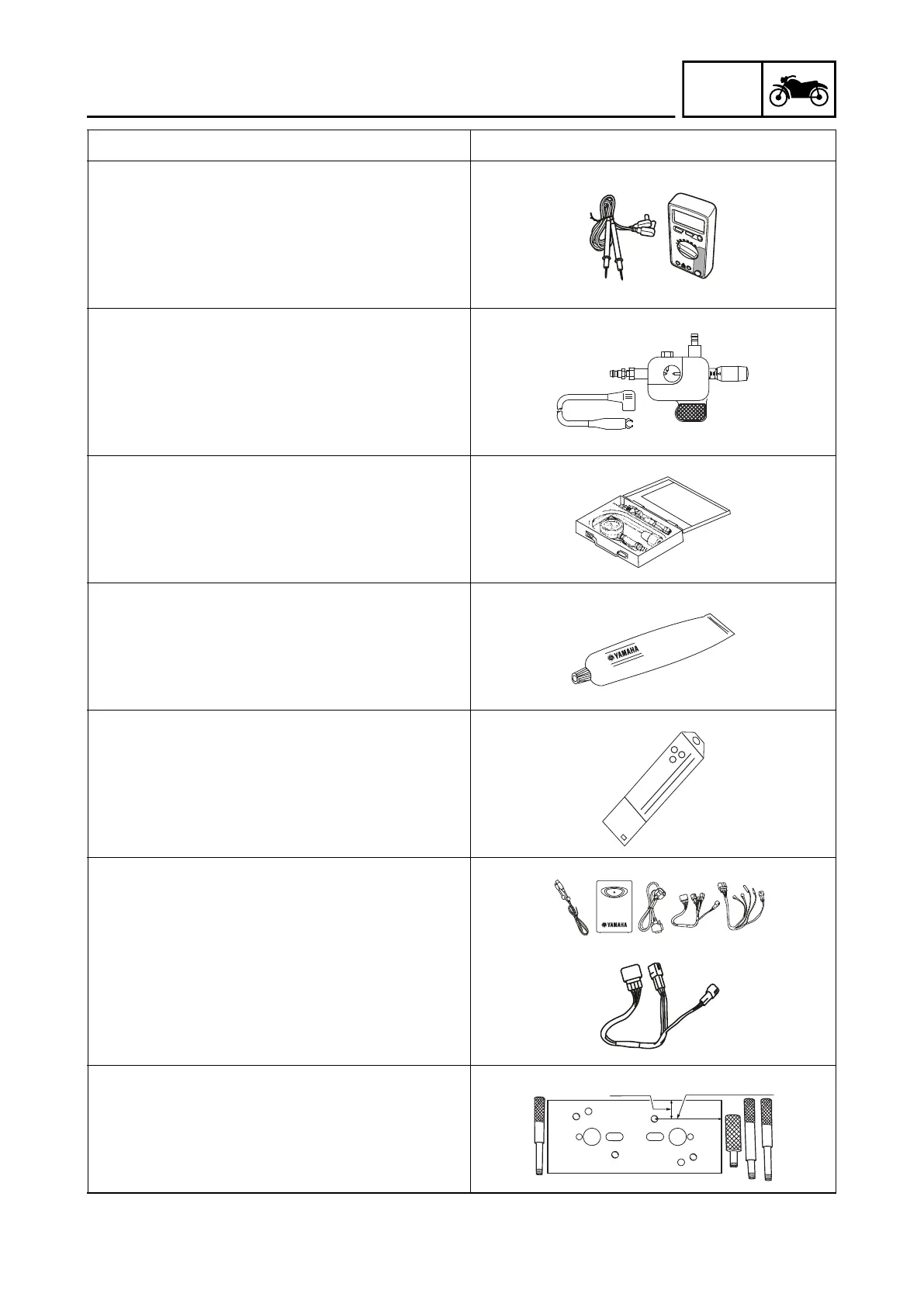

SPECIAL TOOLS
1-9
GEN
INFO
Multimeter
INS-003
(90890-03189)
This instrument is necessary for checking the elec-
trical system.
Ignition checker
INS-007
(90890-06754)
This tool is used to check efficiency of ignition at
spark plug.
Compression gauge
INS-009
(90890-03081)
This instrument is used to measure the engine
compression.
Yamaha bond No.1215
TG-1215
(90890-85505)
This bond is used to seal two mating surfaces (e.g.,
crankcase mating surfaces).
Yamaha diagnostic tool
INS-018
(90890-03267)
This tool is used to diagnose electrical fault in ad-
vance fuel injection system.
Yamaha diagnostic tool (Ver.3)
INS-019
(90890-03264)
This tool is used to diagnose electrical fault in ad-
vance fuel injection system.
Sub harness 3
(90890-03266)
This tool is used to connect FI YDT coupler to
adapter interface (BS-VI models).
Fuel injector plate
INS-020
This tool is used to hold the fuel infector on injector
cleaning machine.
Tool name/Tool No. Illustration
Y
D
T
16 mm
58 ± 0.10 mm
