4-2
OIL PUMP
EAS30340
CHECKING THE OIL STRAINER
1. Check:
• Oil strainer
Damage Replace.
Contaminants Clean with solvent.
EAS30337
CHECKING THE OIL PUMP
1. Check:
• Oil pump drive gear
• Oil pump driven gear
• Oil pump housing
• Oil pump housing cover
Cracks/damage/wear Replace the oil
pump.

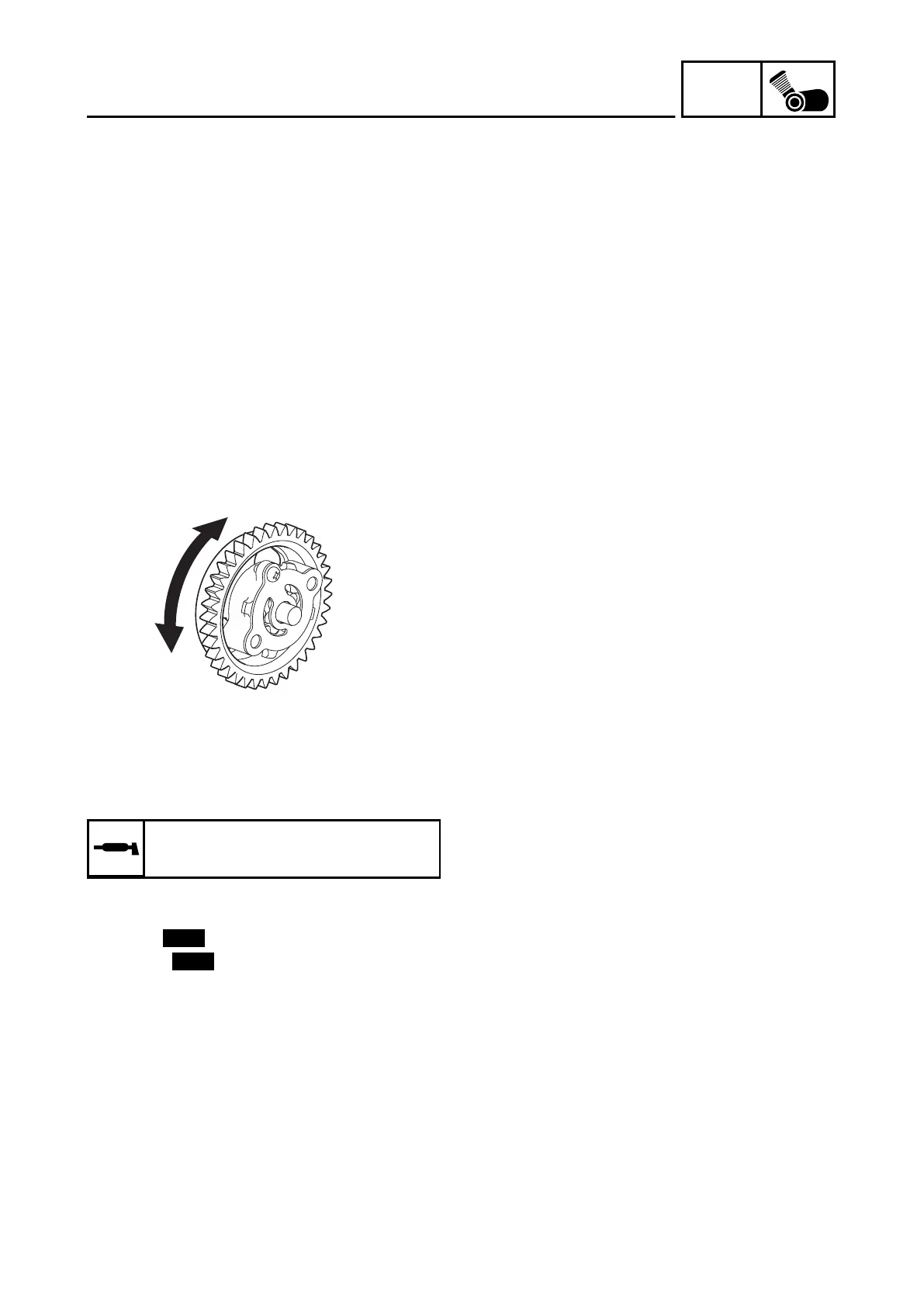

2. Check:
• Oil pump operation
Rough movement Repeat steps (1) or re-
place the oil pump.
EAS30342
ASSEMBLING THE OIL PUMP
1. Lubricate:
• Inner rotor
• Outer rotor
• Oil pump shaft
2. Install:
• Oil pump assembly
• O-ring
• Oil seal
• Oil pump cover
Recommended lubricant
Engine oil
B7JF8197E1.book Page 2 Tuesday, June 29, 2021 2:28 PM
