DESCRIPTION
EAU10410

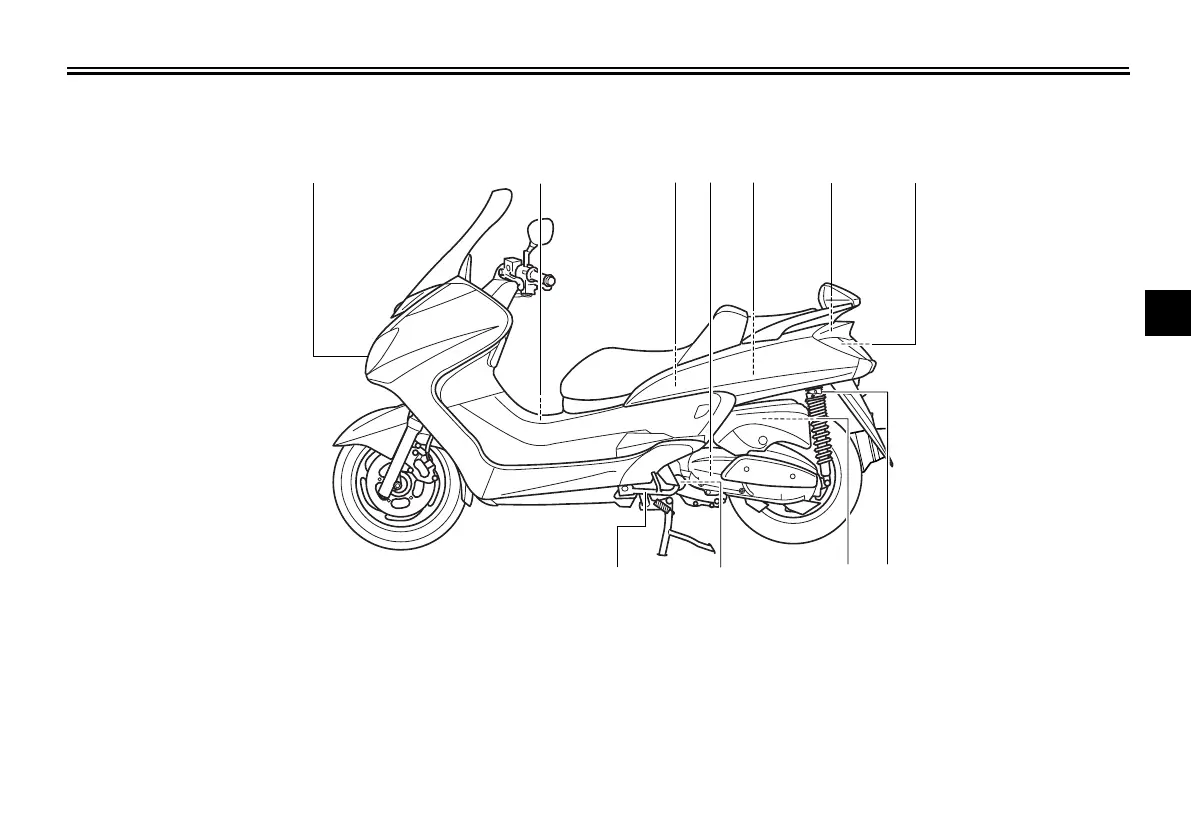

Left view
10
1
2 3
5
67
8
4
11 9
1. Headlight (page 7-34)
2. Fuel tank cap (page 4-9)
3. Rear storage compartment (page 4-14)
4. V-belt case air filter element (page 7-19)
5. Owner’s tool kit (page 7-2)
6. Fuses (page 7-32)
7. Battery (page 7-31)
8. Shock absorber assembly spring preload adjusting ring (page 4-16)
9. Air filter element (left) (page 7-19)
10.Engine oil filter element (page 7-14)
11.Sidestand (page 4-16)
✼✦✧✯✪✥✲✣ ✤
