Yamaha MAJESTY YP400A - Storage Compartments

INSTRUMENT AND CONTROL FUNCTIONS
4-14
2
3
4
5
6
7
8
9
3. Slide the rider seat forward or
backward to the desired position.
4. Install bolts and securely tighten
them.
5. Close the rider seat.
EAU14494

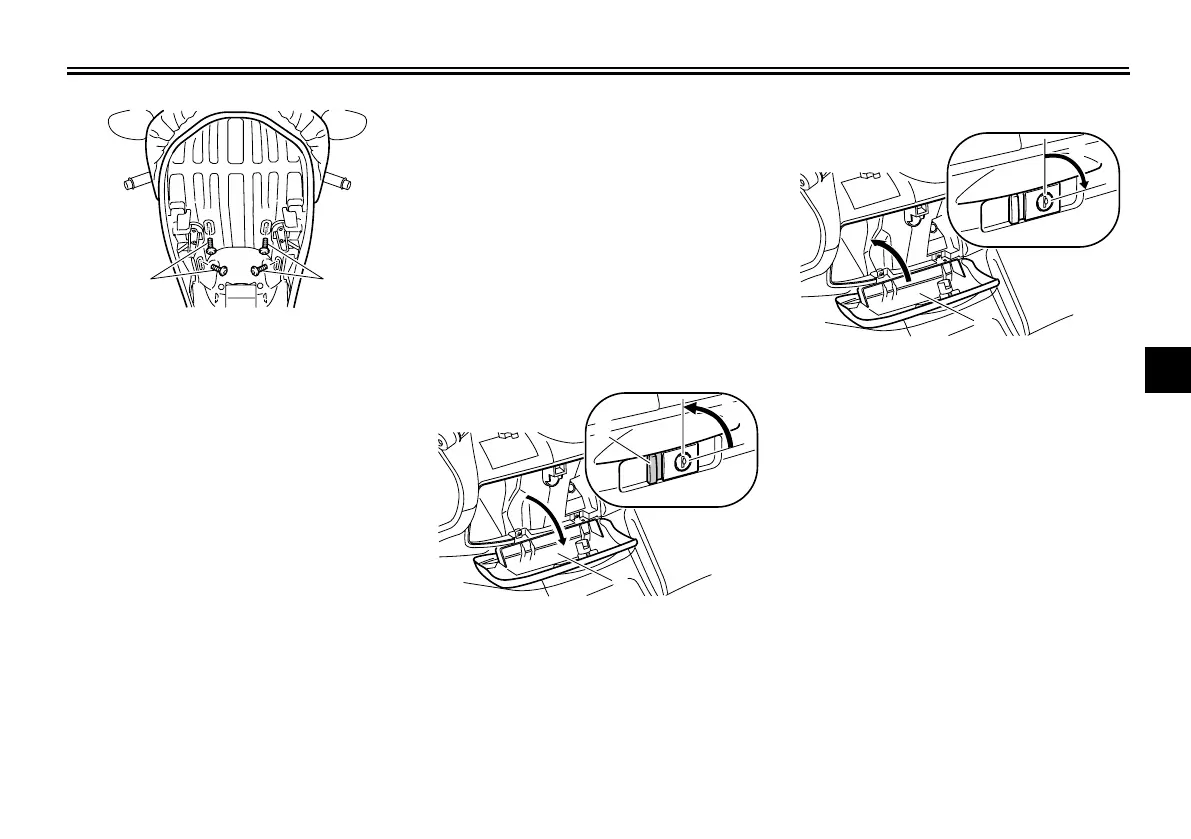

Storage compartments
Front storage compartment A
To open the storage compartment
when it is locked, insert the key in the
lock, turn it counterclockwise, and then
grasp the lock while pushing the button
in.
To open the storage compartment
when it is unlocked, simply grasp the
lock while pushing the button in.
To lock the storage compartment, push
the lid into the original position, insert
the key in the lock, turn it clockwise,
and then remove it.
Front storage compartment B
To open the storage compartment,
slide the lever up, and then pull on the
lever.
1. Bolt
11
1. Open.
2. Button
3. Lid
2
3
1
1. Lock.
2. Lid
2
1
✼✦✧✯✪✥✲✣ ✤✧  
