PERIODIC MAINTENANCE AND ADJUSTMENT
7-33
1
2
3
4
5
6
7
8
9
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.

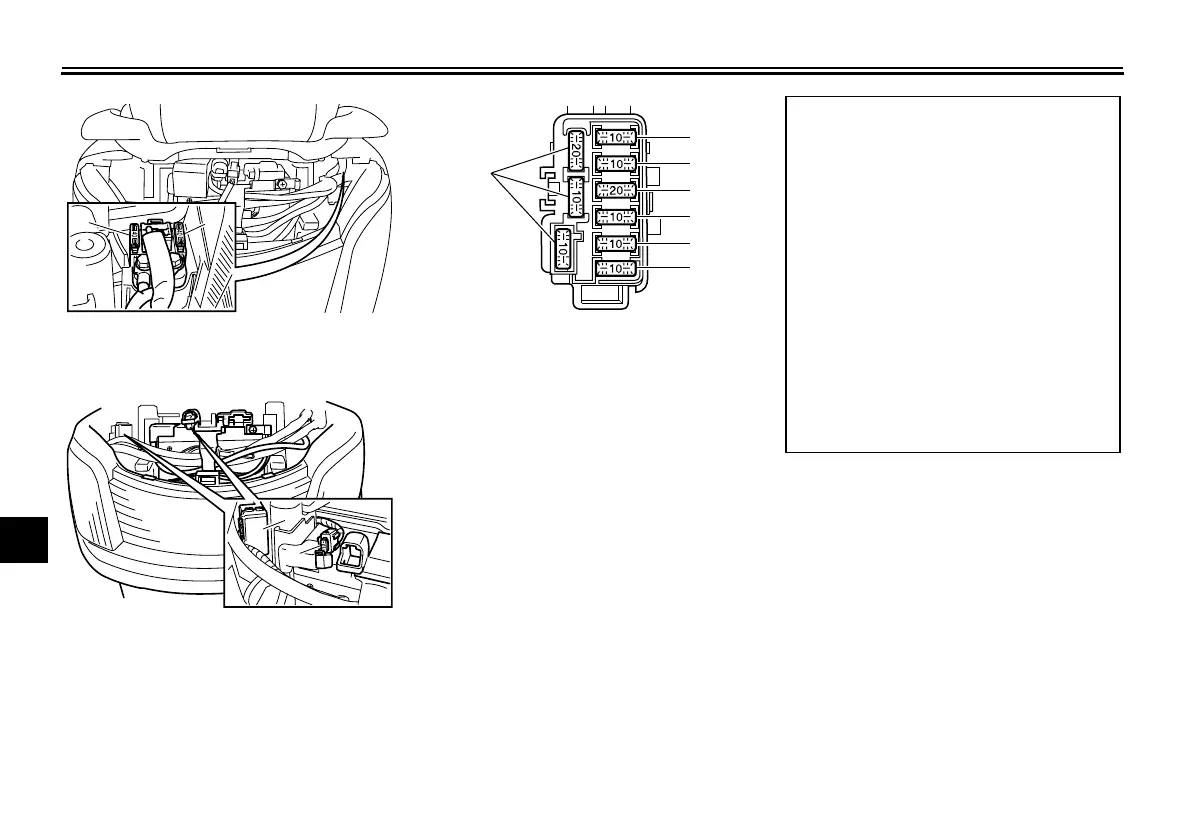

1. Spare main fuse
2. Main fuse
1. Fuse box
2. Taillight fuse
1
2
1
2
1. Ignition fuse
2. Signaling system fuse
3. Headlight fuse
4. Radiator fan fuse
5. Backup fuse (for clock)
6. Fuel injection system fuse
7. Spare fuse
7
1
2
3
4
5
6
Specified fuses:
Main fuse:
40.0 A
Ignition fuse:
10.0 A
Signaling system fuse:
10.0 A
Headlight fuse:
20.0 A
Taillight fuse:
10.0 A
Radiator fan fuse:
10.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
10.0 A
✼✦✧✯✪✥✲✣ ✦✦
