MFC10 Sample Setups
MIDI Sequencer or Rhythm
Programmer System

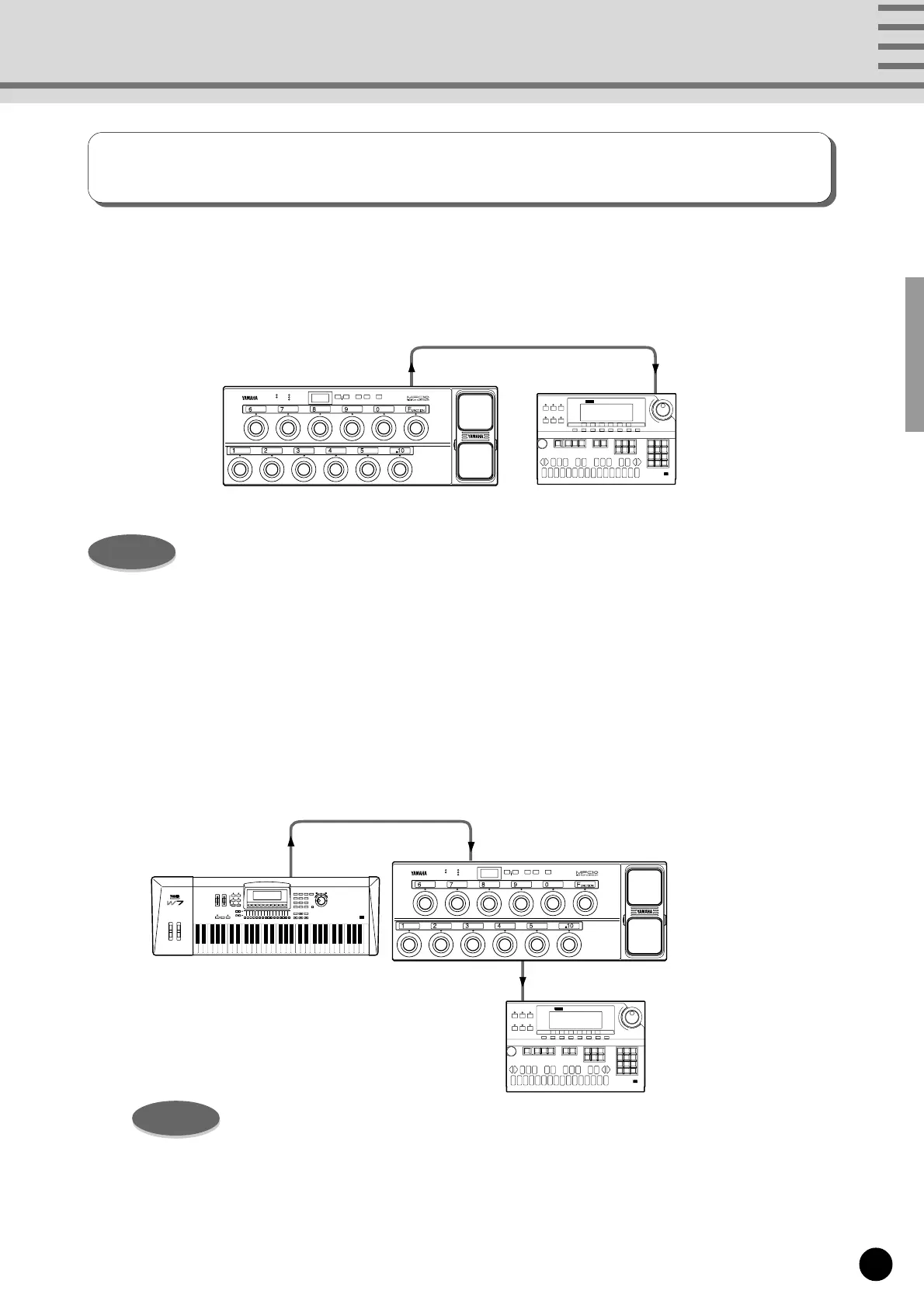

•Connect the MFC10 to a sequencer (Yamaha QY300, QY22, QY8, etc.) or rhythm
programmer (Yamaha RY20, RY8, etc.).
Both the MIDI sequencer or rhythm programmer’s receive channel number and
the MFC10’s Memory Status (MIDI channel number) should be set to the same
MIDI channel number.
Also, the MFC10 does not transmit a timing clock so the sequencer or rhythm
programmer’s clock should be set to [Internal].
Setting
STATUS
DATA/CTRL
BANK MSB/MAX
BANK LSB/MIN
TOGGLE ON-OFF
/NUMBER OF PGM
DEC
/NO
INC
/YES
MEMORY
EDIT
PC
EDIT
WRITE
/EXIT
±108.8.8.
MIDI IN
MIDI OUT
QY300
MUSIC SEQUENCER
Sequencer/rhythm programmer
Yamaha QY300, RY20, etc.
Both the MIDI keyboard’s transmit channel number and the MFC10’s
Program Change Memory Status (MIDI channel number) and the se-
quencer/rhythm programmer’s receive channel number should be set to
the same MIDI channel number.
Also, the MFC10 does not transmit a timing clock (MIDI signals received by
the MFC10 will be sent directly to the MIDI OUT terminal) so the
keyboard’s clock should be set to [Internal] and the sequencer/rhythm
programmer’s clock should be set to [External].
Setting
STATUS
DATA/CTRL
BANK MSB/MAX
BANK LSB/MIN
TOGGLE ON-OFF
/NUMBER OF PGM
DEC
/NO
INC
/YES
MEMORY
EDIT
PC
EDIT
WRITE
/EXIT
±108.8.8.
MIDI IN
MIDI IN
MIDI OUT
MIDI OUT
QY300
MUSIC SEQUENCER
Keyboard
Yamaha VL1/VL7, W5/W7, etc.
Sequencer/
Rhythm Programmer
Yamaha QY300, RY20, etc.
•Connect a keyboard and the MFC10, the MFC10 and a sequencer or rhythm
programmer.
The sequencer/rhythm programmer’s start/continue/stop, etc., can be controlled according to Function
data transmitted from the MFC10.
As the keyboard’s MIDI signal runs through the MFC10, the MFC10 can add function data
(section control data, etc.). The MFC10’s data is then merged with keyboard data and transmitted
to the sequencer or rhythm programmer.
