117
MOTIF XS6/MOTIF XS7/MOTIF XS8

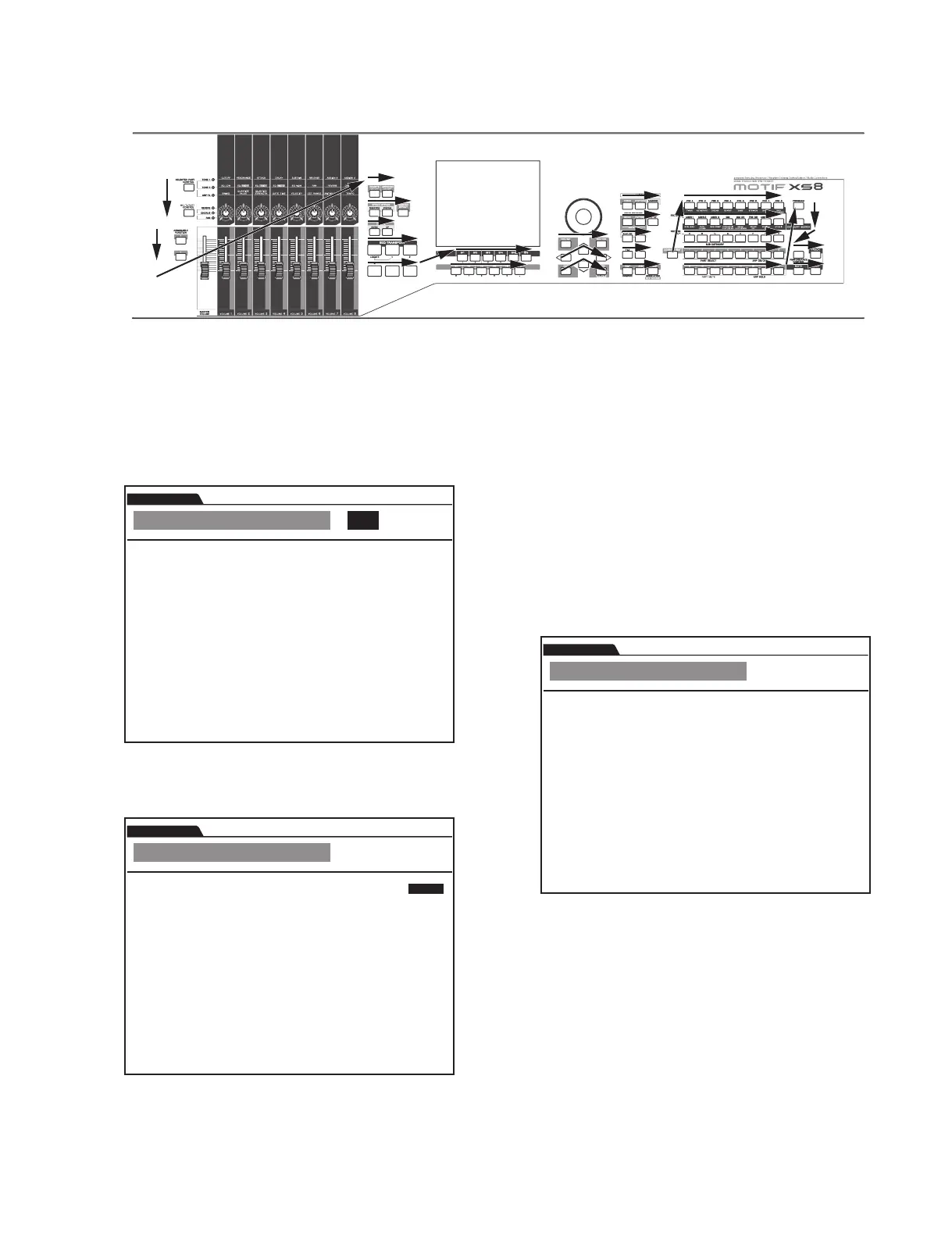

<Order for pressing switches>
* This illustration shows XS8.
xxxxxxx: Switch Name
yyyyyyy: LED color (Green, Orange, Red)
OK
03 :
Panel SW
TEST
MOTIF XS Test Program
Press
[ xxxxxxx ]
LED = [ yyyyyyy ]
[Check item]
Check that all the buttons are normal.
Check that all the LEDs are normal.
[Judgment indication]
OK
Example of an NG
xxxxxxx: Switch Name
yyyyyyy: LED color (Green, Orange, Red)
03 :
Panel SW
TEST
MOTIF XS Test Program
Press
[ xxxxxxx ]
LED = [ yyyyyyy ]
NG
[Test contents]
Check that the encoder works normally.
Compare the Encoder data from the EBUS controller with
the target value on the LCD.
[Testmethod]
Turn the encoder clockwise according to indications on the
LCD and then turn the encoder counterclockwise.
+0
"
+8(+0)
"
-8
Press
[ENTER]
04 :
Encoder
TEST
MOTIF XS Test Program
[MIDI code output for judgment result]
OK: A0 04 02 <== (If all the panel buttons are normal)
NG: No output
[How to quit test]
When all the buttons are normally checked and indicated as
OK, the test will be completed and item selection condition will
be selected.
If the judgment is NG on the way, refer to “D. How to carry
out tests when judged as NG
” (page 113) to proceed the
test program.
[Others]
None
T04: Encoder
(Test Code: A00500)
[First indication]
To Next Page
