Yamaha MOTIF XS6 Service Manual

172
MOTIF XS6/MOTIF XS7/MOTIF XS8
Checking the written version
1
Turn on the power of the MOTIF XS.

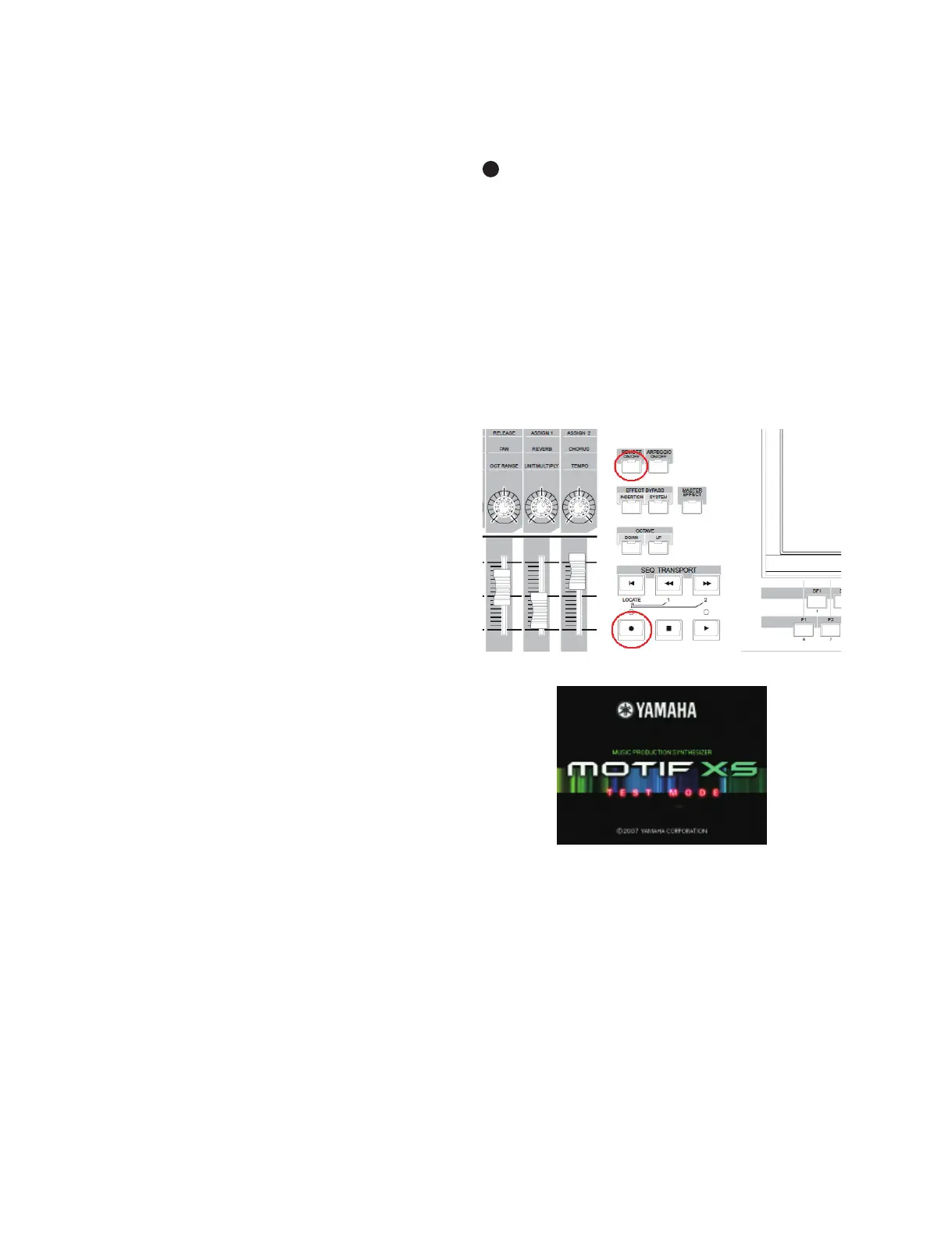

When the screen as in Fig. 1 appears just
after the power is turned on, simultaneously
press and hold the [REC] and [REMOTE]
switches on the panel shown in Fig. 5 until
the screen as in Fig. 6 (Test program start-
up screen) appears.
The way to enter the test program is the same as the
entry method for the fi rmware updating except that
the panel switches to be pressed simultaneously are
different.
2
The version will be shown in the entry screen
for the test program. Check the version.
MOTIF XS Firmware Versioin ?.??.?
(Fig. 5)
(Fig. 6)
9
When the verifying check is completed, the
result will be shown as OK or NG. If OK ap-
pears as follows, the writing procedure is
fi nished without any problem.
Verify… OK
Finish.
Please turn off.
It will take about 15 minutes for the whole updating
procedures.

Yamaha MOTIF XS6 Specifications

General

Polyphony	128 notes
Wave ROM	355MB (when converted to 16-bit linear format)
Type	Workstation Synthesizer
Keyboard	61 keys
Voices	1, 024 normal voices + 64 drum kits
Effects	Reverb x 9 types, Chorus x 22 types
Sequencer	16 tracks
Display	320 x 240 dot, backlit LCD
Connectors	MIDI IN/OUT/THRU, USB TO HOST, USB TO DEVICE
Storage	USB storage device
