171
MOTIF XS6/MOTIF XS7/MOTIF XS8
1
Insert a USB FLASH MEMORY to which the
designated fi le “8E54OS_.PGM” is written in
advance to the [TO DEVICE] connector on
the rear side of the MOTIF XS.
2
Turn on the power of the MOTIF XS.

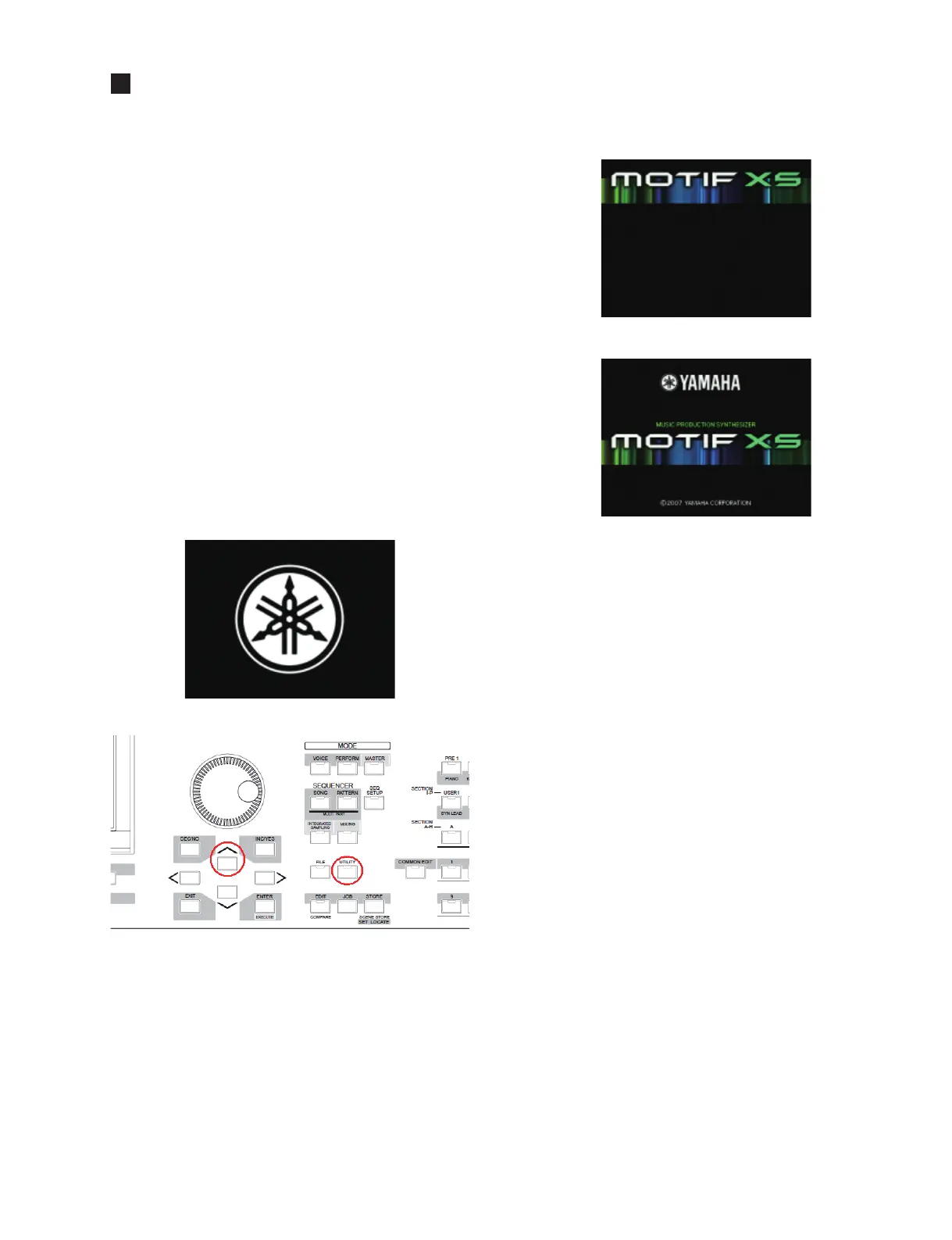

When the screen as in Fig. 1 appears just
after the power is turned on, simultane-
ously press and hold the [UTILITY] and [UP]
switches on the panel shown in Fig. 2 until
the screen as in Fig. 3 (Firmware update
mode start-up screen) appears.
If the simultaneous pressing of the [UTILITY] and [UP]
switches are too late (3 seconds after appearance of
Fig. 1 screen), the unit will start in standard mode. (In
that case, a screen as in Fig. 4 will appear.)
Press the [UTILITY] and [UP] switches within 3
seconds of the appearance of Fig. 1 screen.
3
A screen as in Fig. 3 is shown on the LCD
to indicate that fi rmware update mode is se-
lected.
If the Fig. 4 screen appears, the unit is in normal
start-up mode. Turn off the power and repeat from
the procedure 2.
FIRMWARE UPDATING PROCEDURES
(Fig. 1)
(Fig. 2)
4
The following message will be displayed to
indicate that the fi rmware updater fi le is be-
ing searched
Searching for the fi rmware updater …
5
When the fi rmware updater fi le is found, the
following message will appear.
MOTIF XS Updater ver ?.??.?
6
Situations for deletion of fl ash ROM will be
shown as follows.
Erase... ?? %
7
When the deletion is fi nished, writing to the
fl ash ROM will start and the situation will be
shown as follows.
Write … ?? %
8
When the writing is finished, the following
indication will be shown and verifying check
will start.
Verify
Firmware update mode start-up screen
(Fig. 3)
Normal mode start-up screen
(Fig. 4)
