Part names and functions En 11

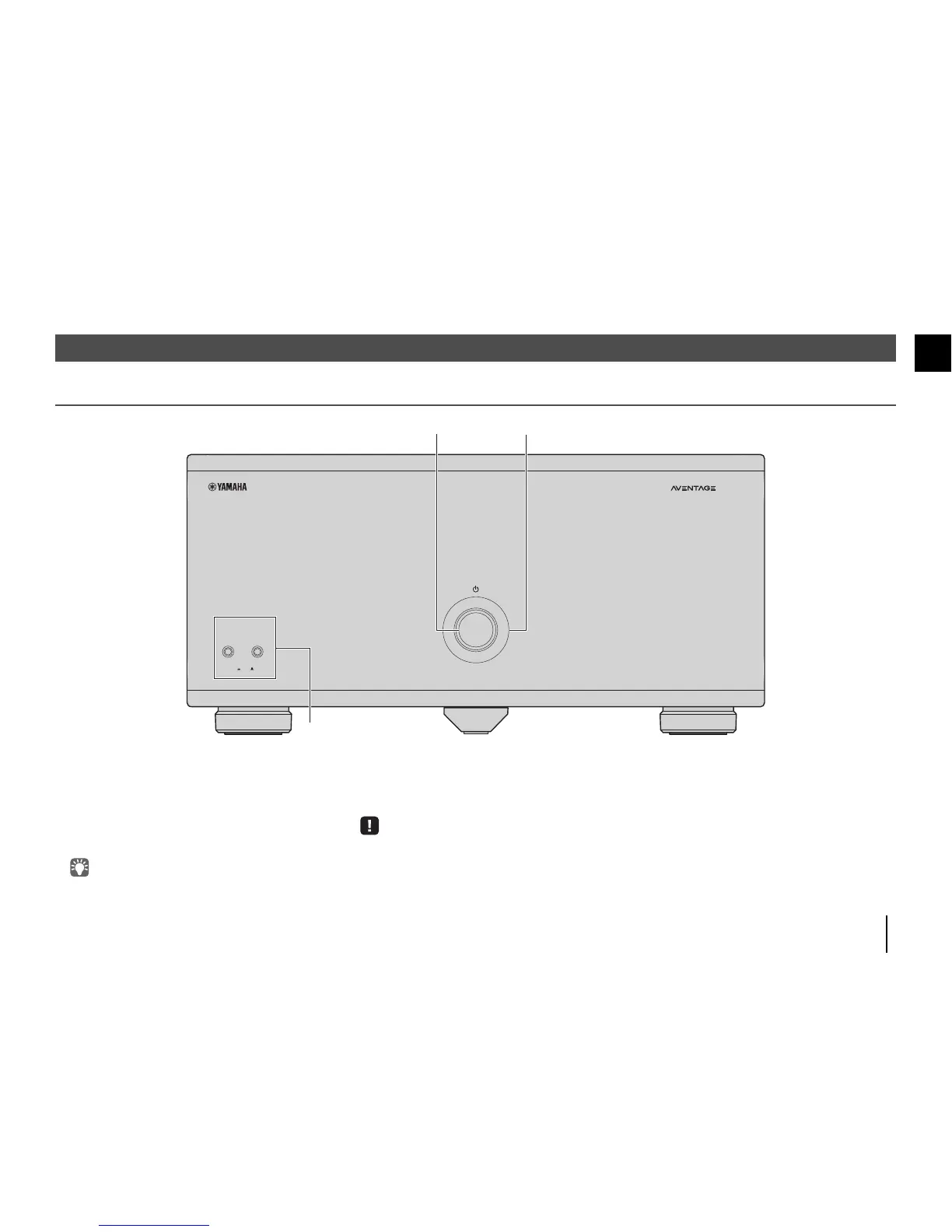

Front panel
1 z (power) key
Turns on/off (standby) the unit (p.16).
2 Power indicator
Lights up when the unit is turned on.
If the indicator blinks, the protection circuitry has been activated.
For details, see “Troubleshooting” (p.22).
• You can dim the power indicator (p.17).
3 SPEAKERS A/B keys
Turns on /off the speakers connected to the CH.3 A/B terminals
(p.20).
• Both the speakers (A and B) are turned off by default. Press the key
to turn on the speakers you want to use.
• When using two pairs of the speakers connected to the CH.3 A/B
terminals at the same time, be sure to use 8-ohm speakers and set
IMPEDANCE SELECTOR to the upper position (p.15).
