16 En Connections

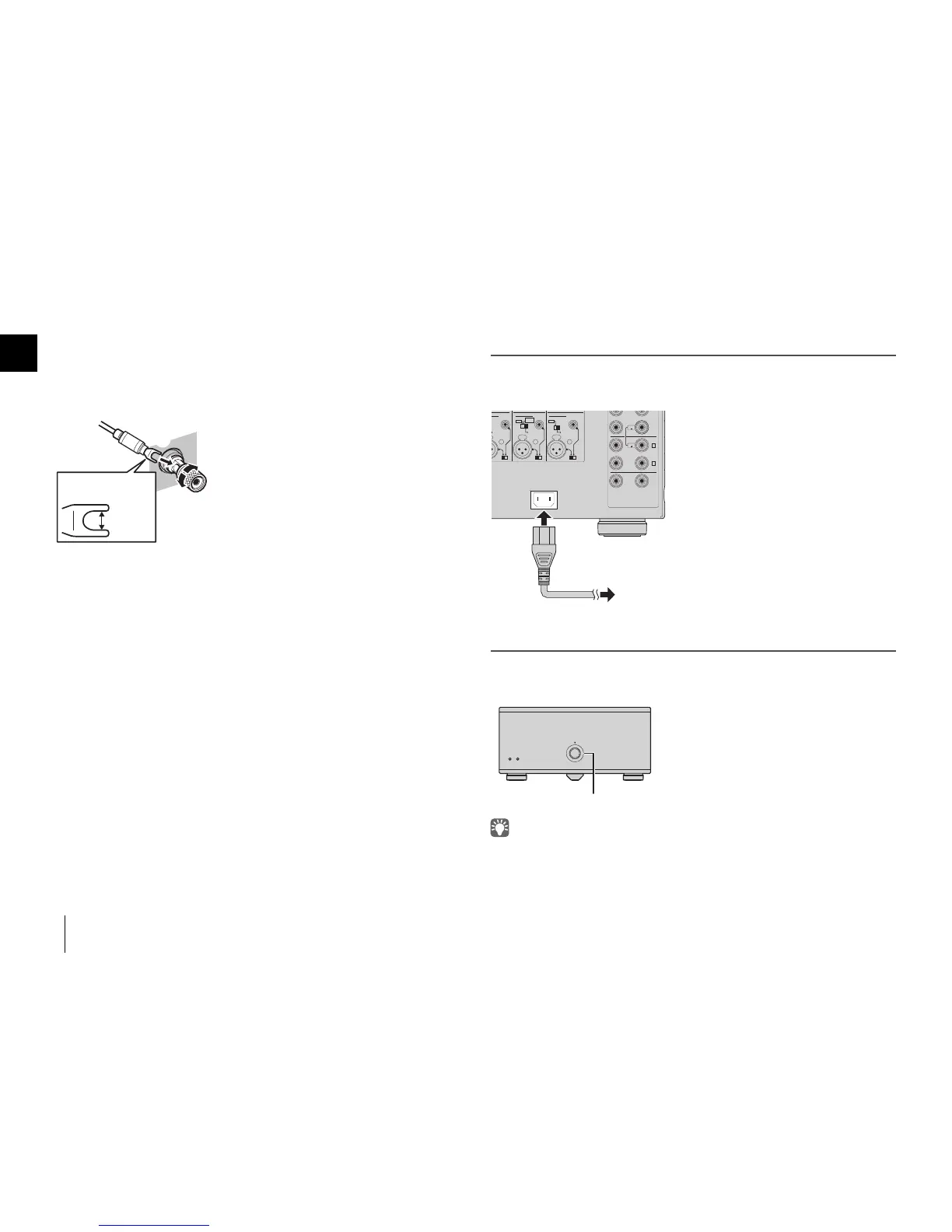

Using a Y-shaped lug connector
a Loosen the speaker terminal.
b Insert the Y-shaped lug connector into the groove between the knob and base part of the
terminal.
c Tighten the terminal.
Connecting the power cable
After all the connections and switch operations are complete, connect the supplied power cable
to the unit and then to an AC wall outlet.
Turning on/off the unit
Press z (power) to turn on/off the unit.
When the unit is turned on, the power indicator lights up.
• When an external device is connected to the TRIGGER IN jack, the unit is set to standby mode after z (power) is
pressed. If you turn on the external device, the unit automatically turns on by the trigger function (p.18).
aa
b
b
c
c
Use a Y-shaped lug with
the following size.
6.5 mm
(0.26 in)
or more
AC IN
L
CH.6 AMP ASSIGN
REAR
PRESENCE
SURROUND
BACK
SURROUND
L
CH.4
CH.2
FRONT
FRONT
PRESENCE
CH.3
CH.4CH.2 CH.6
CH.4 AMP ASSIGNASSIGN
FRONT
PRESENCE
L
SURROUND
BACK
A
B
CH.3
CH.3
BRIDGE
BRIDGE
( )
BRIDGE
( )
CH.5
To an AC wall outlet
The unit (rear)
z (power)
The unit (front)
