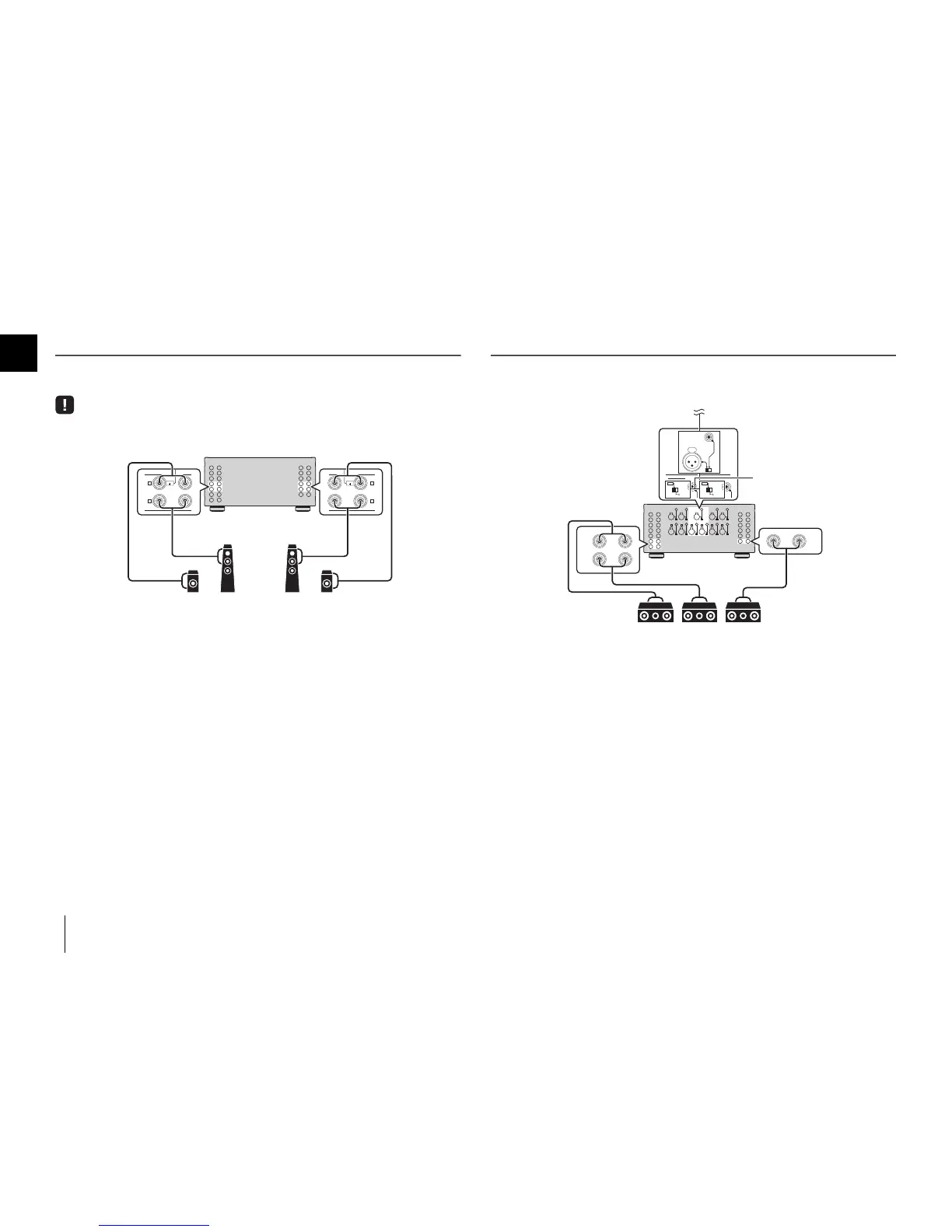

Using two pairs of front speakers (SPEAKERS A/B)
If you connect two pairs of front speakers to the CH.3 A/B terminals, you can switch the front
speakers to be used by pressing SPEAKERS A/B on the front panel of the unit.
• When using two pairs of the speakers connected to the CH.3 A/B terminals at the same time, be sure to use 8-ohm
speakers and set IMPEDANCE SELECTOR to the upper position (p.15).
Using three speakers for one channel (multi-speaker)
If you want to use three speakers for reproducing CH.1 audio signals (such as center channel
signals), change the CH. SELECTOR setting and connect the speakers to the CH.1 and CH.2 (L/R)
terminals.
FRONT
A
CH.3
BRIDGE
( )
B
FRONT
CH.3
A
B
BRIDGE
( )
The unit (rear)
CH.3 A/B (L)
terminals
CH.3 A/B (R)
terminals
SURROUND
BACK
CENTER
CH.2
CH.1
SURROUND
BACK
CH.2
CENTER
CH.1
CH.2
CH.2 AMP ASSIGNCH.2 AMP ASSIGN
CH.2
CH.1CH.1
The unit (rear)
Set CH. SELECTOR for
CH.2 (R) and CH.2 (L)
to “CH.1”
Input from pre-amplifier
CH.2 (R)
terminal
CH.2 (L)
terminal
CH.1
terminal
