Periodic maintenance and adjustment
6-15
6

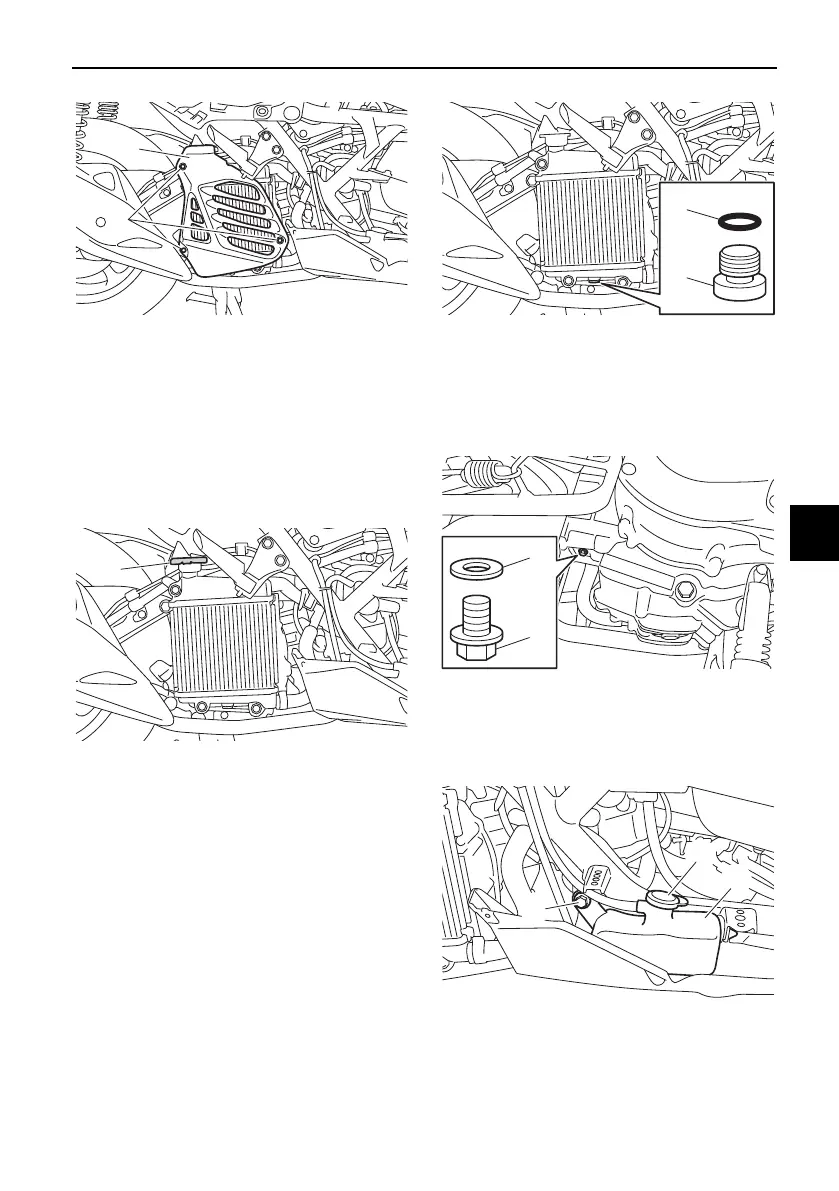

4. Place a container under the en-
gine to collect the used coolant.
5. Remove the radiator cap.
WARNING! Never attempt to re-
move the radiator cap when the
engine is hot.
[EWA10382]
6. Remove the coolant drain screw
and its O-ring to drain the cooling
system.
7. Remove the coolant drain bolt and
its gasket to drain the cooling sys-
tem.
8. Remove the coolant reservoir by
removing the bolt.
1. Radiator cover
2. Bolt
1. Radiator cap
1
2
1
1. Coolant drain screw
2. O-ring
1. Coolant drain bolt
2. Gasket
1. Coolant reservoir cap
2. Coolant reservoir
3. Bolt
1
2
1
2
1
2
3
