Yamaha PC9501N - IC Outside Figure（IC 外形図

PC9501N
2

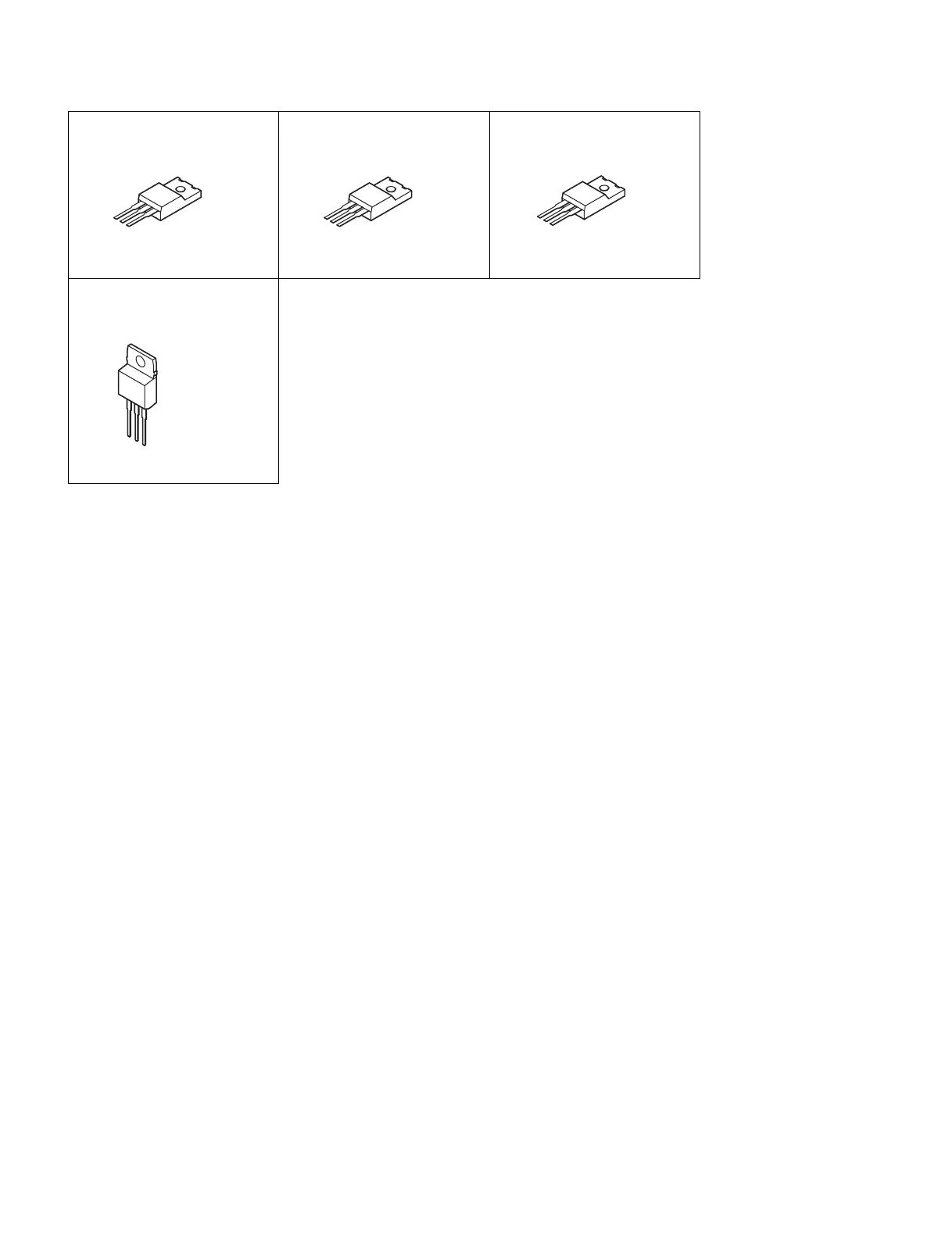

■ IC OUTSIDE FIGURE（IC 外形図）
• NJM7805FA (XJ607A00)
REGULATOR +5V
PS10: IC107
1: INPUT
2: GND
3: OUTPUT
1
2
3
• NJM7815FA (XD853A00)
REGULATOR +15V
PS10: IC105, IC108, IC109
1: INPUT
2: GND
3: OUTPUT
1
2
3
• NJM7915FA (XD854A00)
REGULATOR –15V
PS10: IC106
1
2
3
1: COMMON
2: INPUT
3: OUTPUT
• LM35DT (X0670A00)
Temperature Sensor
PA10: IC201
3
2
1
1: +V
S
2: GND
3: V
OUT
