INTRODUCTION
En 8

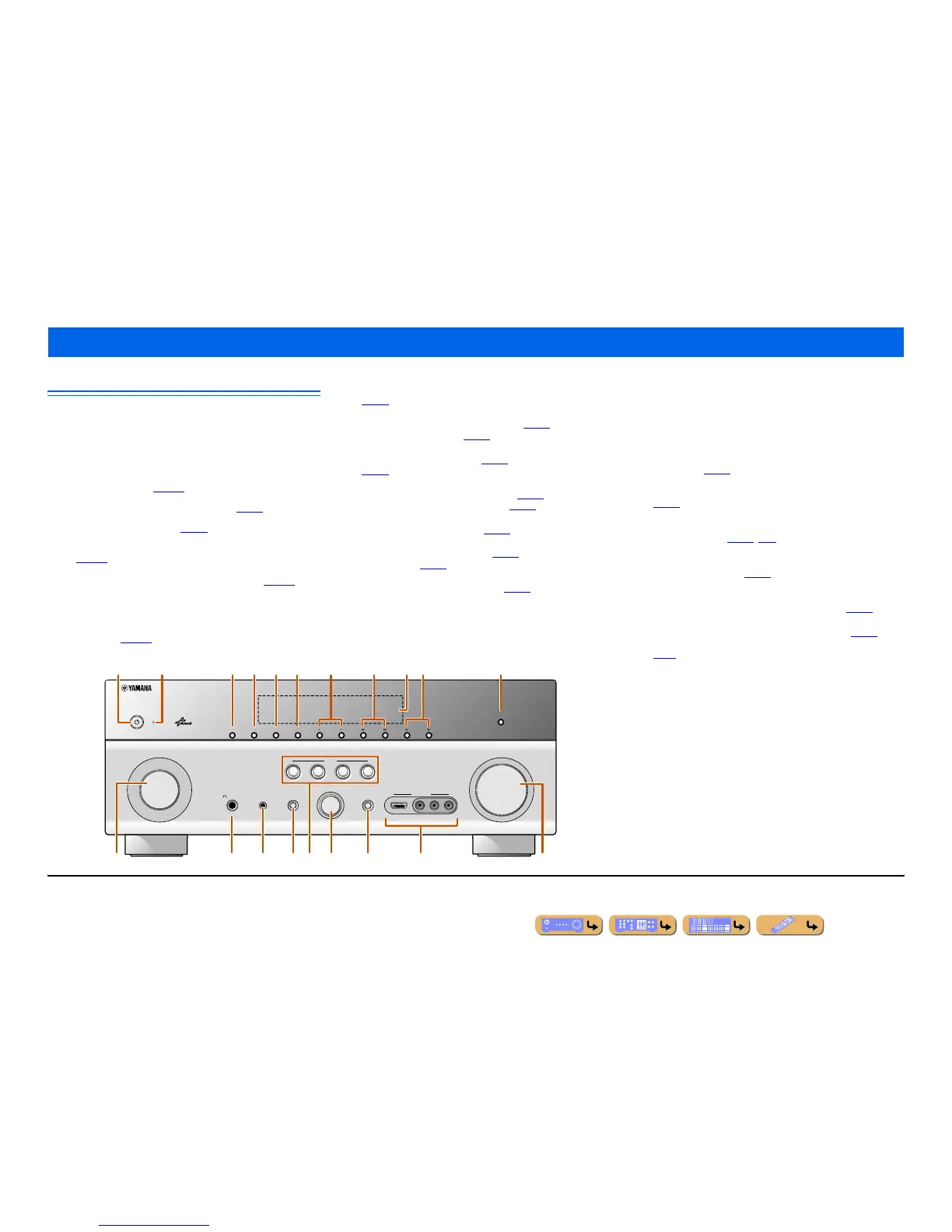

Front panel
a MAIN ZONE A (Power)
Switches this unit between on and standby mode.
b HDMI Through/iPod Charge indicator
Lights up in any of the following cases while the unit is in standby
mode.
• When the Standby Through function is enabled and audio/video from
an external component connected with HDMI is output to a TV
during standby mode (☞
p. 107).
• When an iPod/iPhone, which is placed in the Universal Dock for iPod,
is charging while the unit is in standby mode (☞
p. 81).
This indicator also lights up when the Yamaha Wireless System for
iPod is connected to this unit (☞
p. 81).
• When the Network Standby function is enabled. This function allows
this unit to be turned on by receiving a command over a network
(☞
p. 108).
c ZONE2
Switches to enable/disable the audio output to Zone2 (☞
p. 126).
d ZONE CONTROL
Switches to Zone2 operation mode. This unit, or its remote control,
can be used to select input sources or adjust volume for an external
amplifier in another room or the built-in amplifier for speakers in
another room (☞
p. 126).
e INFO
Changes the information displayed on the front panel display
(☞
p. 10).
f MEMORY
Registers FM/AM stations as preset stations (☞
p. 57) or SIRIUS
channels as preset channels (☞
p. 63). J1
g PRESET j / i
Selects an FM/AM preset station (☞
p. 59) or a SIRIUS preset channel
(☞
p. 64). J1
h FM/AM (CATEGORY l / h)
Sets the FM/AM tuner band to FM or AM (☞
p. 57). J1
Selects a channel category for a SIRIUS (☞
p. 63).
i Front panel display
Displays information on this unit (☞
p. 10).
j TUNING/CH jj / ii
Changes FM/AM tuner frequencies (☞
p. 57) or SIRIUS Satellite
Radio channels (☞
p. 63). J1
k PURE DIRECT
Switches this unit to Pure Direct mode (☞
p. 47).
l INPUT selector
Selects an input source from which to playback. Rotate this selector to
cycle through the input sources in order.
m PHONES jack
For plugging headphones in. Sound effects applied during playback
can also be heard through the headphones.
n YPAO MIC jack
Connect the supplied YPAO microphone and adjust the speaker balance
automatically (☞
p. 34).
o TONE CONTROL
Adjusts high-frequency/low-frequency output of speakers/headphones
(☞
p. 43).
p SCENE
Switches the input source, the sound program, and the HDMI OUT
with a single button (☞
p. 44, p. 90). When this unit is in standby
mode, press this key to switch on.
q PROGRAM selector
Selects a sound program (☞
p. 44). Rotate this selector to cycle
through sound programs.
r STRAIGHT
Changes a sound program to straight decoding mode (☞
p. 45).
s VIDEO AUX jacks
For connecting game consoles to this unit temporarily (☞
p. 29).
Attach the supplied VIDEO AUX input cover when not using this jack
(☞
p. 7).
t VOLUME
Adjusts the volume level.
Part names and functions
VIDEO
AUX
PHONES
YPAO MIC
SILENT
CINEMA
TONE
CONTROL
STRAIGHT
VOLUM E
TV
BD
DVD
CD
RADIO
INPUT
PROGRAM
SCENE
VIDEO
AUDIO
HDMI IN
L
R
INFO
ZONE
CONTROL
ZONE2
MAIN ZONE
MEMORY
PRESET
FM AM
CATEGORY
TUNING/CH
PURE DIRECT
rm n q
a
olts
ic f g ked h jb
p
J
1 : Usable when you have selected TUNER or SIRIUS input.
